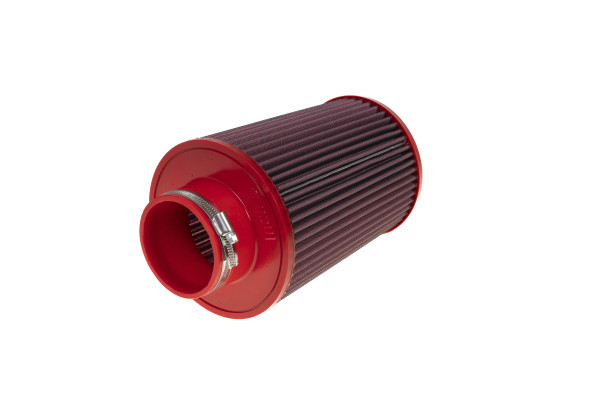

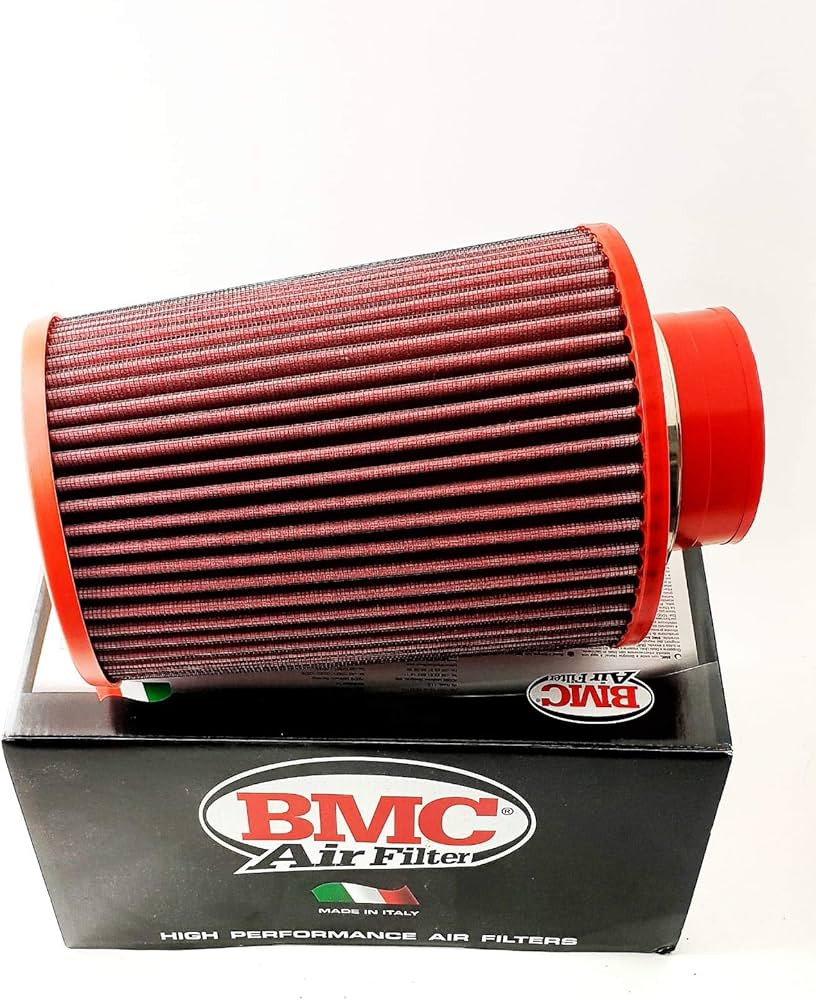

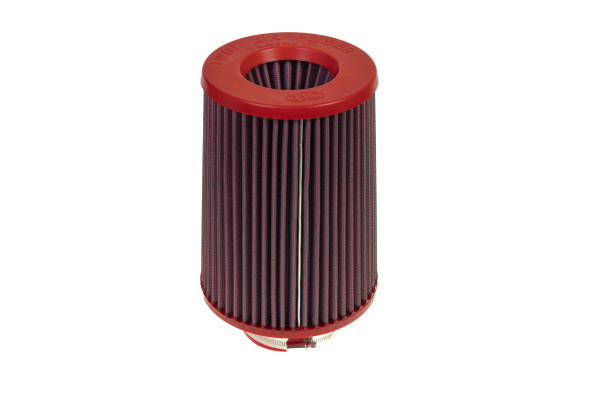

BMC Twin Air Conical Air Filter, Connection 76mm, Length 200mm

Air filter 76mm connection. (3")

Length: 200mm total length 247mm

Top Diameter: 135mm

Bottom Diameter: 152mm

BMC TwinAir Air Filter

BMC TwinAir Air Filter

BMC air filters are a world-leading player in the market for air filters for vehicles, suitable for both street and racing at the highest level.

BMC filters are designed and developed to enable better flow than the original and in some cases perform less than half the pressure drop compared to an original paper filter. The filters thus enable better flow together with better filtration and thus increased protection for the engine!

The filters are delivered oiled and are ready to use immediately upon delivery. They are designed with a maximum air filter area, with inlets both in the middle of the cone and on the outside of the filter, and are suitable for all car and motorcycle applications and can be used in conjunction with air mass meters.

BMC air filters are made of a cotton material that allows good permeability while the combination of several oiled cotton layers prevents contaminants and dirt in sizes from 7 microns and up. Synthetic filters can normally prevent contaminants from 80 microns and up. With today's technology, there is no better filter system available!

The red rubber is specially designed to withstand heat, shock and vibration. All BMC filters are washable. We offer cleaning agents and oil, especially suitable for this purpose.

Choosing a filter:

The dimensions of the respective filter are according to the drawing and the data table.

The filter's rubber connection is mounted on a pipe or flange with the same/close outer diameter as the filter's inner diameter.

Choose a filter with the highest possible airflow while still allowing for correct installation*. Airflows are shown in the diagram and in the data table.

* Most engines perform best with the lowest possible restriction on the intake side. Choose a filter with the highest possible airflow while still allowing the coldest possible air to be supplied. The routing of the pipes and hoses from the air filter to the engine is very important. Use as few sharp bends as possible to achieve a low pressure drop and uniform airflow to your intake or turbo inlet. We have a wide range of aluminum pipes and silicone hoses to build this.

.
