Pressure and temperature sensor (10bar / 140 C) BOSCH
Artnr: 2165
MPN: 0261230482
Stock Status: 4-5 Day delivery time
4-5 Day delivery time
Description

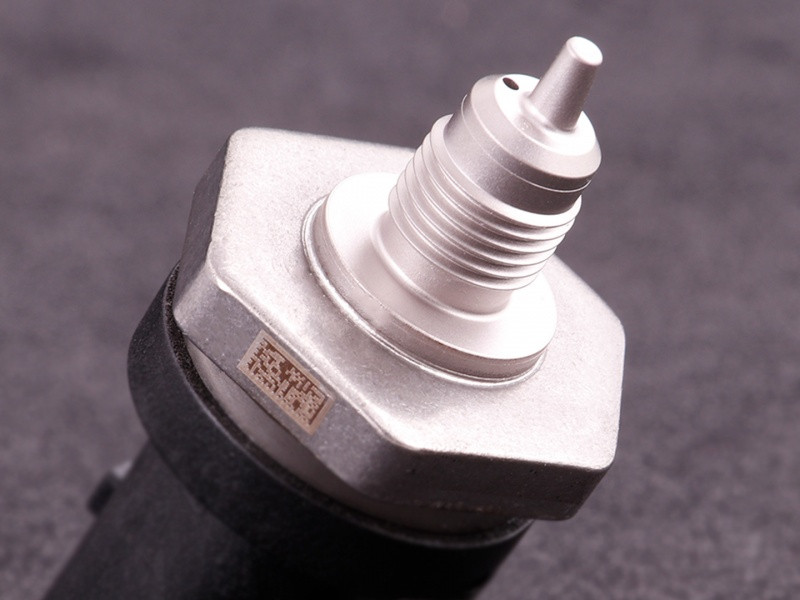

M10x1.0 thread.
-- pin2: signal out (0.5V = 0bar, 4.5V = 10bar)
-- pin3: +5V supply
-- pin4: Sensor GND
-- pin5: Temperature signal out (44864ohm = -40 deg C, 72ohm = 140 deg C)
Used in the following way with MaxxECU:
The pressure output should be connected to an AIN (0-5V) input.
The temperature output should be connected to an AIN (TEMP) input that has a built-in +5V pullup.
Bosch motorsport 0261230482
