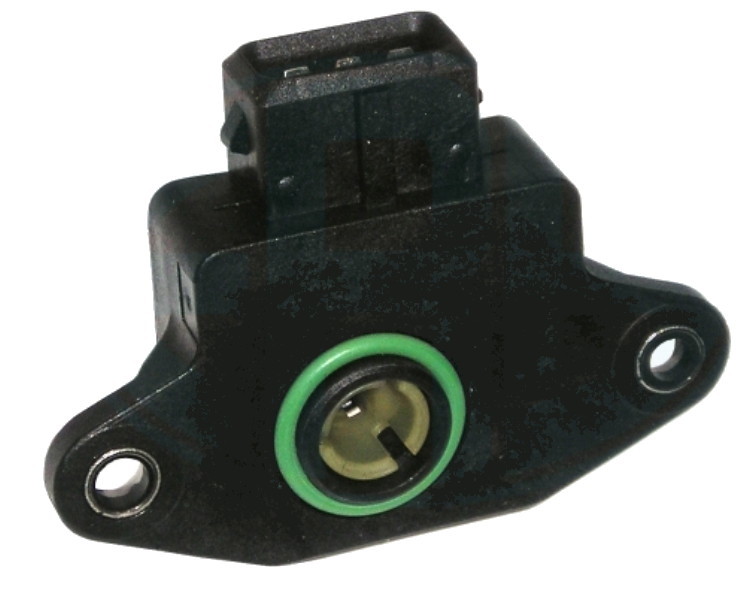

TPS throttle potentiometer Volvo etc. 0280122001

Facet (Bosch Copy)  throttle potentiometer / TPS sensor that is installed on many cars, see list below.
Facet part number 495002
Bosch number 0280122001


Perfect for our throttle bodies, TWM etc. And if you drive with Megasquirt, Link or other aftermarket spray.

Electrical connection:
Pin 1: GND
Pin 2: +5v
Pin 3: Signal
C/C dimensions: 55mm
Throttle position sensor, most used. Jetronic connector. Drawing Useful electrical angle range degrees = 86°. Useful mechanical angle range is 86°. Angle between internal stops (must not be reached) 95°. Total resistance (term. 1-2) kΩ 2 ± 20 %.

See also the corresponding contact for the sensor.
Search for: 103016 Link connector 3 pole female

Replaces the following original numbers: ALFA ROMEO
60549359
7637025
9946862
CITROËN
1628 L1
72 408 124
96 038 938
DAF
1292636
FERRARI
142434
FIAT
0000009946
0000009946
8620007637
HYUNDAI
35170 22001
35170 22010
IVECO
0000008029510
8029510
KIA
0K011 18911
LANCIA
7637025
OPEL
00826924
8 26 924
90323839
PEUGEOT
1628 L1
72 408 124
96 038 938
PORSCHE
944 606 116 00
RENAULT
77 01 047 921
SAAB
08857195
88 57 195
885 719
VAUXHALL
90323839
VOLVO
1336385
