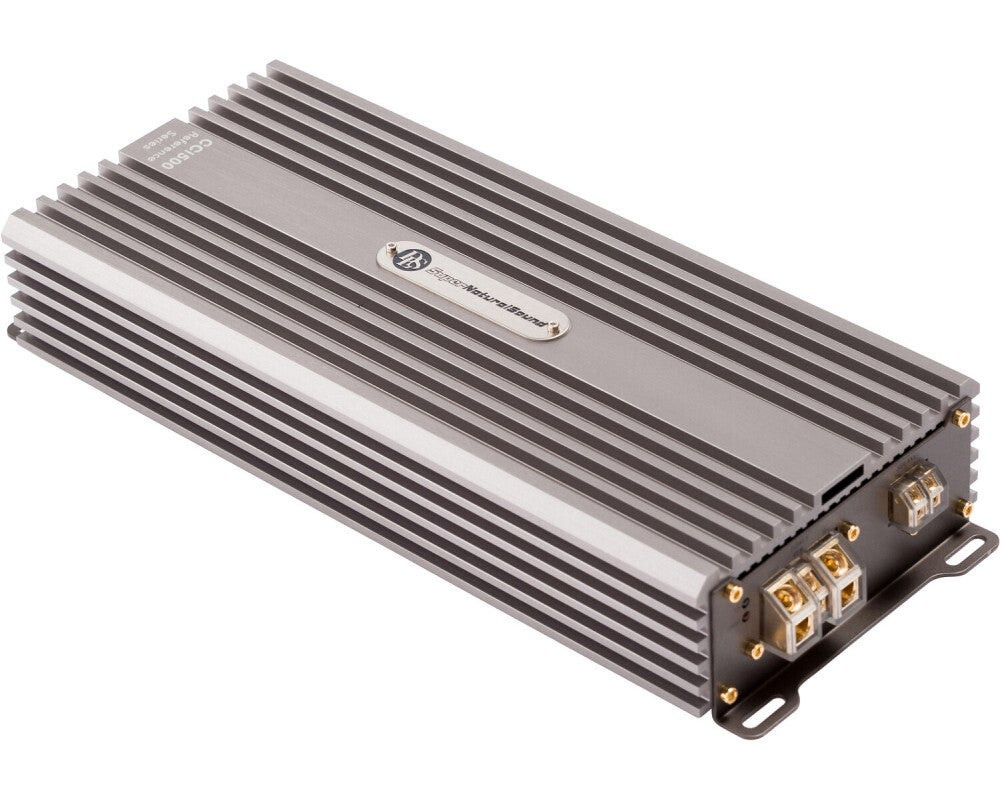

DLS CCi500-40 Anniversary Model

The DLS CCi500 is a mono power amplifier designed and fine-tuned by Gordon Taylor in close collaboration with DLS! The power amplifier shares the unique intelligent cooling of the CCi series in a small and compact housing. The CCi500 is specifically developed to drive woofers or subwoofers with ease. This is a power amplifier that produces more power - and less heat. Something you can hear and above all: you can feel it!

Class-D amplifier

550W RMS @ 1 Ohm

Frequency range: 10-2,500 Hz

High-level inputs

Subsonic: 30 Hz

Damping factor >140

Dimensions: 129 x 304 x 51 mm

DLS - the experts in great sound

The advanced Class D amplification in the CCi500 produces a lot of pure power and gives you perfect control over the lower frequencies. For those of you who are thinking of installing a subwoofer in your car, but intend to keep your original stereo, the CCi500 has been equipped with DLS excellent high- to low-level converters (with autostart). Give your car the sound it deserves!

More power, less heat

With power comes heat, something DLS has come up with interesting solutions for. The clever design of the heat sink provides increased heat dissipation to the outside. On the inside of the stage there is a large area with small fins that collect the heat from the air and ventilate it through the circuit board and then release it through thin slots in the side panels.

Specifications

550W RMS @ 1 Ohm

370W RMS @ 2 Ohm

200W RMS @ 4 Ohm

Subsonic: 30 Hz

Low pass filter: 35 - 250 Hz (12 or 24 dB)

High level input
