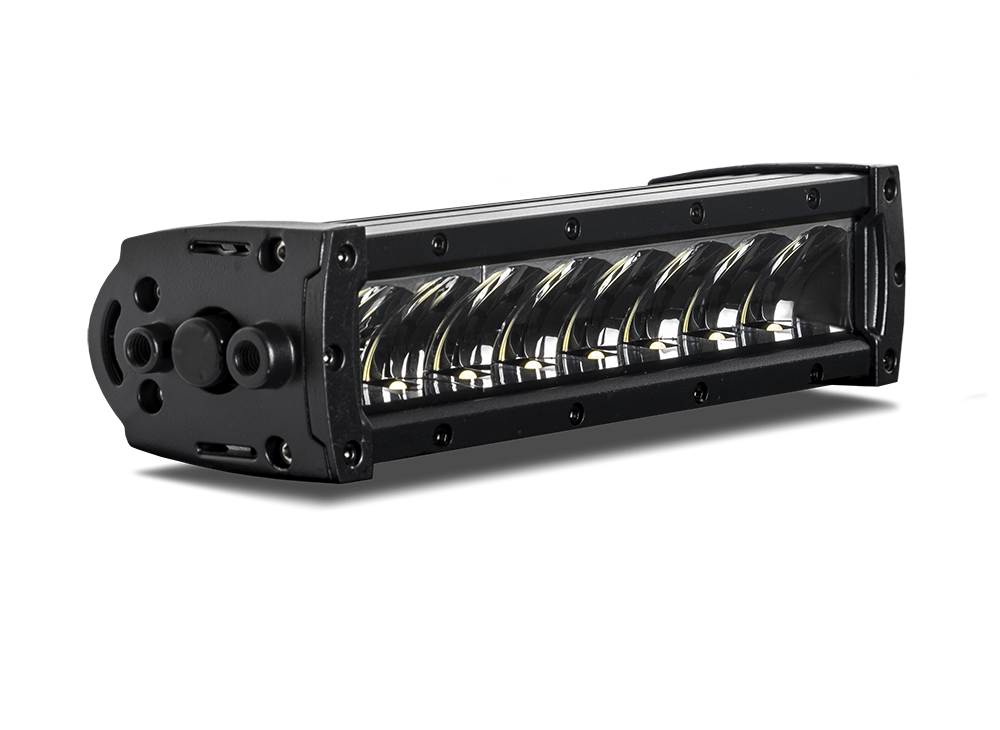

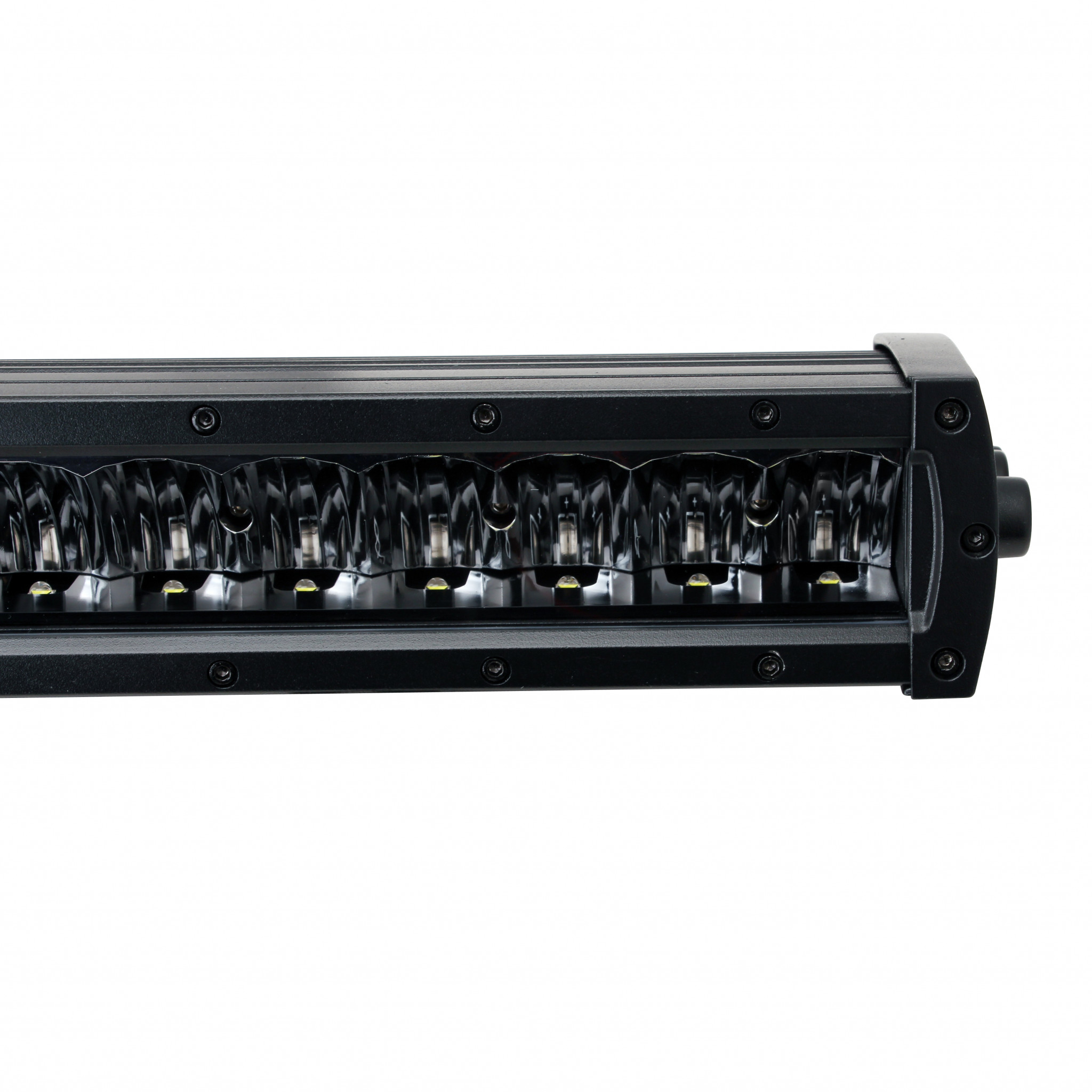

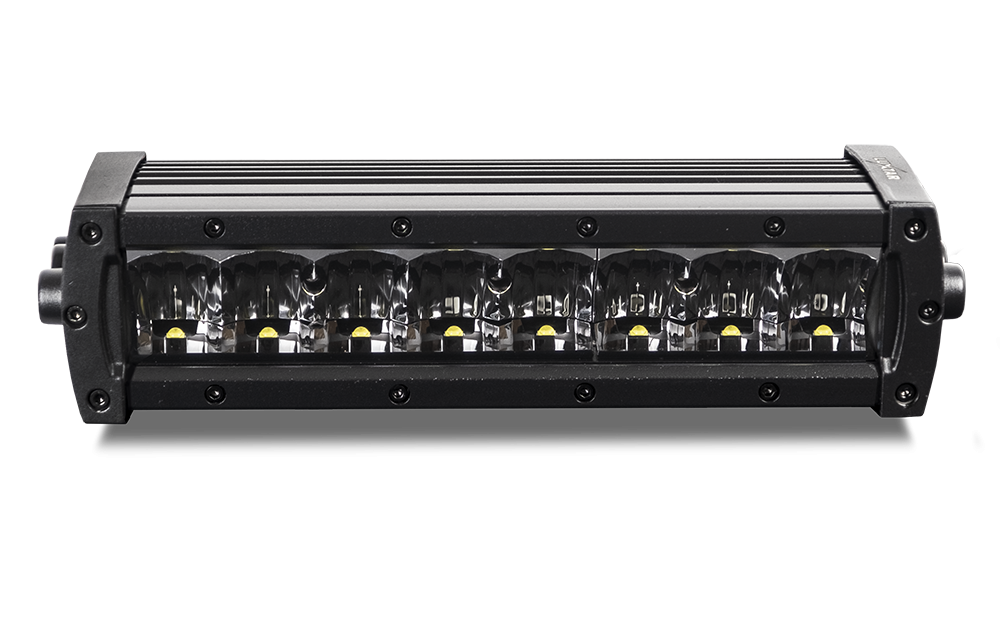

10" 80W LUXTAR® Led ramp X8 Black Edition Driving / Combo

The Luxtar X Series is designed with side-mounted diode lamps. This creates a unique look that enhances performance. The Black Edition offers a discreet design.

The Luxtar X8 Black Edition is ideal for those who want the best of both worlds: style and performance. The Luxtar X8 with its size is also perfect for mounting in the grill of your vehicle.

Theoretical values of the Led ramp

80 W & 8,000 Lumen

The Luxtar Led ramp X 8 has a theoretical value of 80 W and 8,000 lumens. When comparing other options on the market, you should keep these factors in mind.

Actual Values of the LED Ramp

58.8 W & 3,350 Lumen

If you compare the actual output value of 58.8 watts & 3,350 lumens, it can be compared with 3 halogens which with 55W have a light value of approximately 1,000 Lumen (+-200lm).

Size

26cm

Volt

10-32

Areas of use

Passenger car | Commercial vehicle | Transport truck | Truck | Pickup

Choice of reflector / light pattern on LED Ramp

Spot & Driving

Spot: Optimized for maximum range, narrow light pattern

Driving: Optimized for wide light pattern with reduced range

Spot - Suitable for those who prioritize range of light or at higher speeds where the focus is naturally on longer distances.

Driving - Also called long-range light pattern is suitable for those who are looking for a wide light for better visibility to the sides.

Specifications

Model: Luxtar® Ledramp X8 Black Edition

LED: 8x 10W Cree XML2

Theoretical lumens: 8,000

Actual lumens: 4,102

Volts: 10-32V, multivolt

Power consumption: 12V/11A | 24V/5.6A

Power: 58.8W

Cable: 80 cm, Deutsch (DT) connector

Mount: Side leg x2 Weight: 1.40 kg

Moisture protection: IP68

E-marked: No

CE | EMC | RoHS

Warranty 3 years

Offer! Do you need side mounts for the ramp? Then add them and use the discount code SIDE FASTEN at checkout.

LUXTAR® X-Series Side Mount
