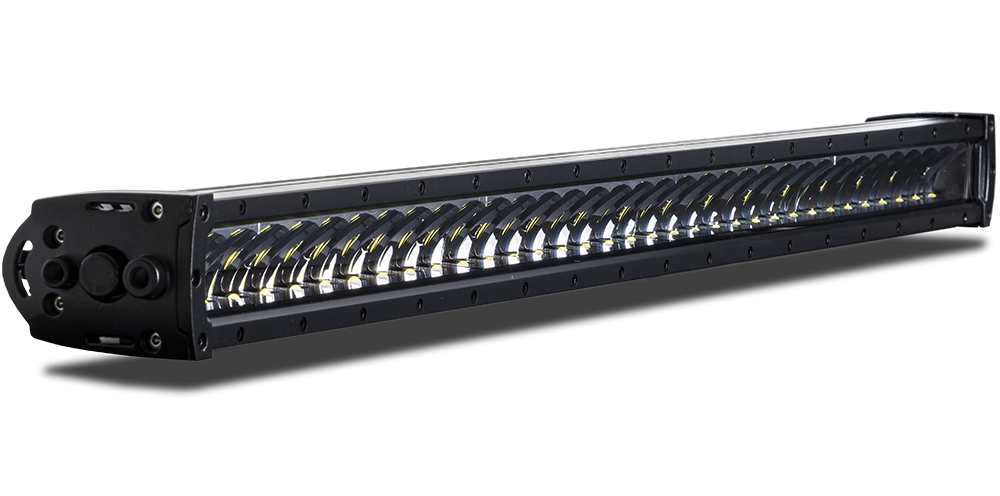

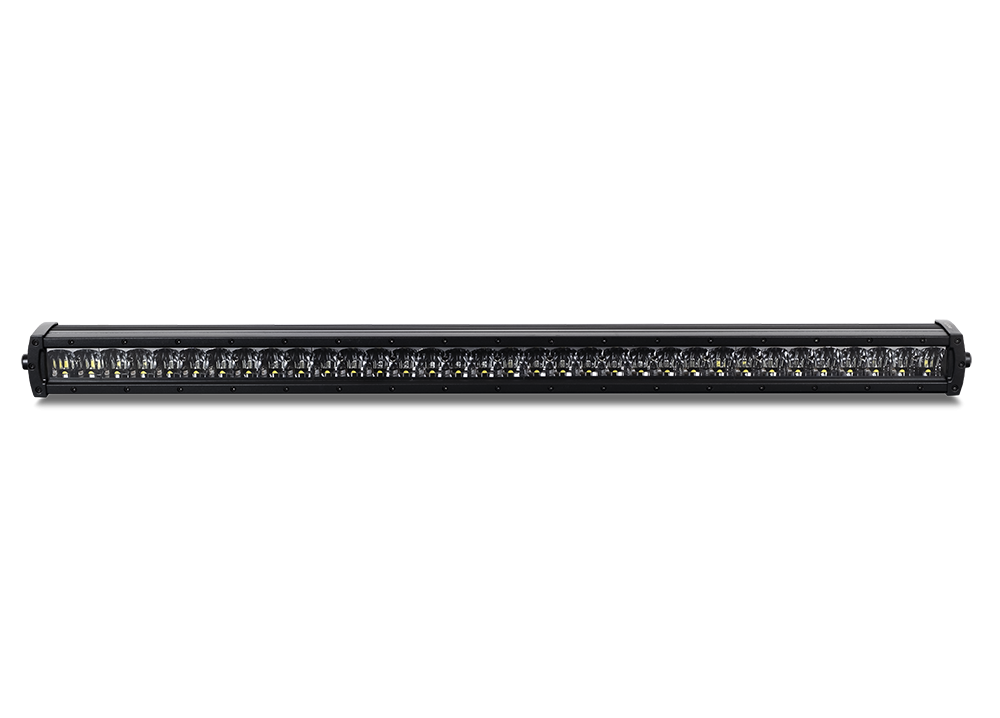

43" 400W LUXTAR® Led ramp X40 Black Edition Driving / Combo
The Luxtar® X40 Black Edition has an actual light intensity of 16,768 lumens and is 109 cm, which results in an incredible light image and can be compared to almost 17 halogens at 55w | 1,000 Lumen (+-200 lm).
Description
Luxtar® X-series LED ramps have a unique design with side-mounted diode lamps that provide improved performance. The Black Edition offers both style and performance.
The values usually specified are the theoretical values, which for the X40 is 400W | 40,000 Lumen.
Theoretical values of LED ramps
400 W & 40,000 Lumen
The Luxtar Led ramp X40 has a theoretical value of 400 W and 40,000 lumens. When comparing other options on the market, you should keep these factors in mind.
Actual Values of LED Ramps
400 W & 16,768 Lumens
Size
109cm
Volt
10-32
Applications
Commercial vehicles | Trucks | Pickups
Choice of reflector / light pattern on LED Ramp
Spot & Driving
Spot: Optimized for maximum range, narrow light pattern
Driving: Optimized for wide light pattern with reduced range
Spot - Suitable for those who prioritize range of light or at higher speeds where the focus is naturally on longer distances.
Driving - Also called long-range light pattern is suitable for those who are looking for a wide light for better visibility to the sides.
Specifications
Model: Luxtar® Ledramp X40 Black Edition

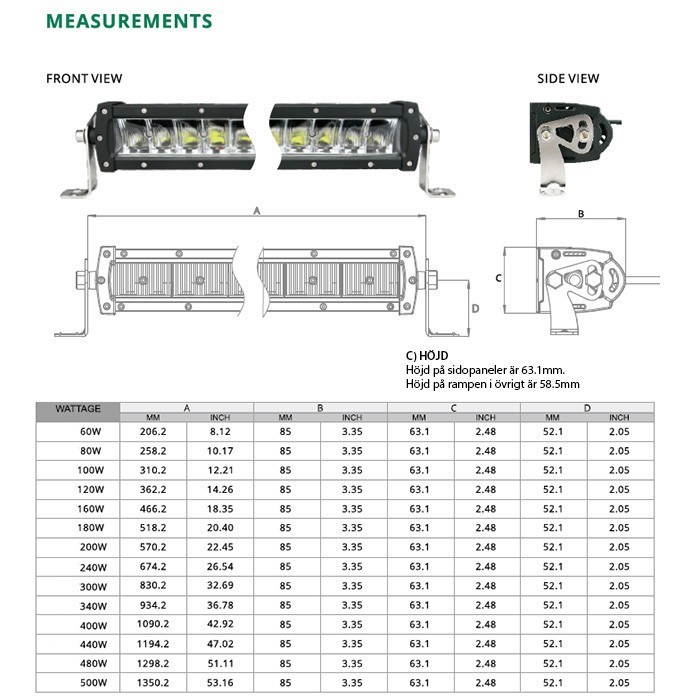

Dimensions: 43” / 1090x63x85 mm
LED: 40x 10W Cree XML2
Theoretical lumens: 40,000
Actual lumens: 16,748
Voltage: 10-32V, multivolt
Power consumption: 12V/24.3A, 24V/12.5A
Power: 291.6W

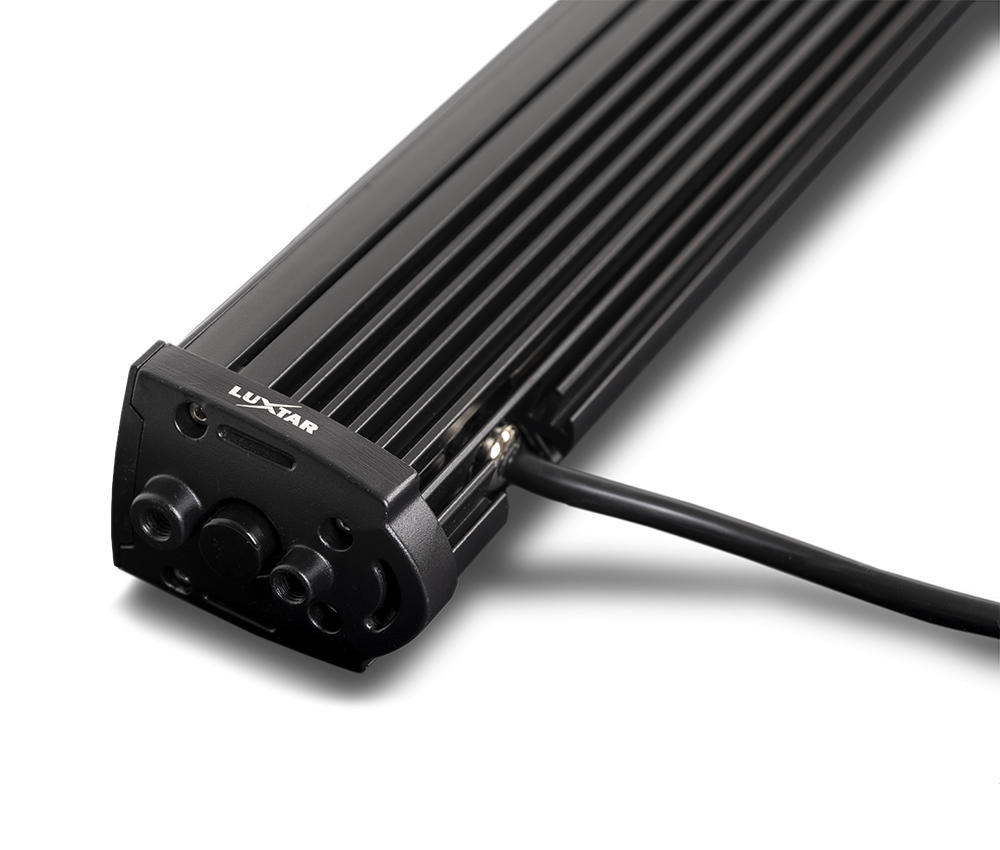

Cable: 80cm

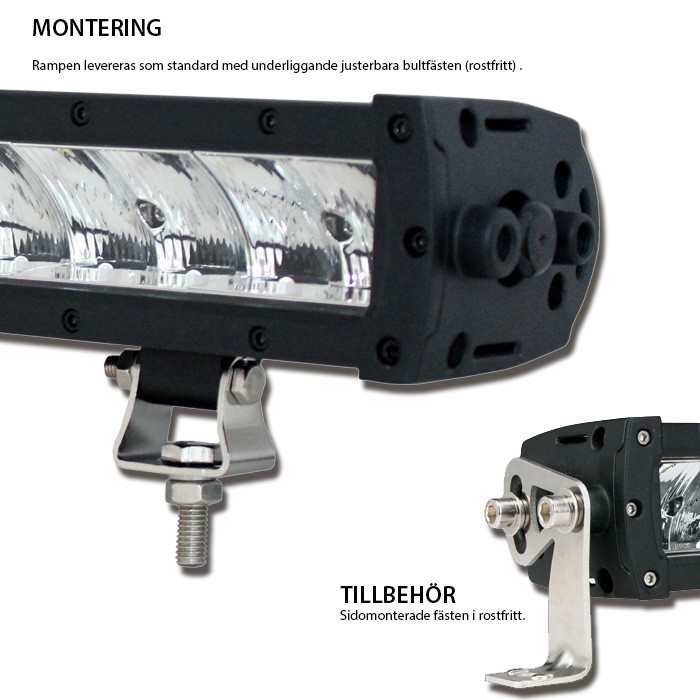

Mount: Bolt mount x5
Weight:
Moisture protection: IP68
E-marked: No (see x10)
CE | EMC | RoHS
Warranty 3 years
