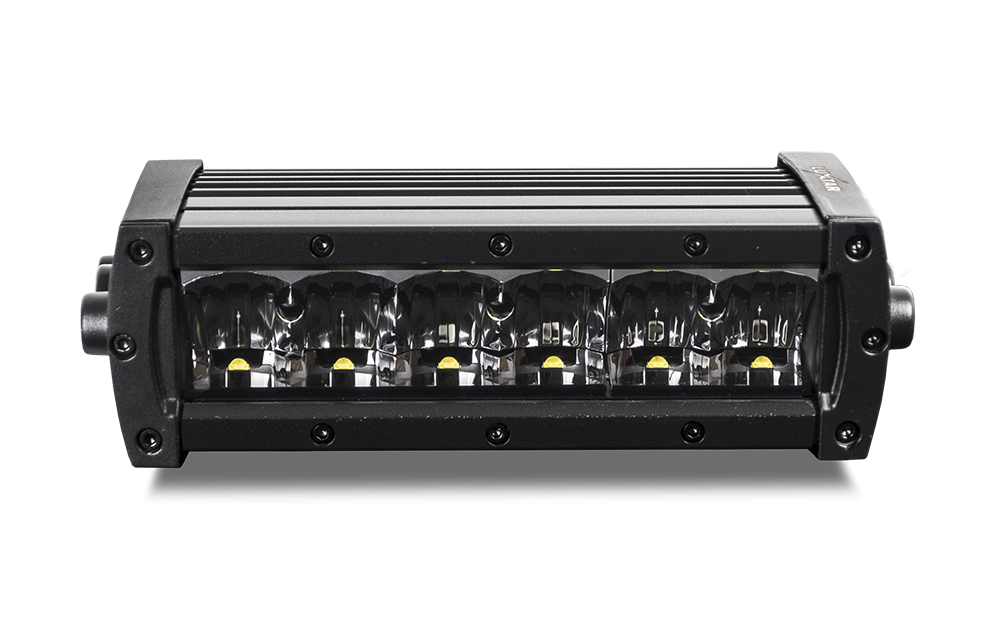

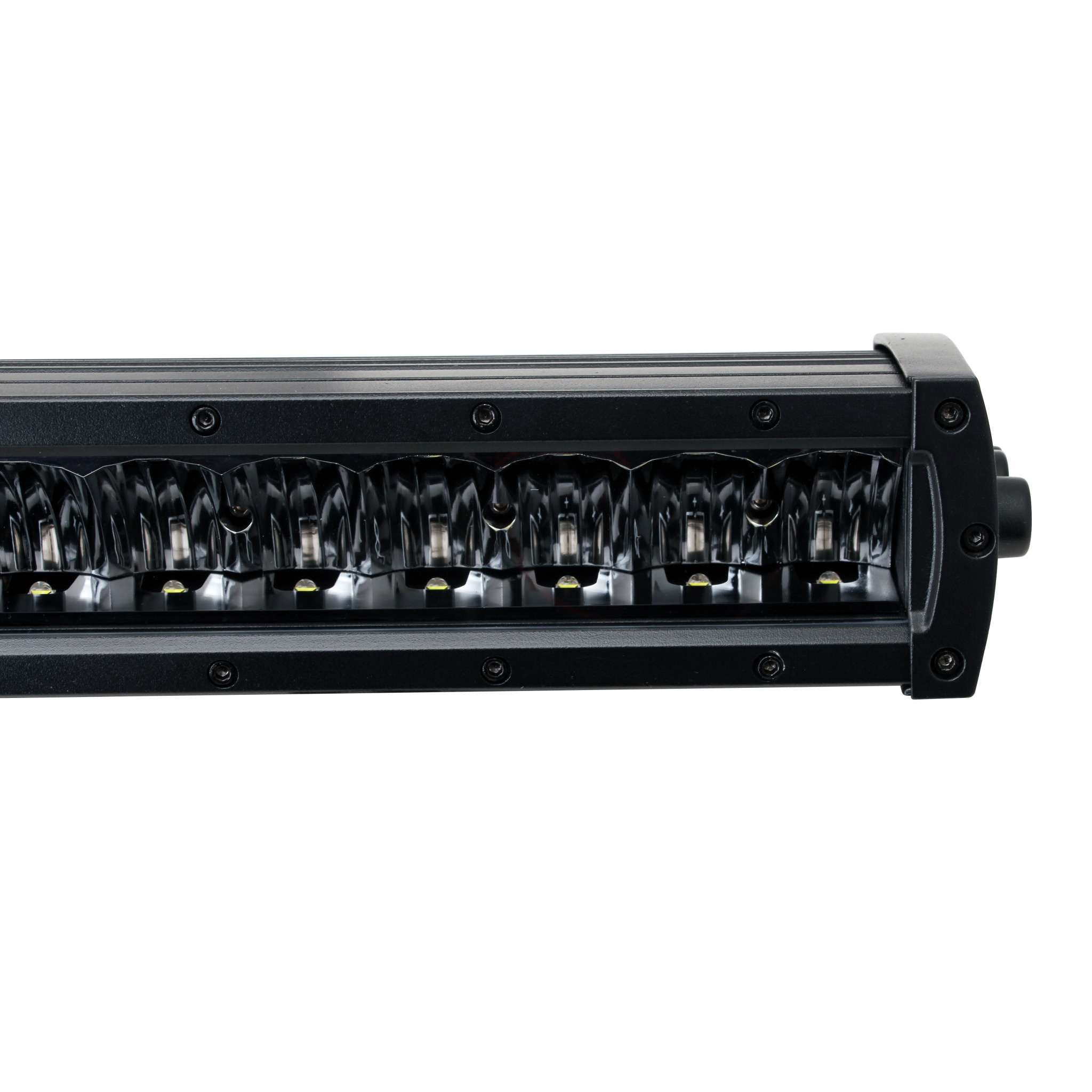

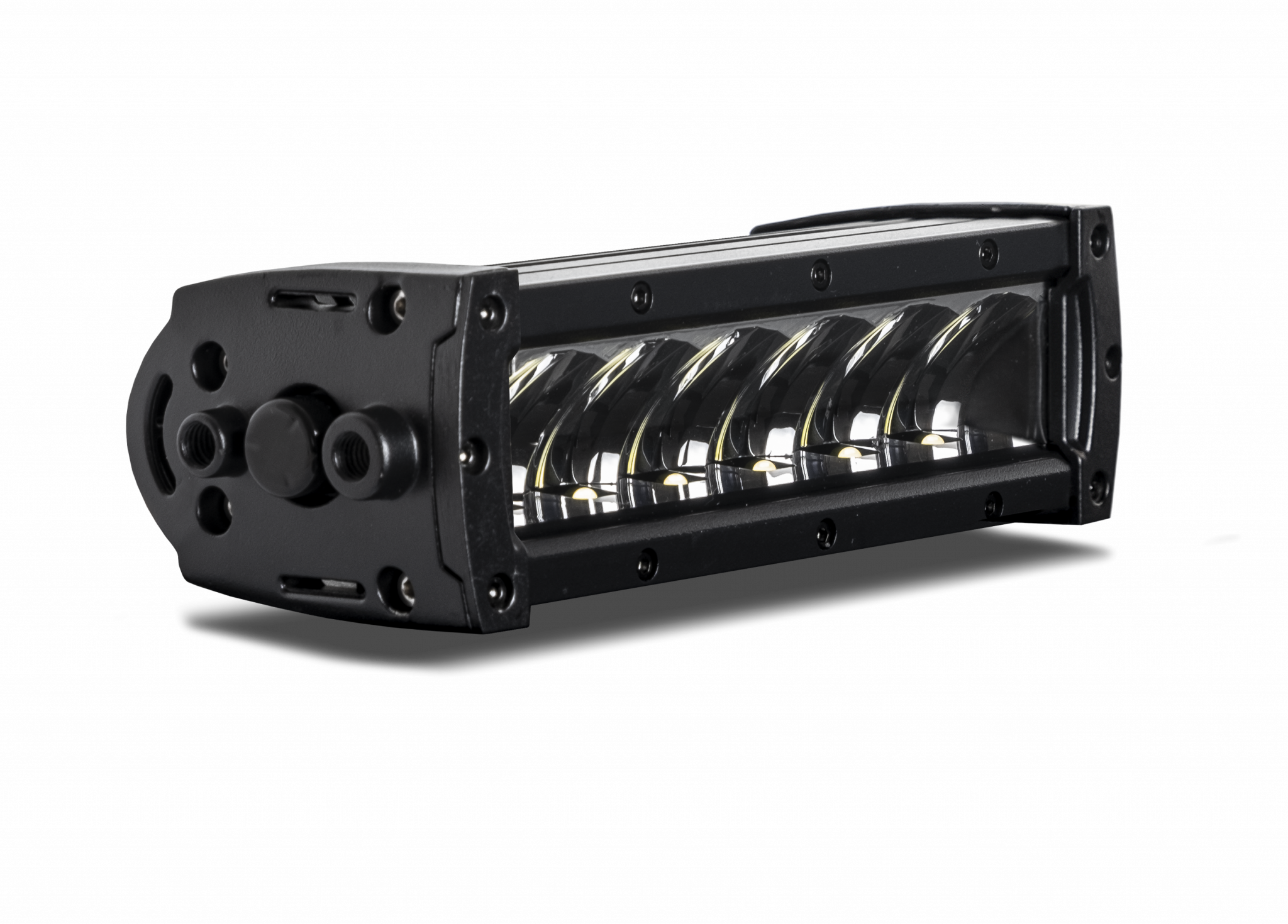

8" 60W LUXTAR® Led ramp X6 Black Edition Driving / Combo
Luxtar® X6 Black Edition has a light intensity of 2,512 lumens and is 21 cm, in value this can be compared to about 2.5 halogen lamps of 55w | 1,000 Lumen (+-200 lm).
Description
Luxtar® X-series LED ramps feature a unique design with side-mounted diode lamps that provide improved performance. The Black Edition is ideal for those who want the best of both worlds: style and performance.
Theoretical values of LED ramp
60 W & 6,000 Lumen
The Luxtar Led ramp X6 has a theoretical value of 60 W and 60,000 lumens. When comparing other options on the market, you should keep these factors in mind.
Actual Values of LED Ramp
43 W & 2,512 Lumen
Actual output value of 43 watts & 2,512 lumens can be compared to the brightness of 2.5 halogen (55W has a light value of approximately 1,000 lumens +-200lm).
Size
21cm
Volt
10-32
Areas of use
Car | ATV | Snowmobile / Snowmobile
Choice of reflector / light pattern on LED Ramp
Spot & Driving
Spot: Optimized for maximum range, narrow light pattern
Driving: Optimized for wide light pattern with reduced range
Spot - Suitable for those who prioritize range of the light or at higher speeds where the focus naturally lies at longer distances.
Driving - Also called remote light image is suitable for those looking for a wide light for better visibility on the sides.
Specifications
Model: Luxtar® Ledramp X6 Black Edition
LED: 6x 10W Cree XML2
Theoretical lumens: 6,000
Actual lumens: 2,512
Volts: 10-32V, multivolt
Power consumption: 12V/11A | 24V/5.6A
Power: 43.2W
Cable: 80 cm, Deutsch (DT) connector
Mount: Side leg x2
Weight: 1.15 kg
Moisture protection: IP68
Dimensions: 8" / 206x63x85 mm
E-marked: No
Warranty 3 years
CE | EMC | RoHS
