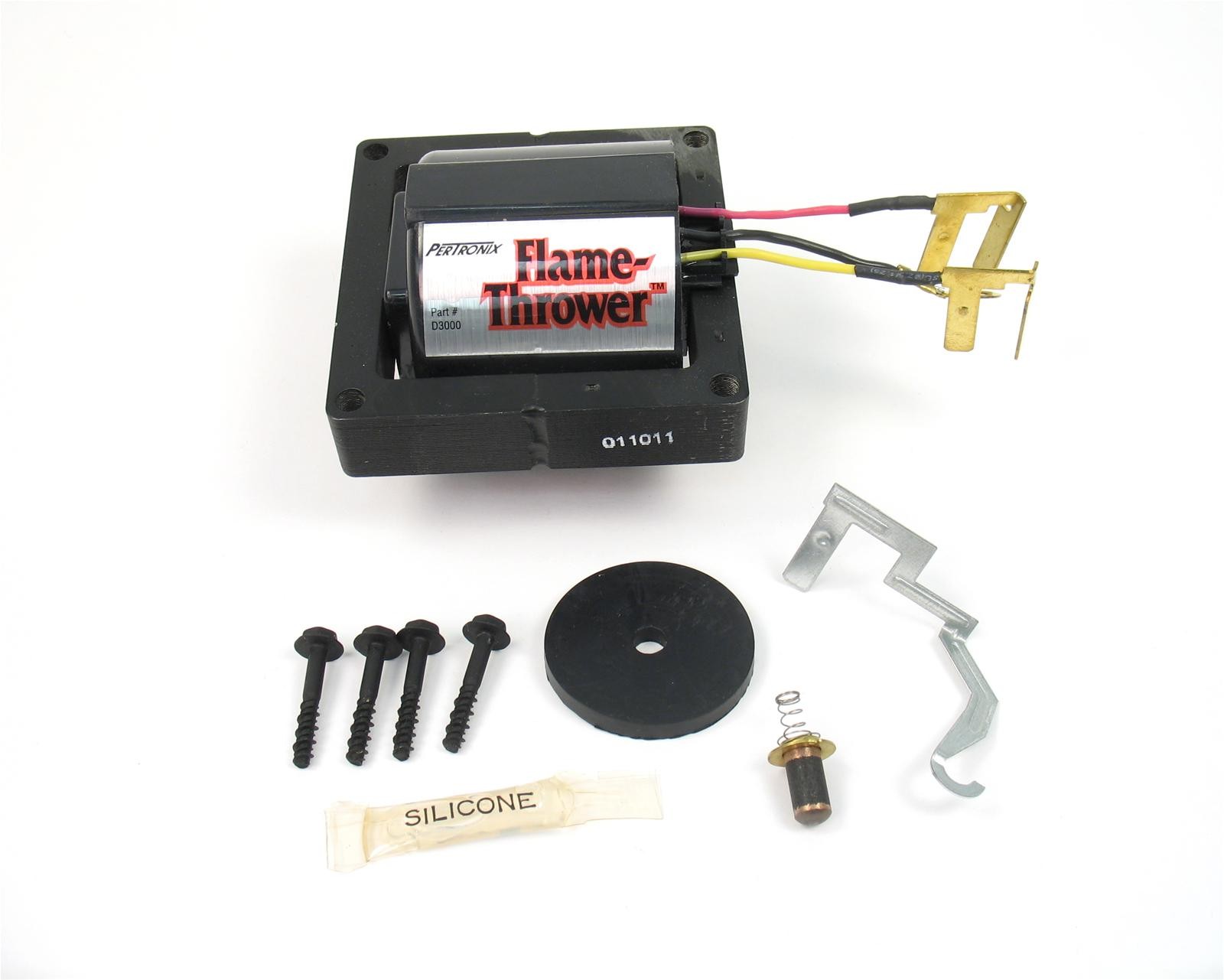

Ignition coil HEI Pertronix

Primary Resistance: 0.500 ohms

Coil Internal Construction: Epoxy

Coil Wire Attachment: HEI in-cap

Coil Color: Black

Maximum Voltage: 50,000 V

Turns Ratio: 75:1

Secondary Resistance: 8.30K ohms

Inductance: 4.40 mH

Peak Current: 7.9 amps

Spark Duration: 1.5 mS

Mounting Bracket Included:No

Coil Wire Included:No

Ballast Resistor Included:No

Coil Shape: Square

Height (in): 2,440 in.

Length (in): 3.080 in.

Width (in): 3.080 in.

Quantity: Sold individually.

Special Attention: For use on HEI type distributors with a coil in the cap. Replaces GM coils wired with yellow, black, and red wires.

With their optimized winding design, PerTronix Flame-Thrower HEI and TFI ignition coils are a great upgrade from stock. They produce more than 50,000 V of energy to zap your plugs, for fuller, more complete combustion and better power. When used with their companion Flame-Thrower ignition modules, they produce more than twice the energy of a stock system at the plugs. They're wrapped in rugged alkyd housings and are available for both distributor-mounted and external applications.
