PSR 475DG Dual Ball Bearing, Billet, 1050HP
Artnr: 102140506
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
Description

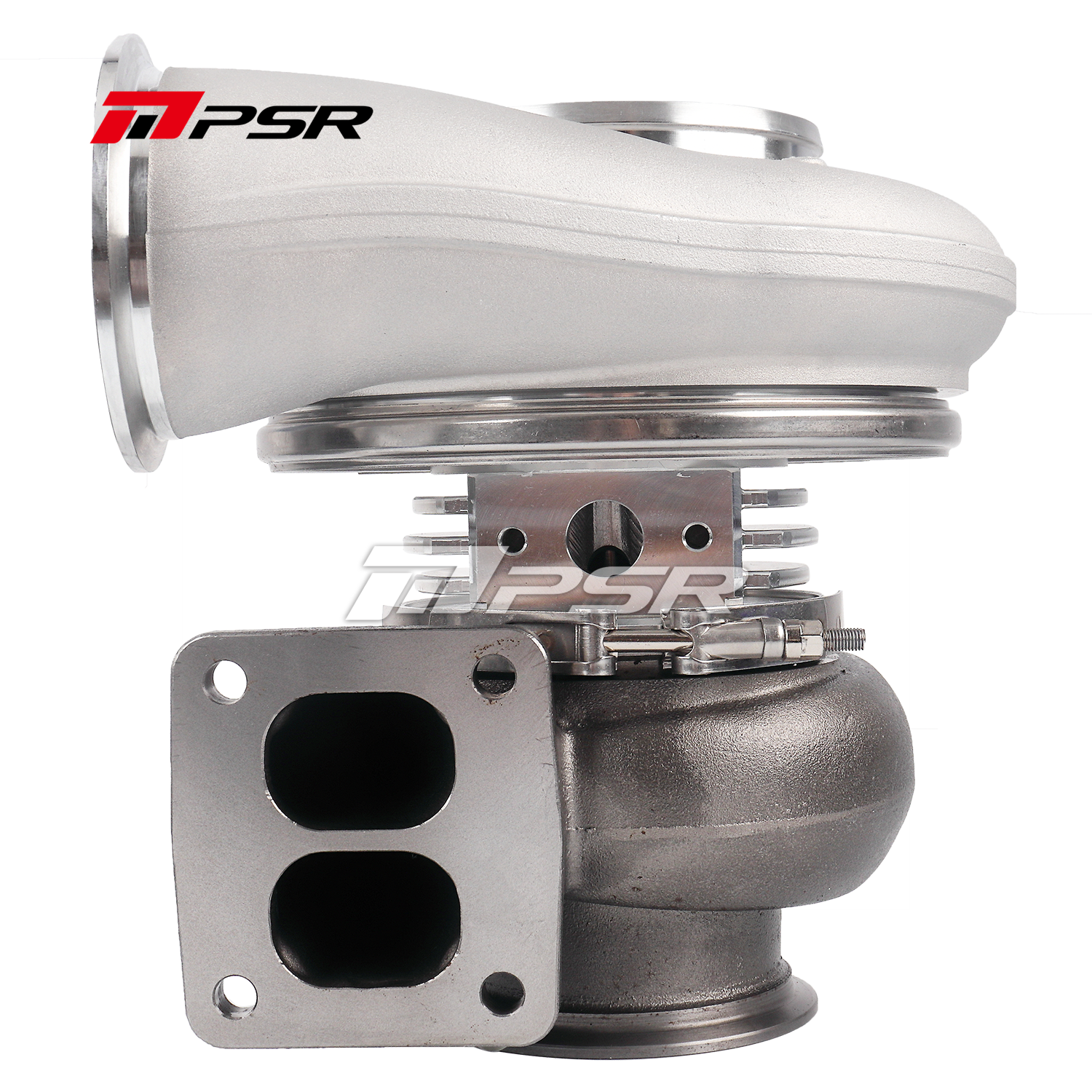

Exhaust housing with T4 or T6 flange. Choose from the list on the right.
Recommended engine displacement 3.0L - 8.0L
HP Rating 500-1050
CNC manufactured bearing housing in billet aluminum with cooling fins
G-Series 9-blade impeller design in 713 Inconel for improved gas flow and response
Double ceramic ball bearings

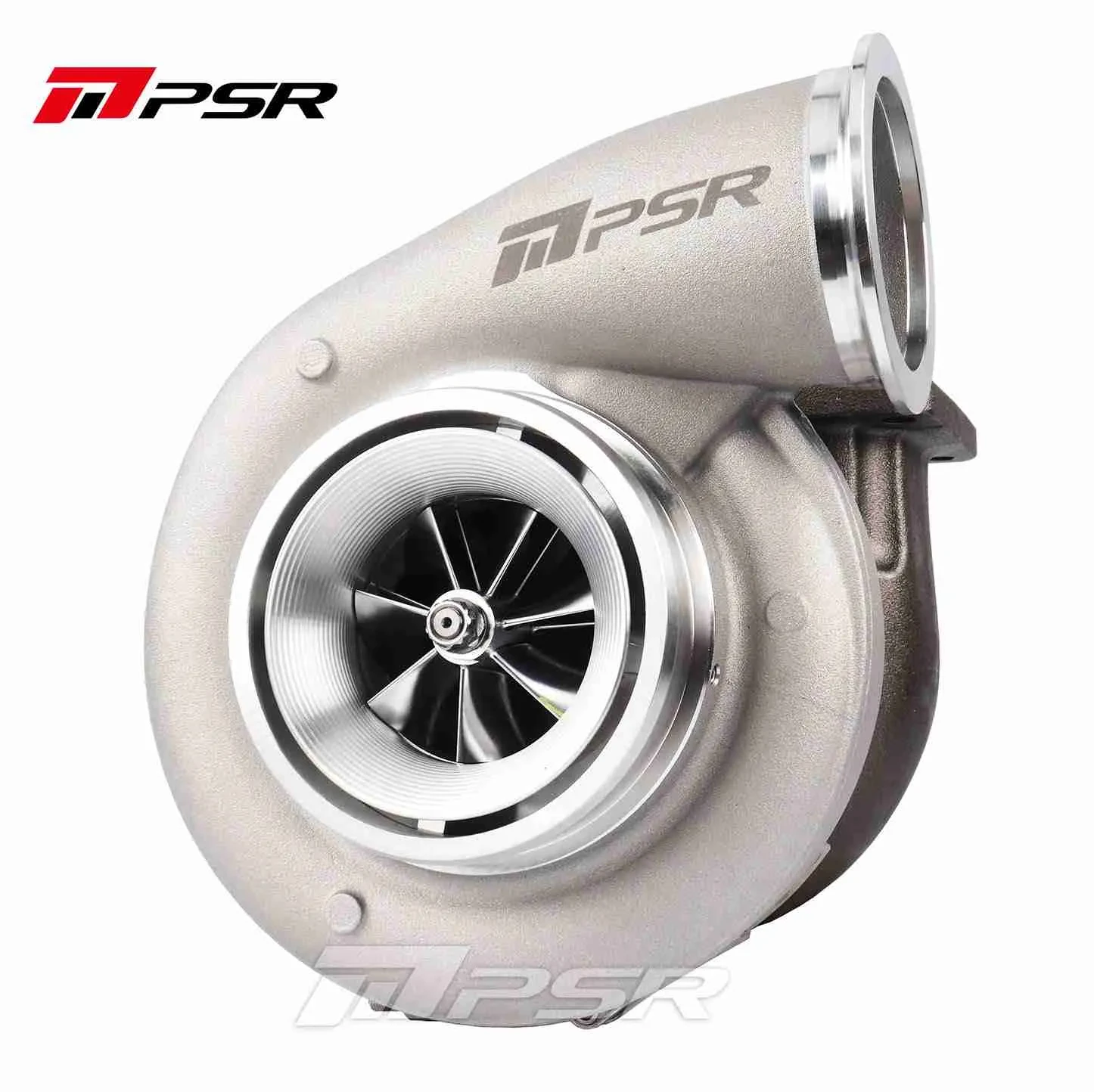

Billet compressor wheel with "Extended Tip Technology"
AN12 oil return flange included.
V-Band Flange kit for Compressor: Link
V-Band Flange kit for Downpipe: Link
Compressor wheel: 75*101mm
Inlet compressor: 5"
Outlet compressor: V-Band
Turbine wheel: 96*88mm
Outlet turbine: 3/4 Marmon V-Band
Oil supply: 1/4 NPT
Oil return: Standard T6 return flange
