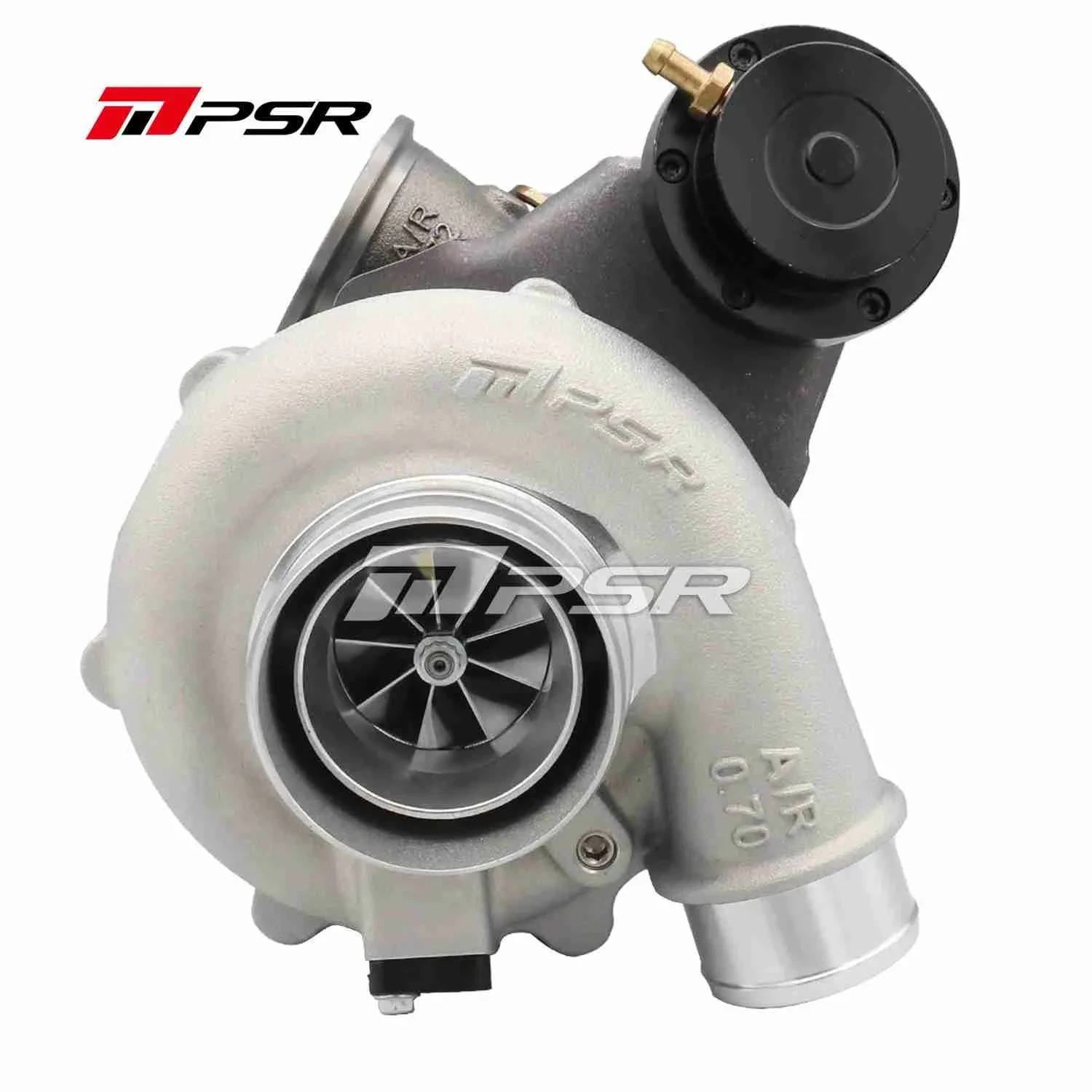

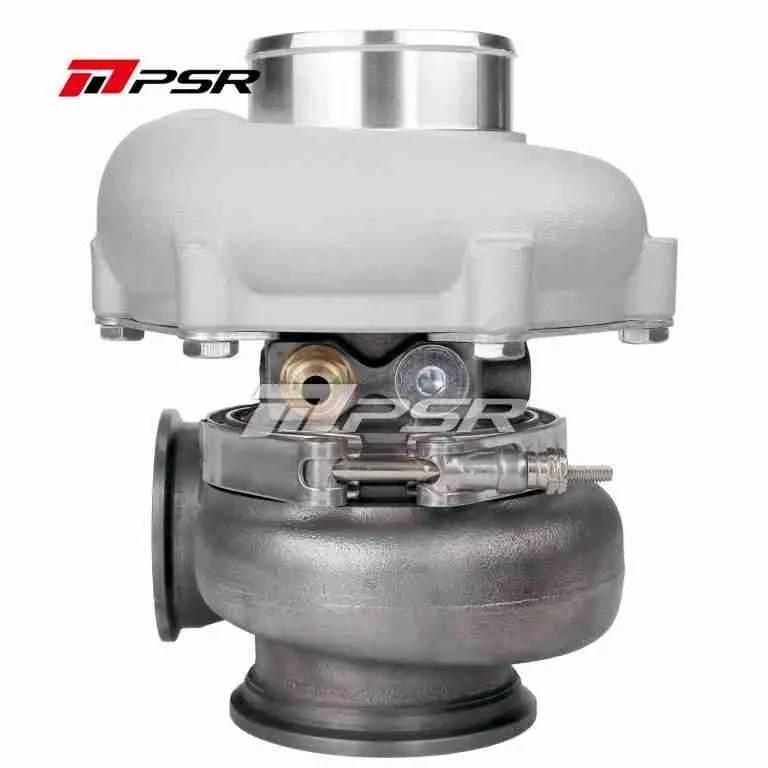

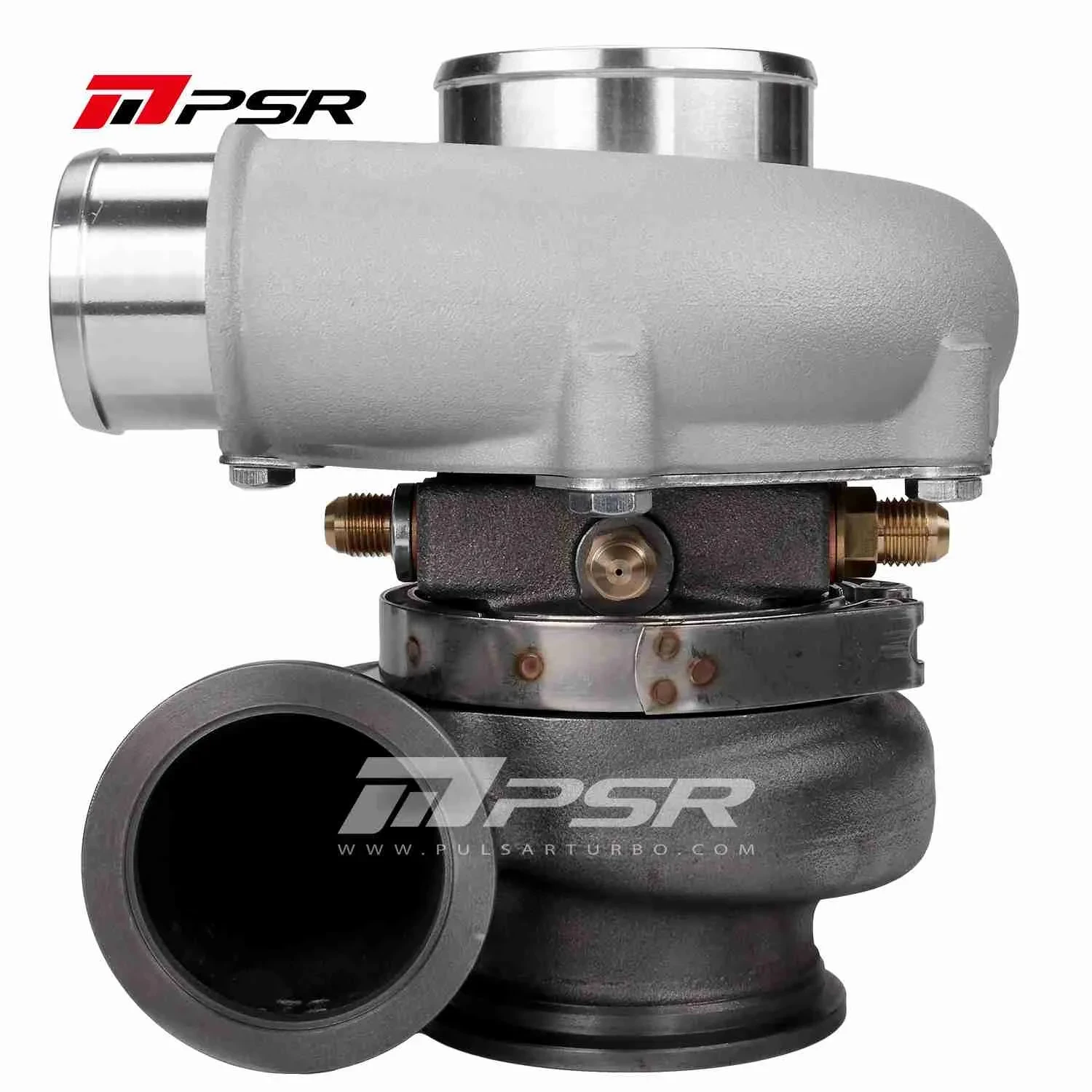

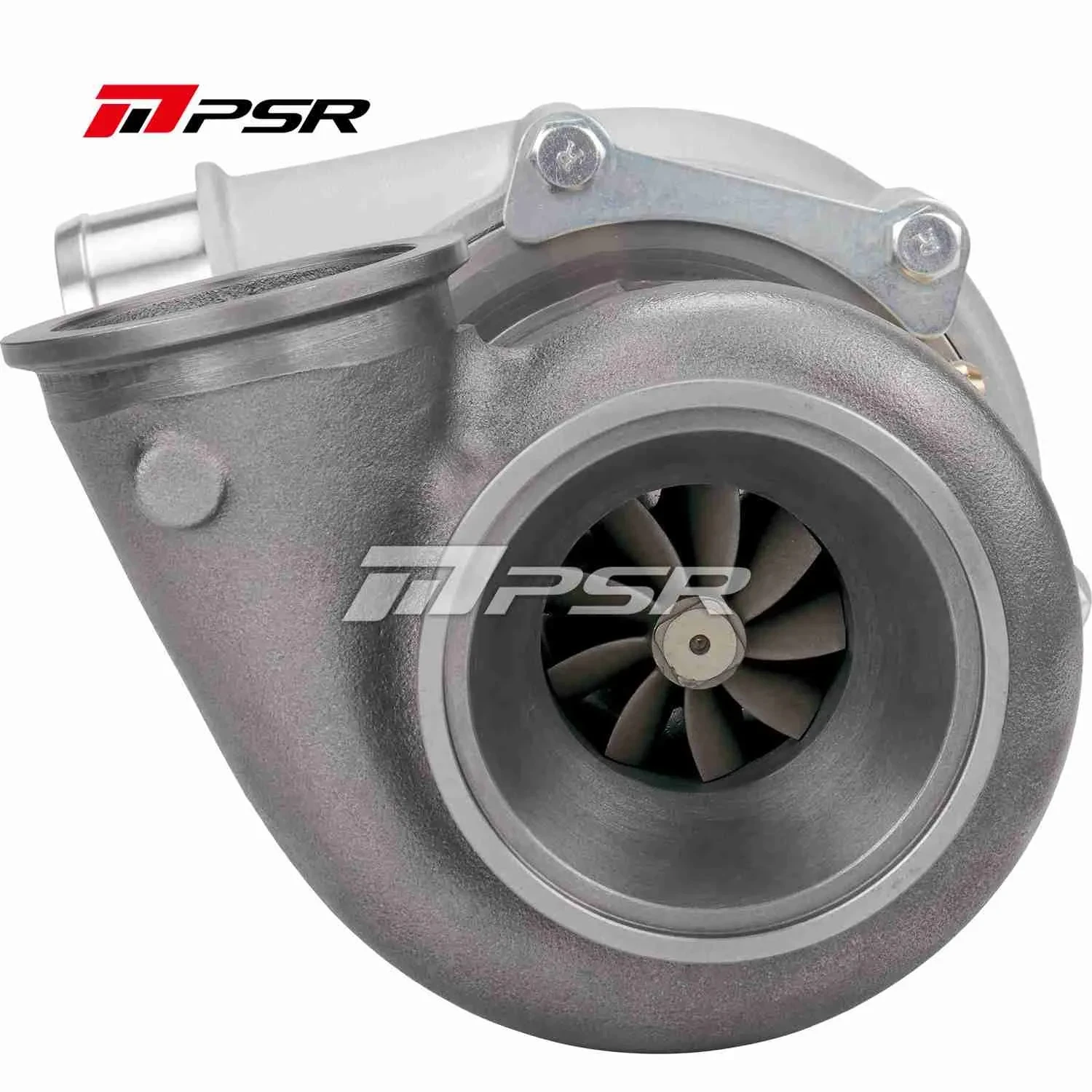

PSR 4849G, T25, Dual Ball Bearing, 550HP

Pulsar
Artnr: 102125113
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
13,499 kr
Including Tax: 2,699.80 kr
Pcs.

Description

T25 configuration on the exhaust housing with AR .72 and internal wastegate

Equivalent to Garrett G25 in size.

Double ceramic ball bearings that provide optimal response and better durability by reducing lateral movement of the impeller shaft.

9 blade "G-Aero" Billet compressor wheel with "Extended Tapered Tip Technology"

9 blade "G-Aero" Inconel 713c turbine wheel

Anti-Surge inlet on the compressor part with integrated socket for speed sensor.

V-Band Flanges for the compressor and exhaust is included.

Internal wastegate configured to around 0.8-0.95 bar charge pressure


Compressor wheel: 48*60mm

Turbine wheel: 54*49mm

Inlet compressor: 3"

Outlet compressor: 2″

Exhaust housing inlet: T25

Exhaust housing outlet: 3″ V-Band

Water connections: AN6

Oil supply: AN4 with restrictor

Oil return: Standard T3 Oil return flange


Available in a multitude of different configurations. V-Band in, out, T25/T3 flanges, internal/external wastegate, various ARs, lots of exhausts etc!

Contact us for this and we can produce aggregates with the right config for you!
