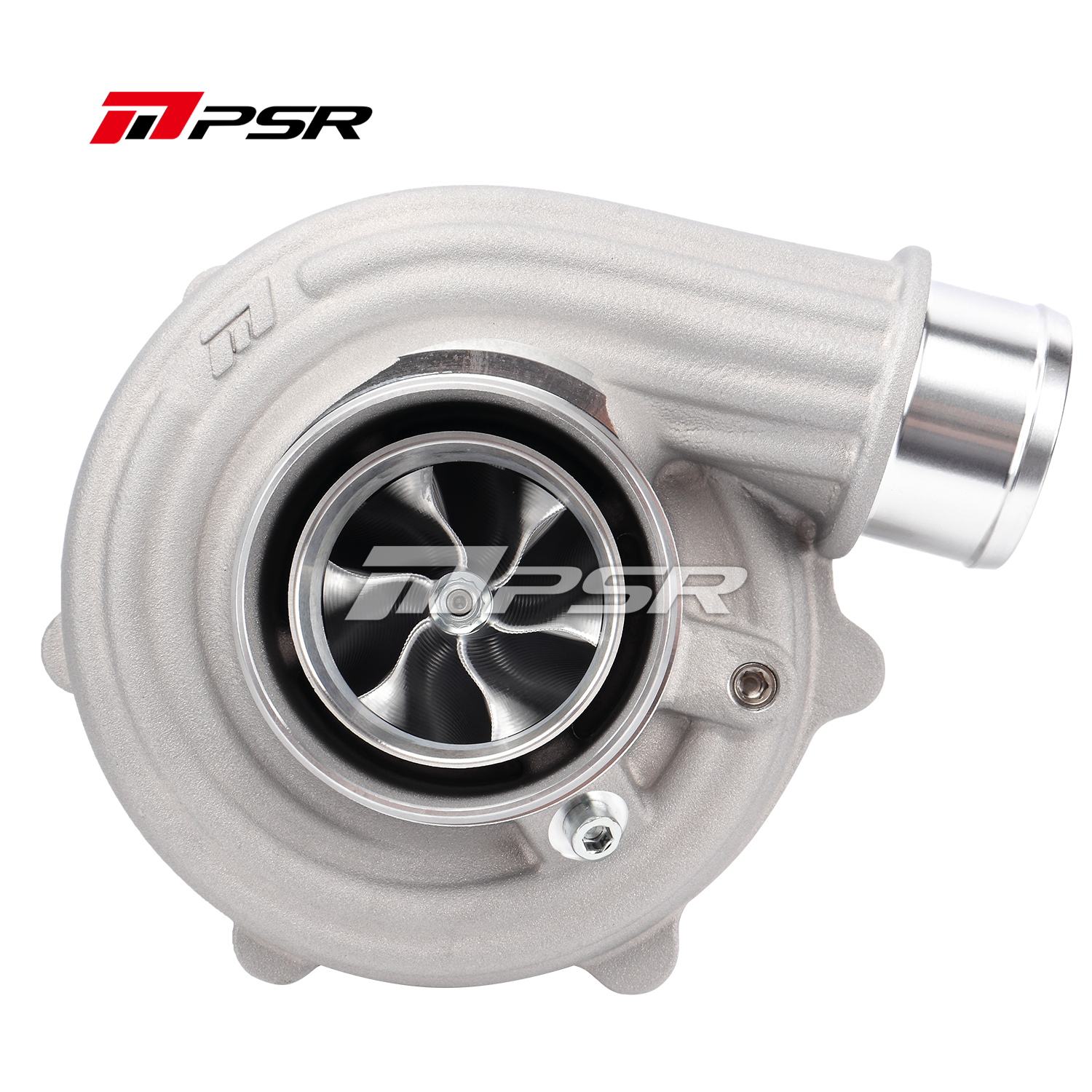

PSR 6862A, Dual Ball Bearing, 1050HP

Pulsar
Artnr: 102294003=112294000+194352704
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
14,749 kr
Including Tax: 2,949.80 kr
Pcs.

Description

AR .83, V-Band in, V-Band out, external wastegate.

Curve milled billet compressor wheel for improved airflow and efficiency.

Turbine wheel with narrow hub for reduced weight and faster spool

Decentered blades on the turbine wheel for improved gas flow capability and reduced ketchup effect

Newly designed Anti-Surge compressor housing with integrated speed and pressure sensor port for improved performance monitoring and control

Double ball bearing system for improved durability, stability and reduced friction resulting in improved performance and longevity


Compressor wheel size: 68*84mm

Turbine wheel size: 68*62mm

Compressor intake: 4″

Compressor outlet: 2.5″

Turbo inlet: V-Band

Turbine outlet: V-Band

Water connections: M14x1.5

Oil feed: 7/16-24 UNF with AN4 restrictor fitted.

Oil return: Standard T3 Return flange


Available in a multitude of different configurations. V-Band in, out, T25/T3 flanges, internal/external wastegate, various ARs, lots of exhausts etc!

Contact us for this and we can produce aggregates with the right config for you!
