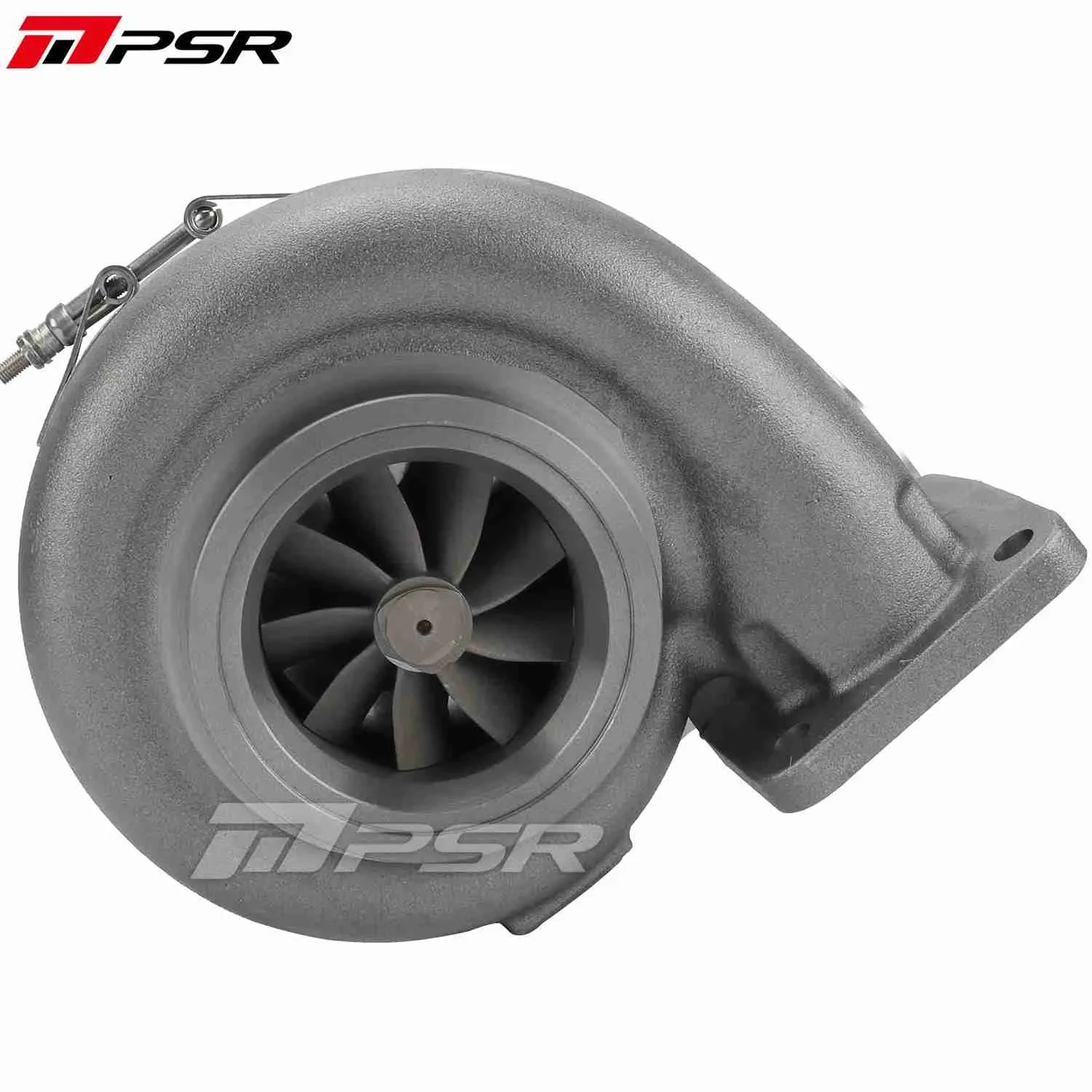

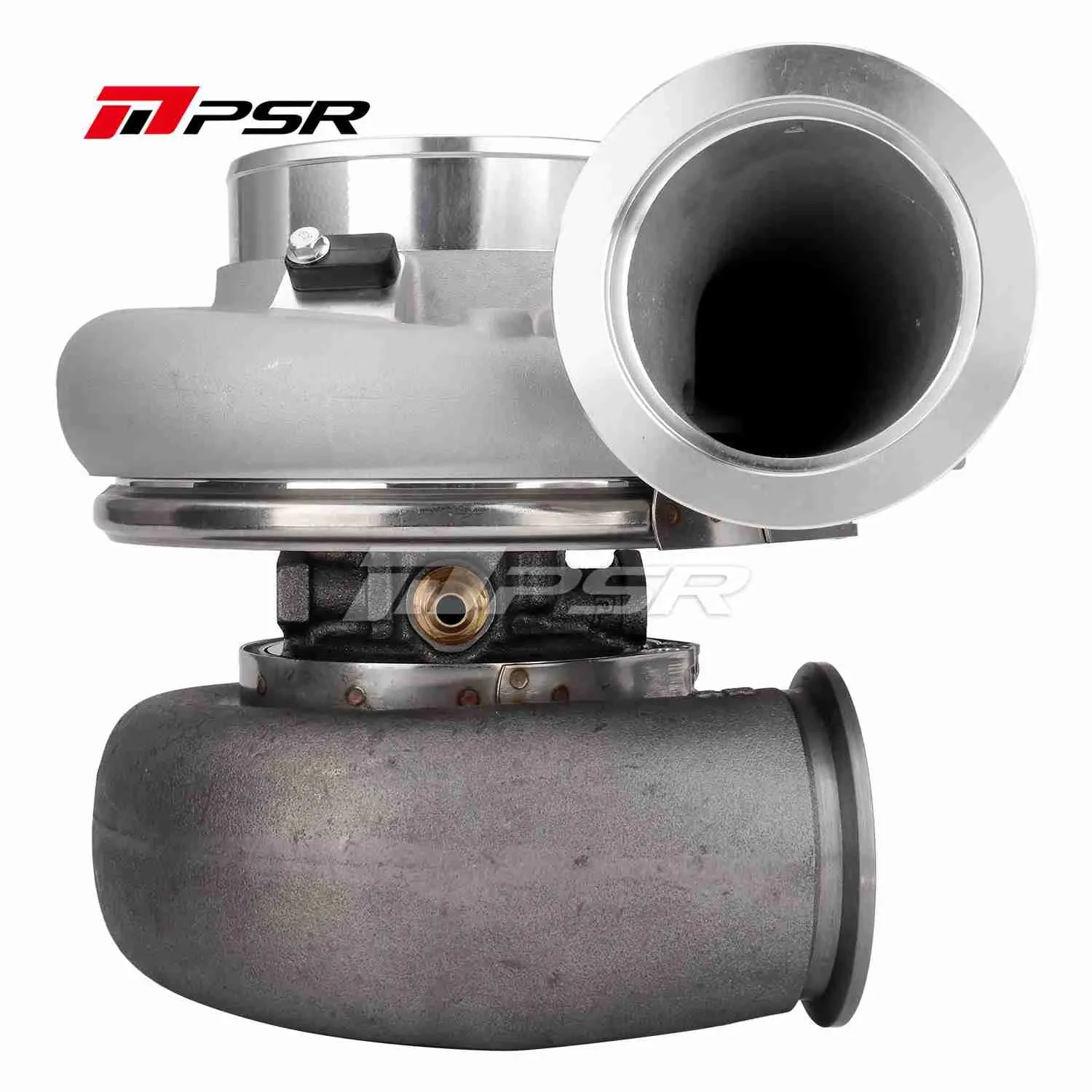

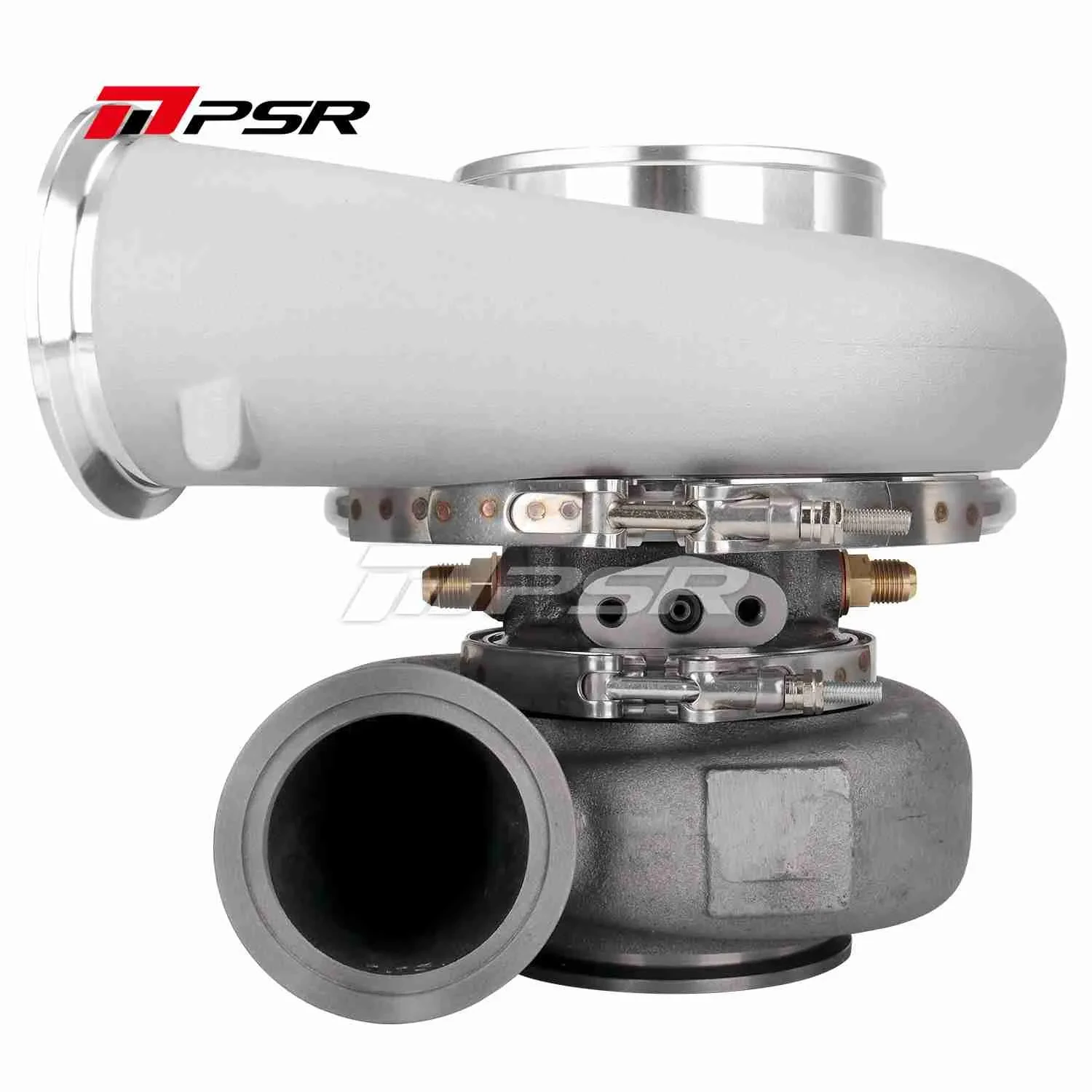

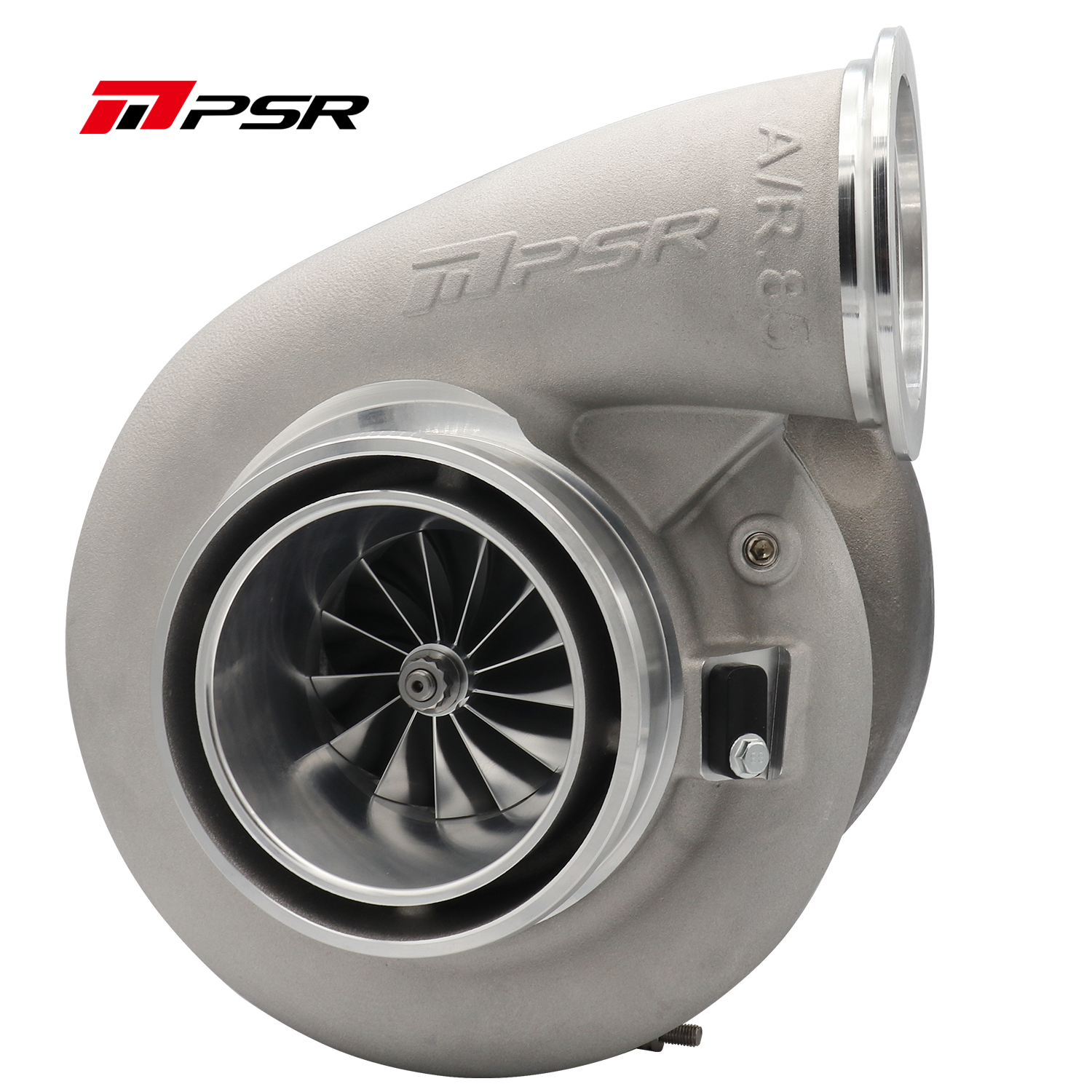

PSR 7782G, Dual Ball Bearing, 1500HP

Pulsar
Artnr: 102145206=112145201+194345202
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
16,899 kr
Including Tax: 3,379.80 kr
Pcs.

Description

Double V-band configuration on the exhaust housing with AR 1.01 and external wastegate

Equivalent to Garrett G45 in size.

Double ceramic ball bearings that provide optimal response and better durability by reducing lateral movement of the impeller shaft.

13 blade "G-Aero" Billet compressor wheel with "Extended Tapered Tip Technology"

9 blade "G-Aero" Inconel 713c turbine wheel

Anti-Surge inlet on the compressor part with integrated socket for speed sensor.

V-Band Flanges for the compressor and exhaust is included.

External wastegate must be fitted

Oil feed fitting needs to be bought separately: Link


Compressor wheel: 76.6*109.2mm

Turbine wheel: 89*81.6mm

Inlet compressor: 5"

Outlet compressor: 3″ V-Band

Exhaust housing inlet: V-Band

Exhaust housing outlet: V-Band

Water connections: AN6

Oil supply: Need to buy separate fitting. See link above.

Oil return: AN12, included


Available in a multitude of different configurations. V-Band in, out, T25/T3 flanges, internal/external wastegate, various ARs, lots of exhausts etc!

Contact us for this and we can produce aggregates with the right config for you!
