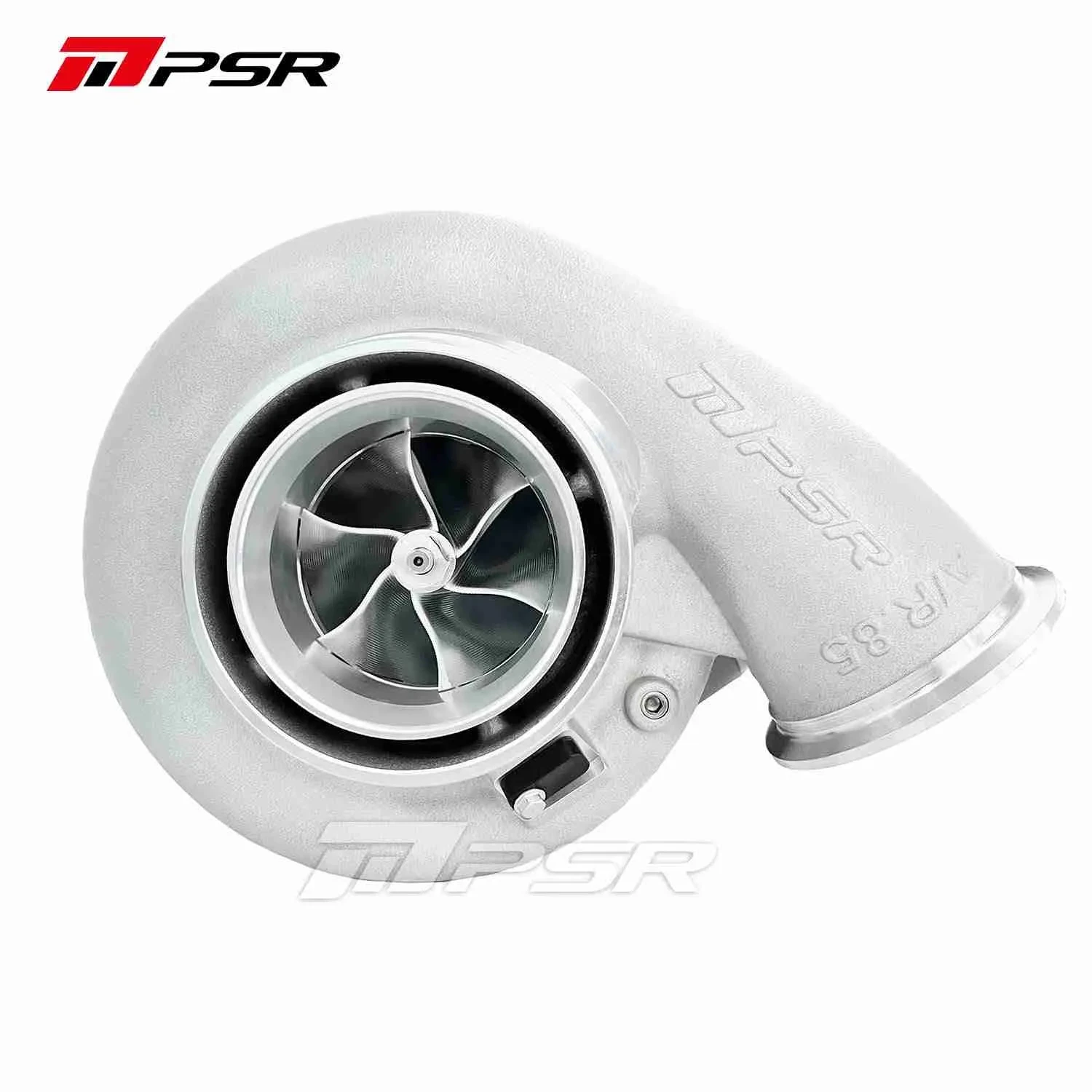

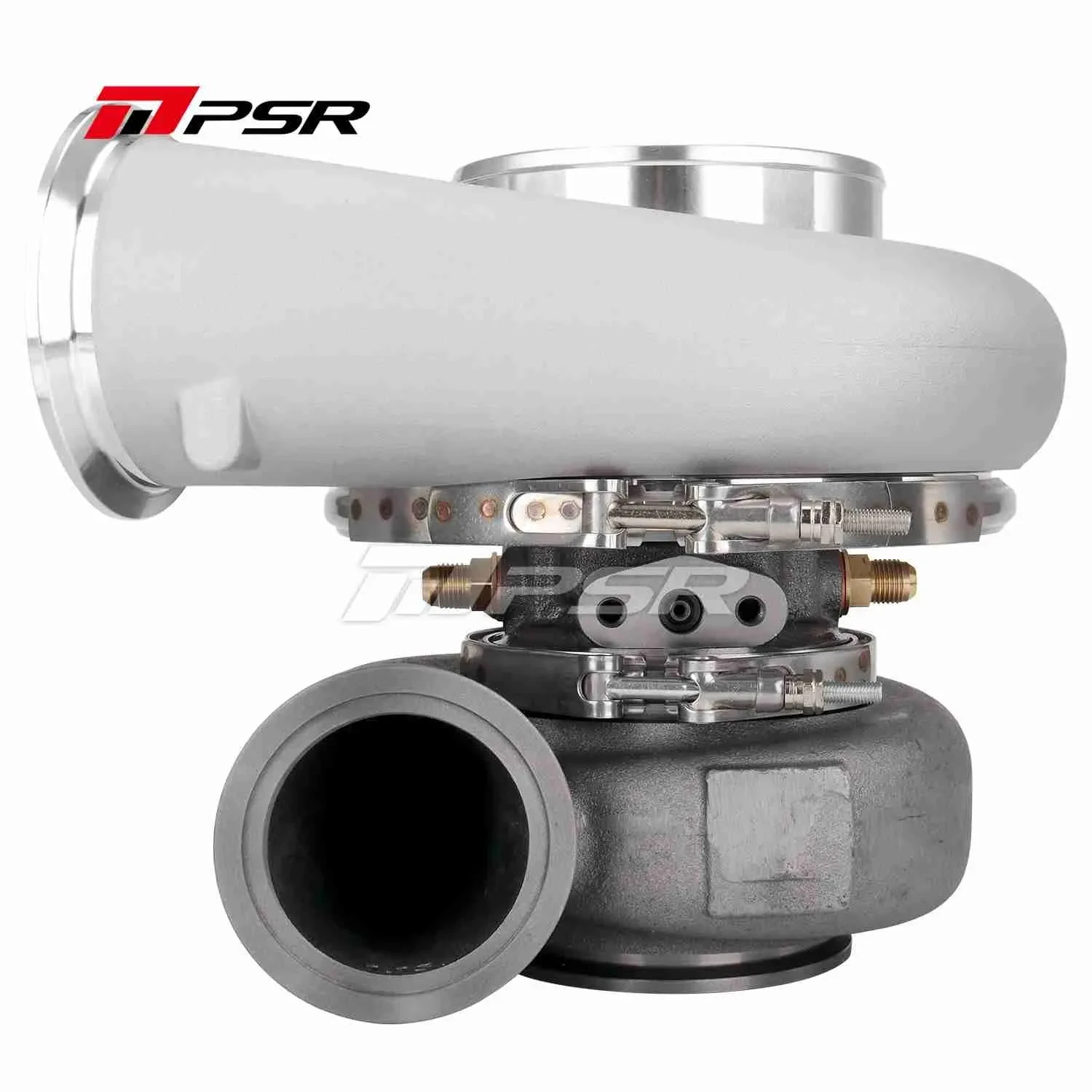

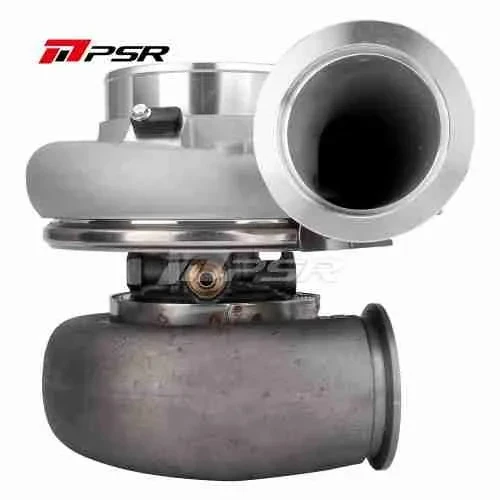

PSR 8582G, Dual Ball Bearing, 1800HP

Pulsar
Artnr: 102245205
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
20,249 kr
Including Tax: 4,049.80 kr
Pcs.

Description

Double V-band configuration on the exhaust housing with AR 1.01 and external wastegate

Curved Point Mill Compressor Wheel

Double ceramic ball bearings that provide optimal response and better durability by reducing lateral movement of the impeller shaft.

9 blade "G-Aero" Inconel 713c turbine wheel

Anti-Surge inlet on the compressor part with integrated socket for speed sensor.

V-Band Flanges for the compressor and exhaust is included.

External wastegate must be fitted

Oil feed needs to be bought separately: Link

Compressor wheel: 79*98/101.56mm

Turbine wheel: 89*81.6mm

Inlet compressor: 5"

Outlet compressor: 3″ V-Band

Exhaust housing inlet: V-Band

Exhaust housing outlet: V-Band

Water connections: AN6

Oil supply: Included flange

Oil return: AN12, included


Available in a multitude of different configurations. V-Band in, out, T25/T3 flanges, internal/external wastegate, various ARs, lots of exhausts etc!

Contact us for this and we can produce aggregates with the right config for you!
