PSR3584, T3, Gen3, Dual Ball Bearing, 1000HP
Artnr: 102135509=112135219+194335224
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
Description
Exhaust housing with T3 flange and AR 0.63.
GT35 Sized turbo
Dual ball bearing

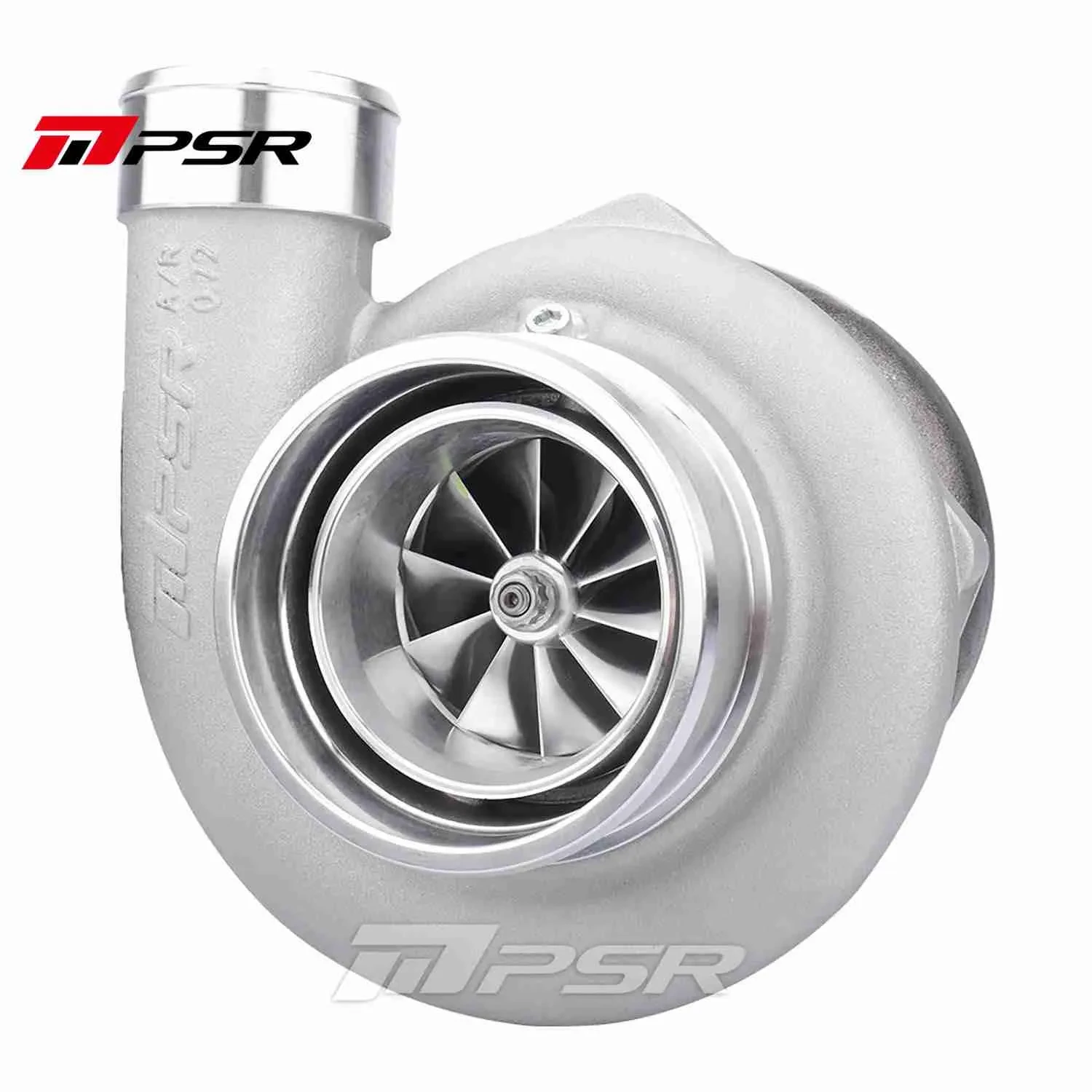

10 Blade billet compressor wheel with "Extended Tapered Tip Technology"
10 Bladed turbine wheel in Inconel 713c, larger and designed for high power outputs
Socket for speed sensor
Rated for up to 1000HP

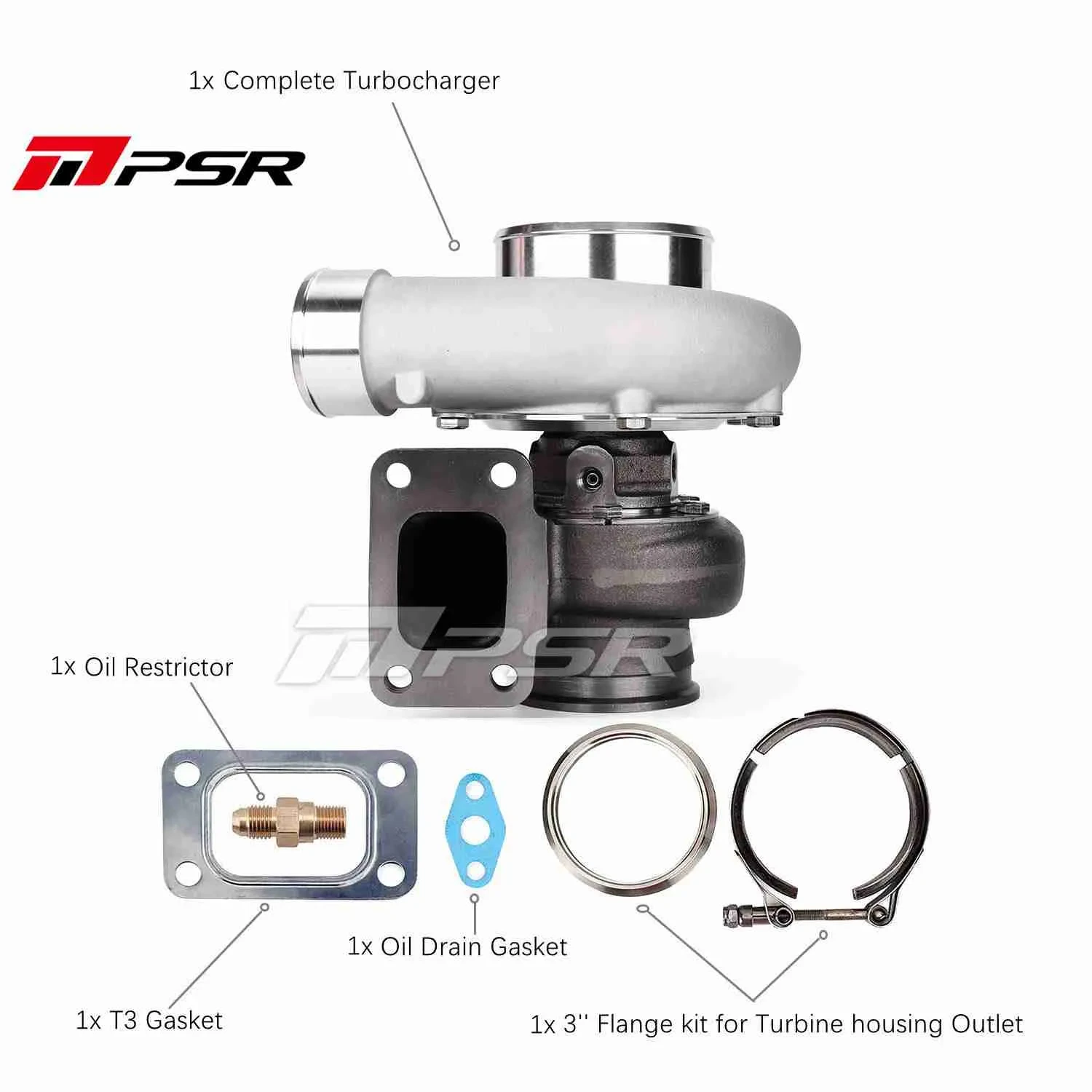

V-Band's flange for outlet is included
Compressor wheel: 67*84mm
Turbine wheel: 74*66mm
Inlet compressor: 4"
Outlet compressor: 2"
Exhaust housing inlet: T3
Exhaust housing outlet: 3" V-Band
Oil supply: AN4 with restrictor
Oil return: Standard T3 Oil return
Water In/Out: M14x1.5
