PTE 6766, Dual Ball Bearing, Billet, 935HP
Artnr: 102167102
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
Description

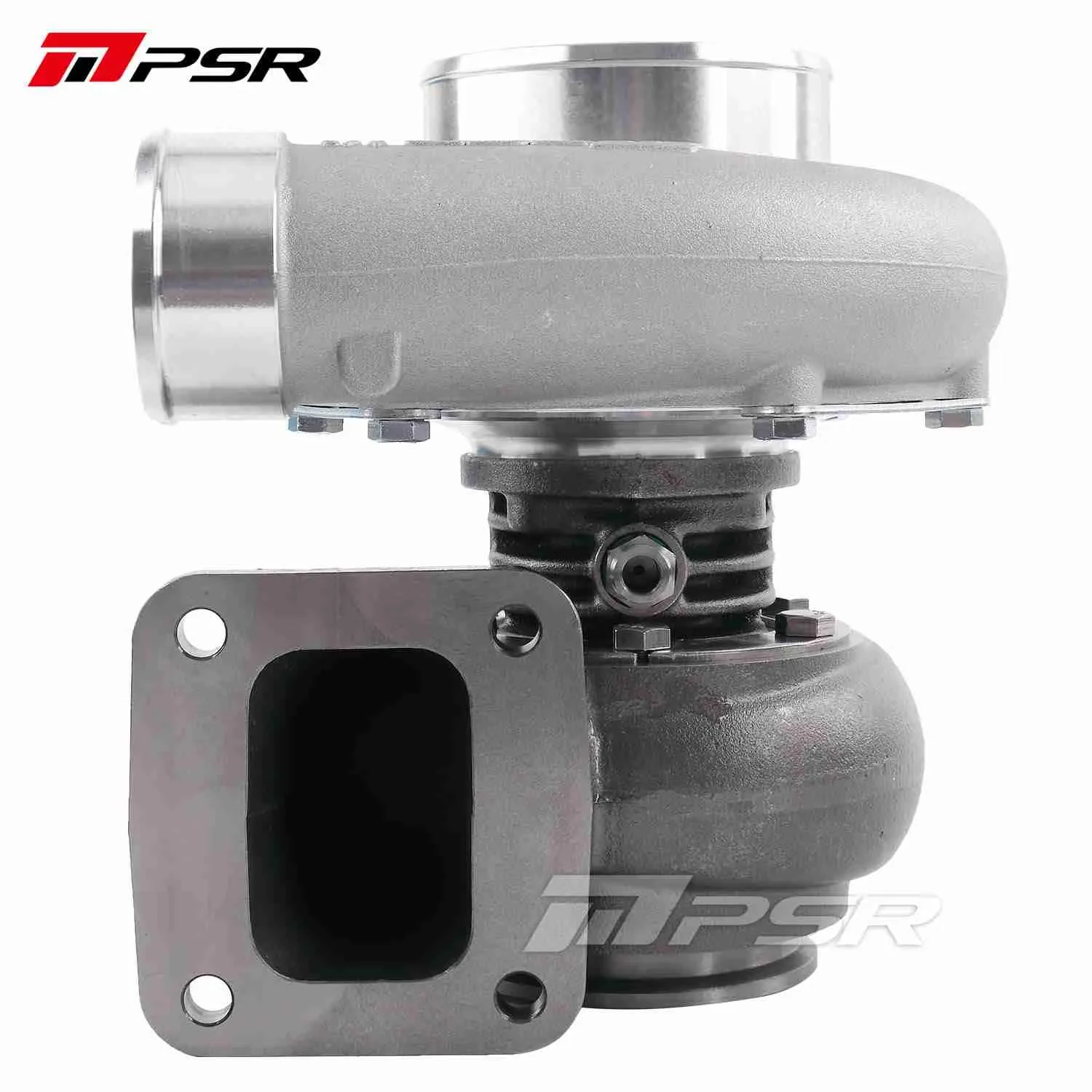

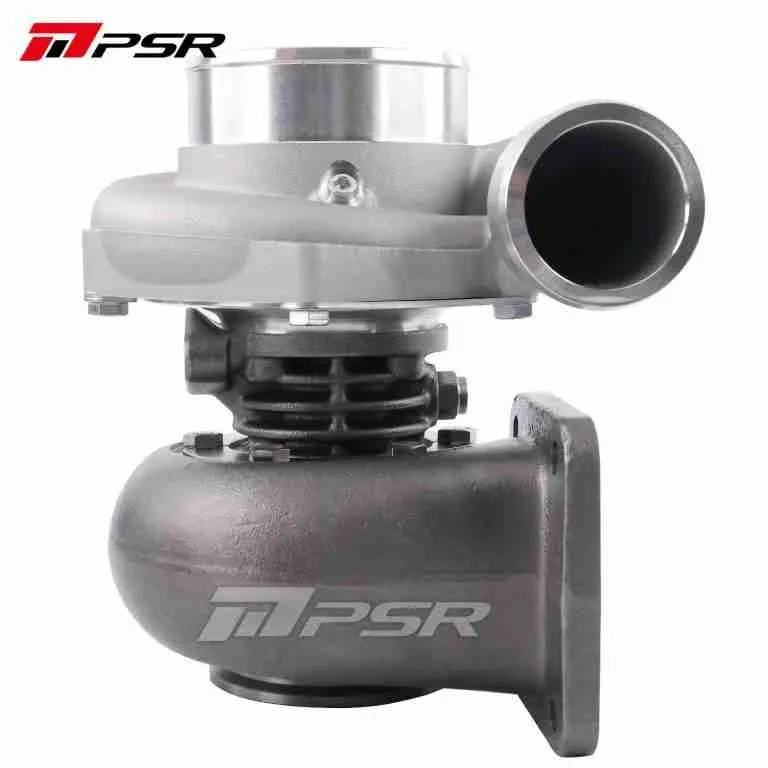

Exhaust housing with T4 flange and AR .96
Double ball bearing system for optimal response and better durability

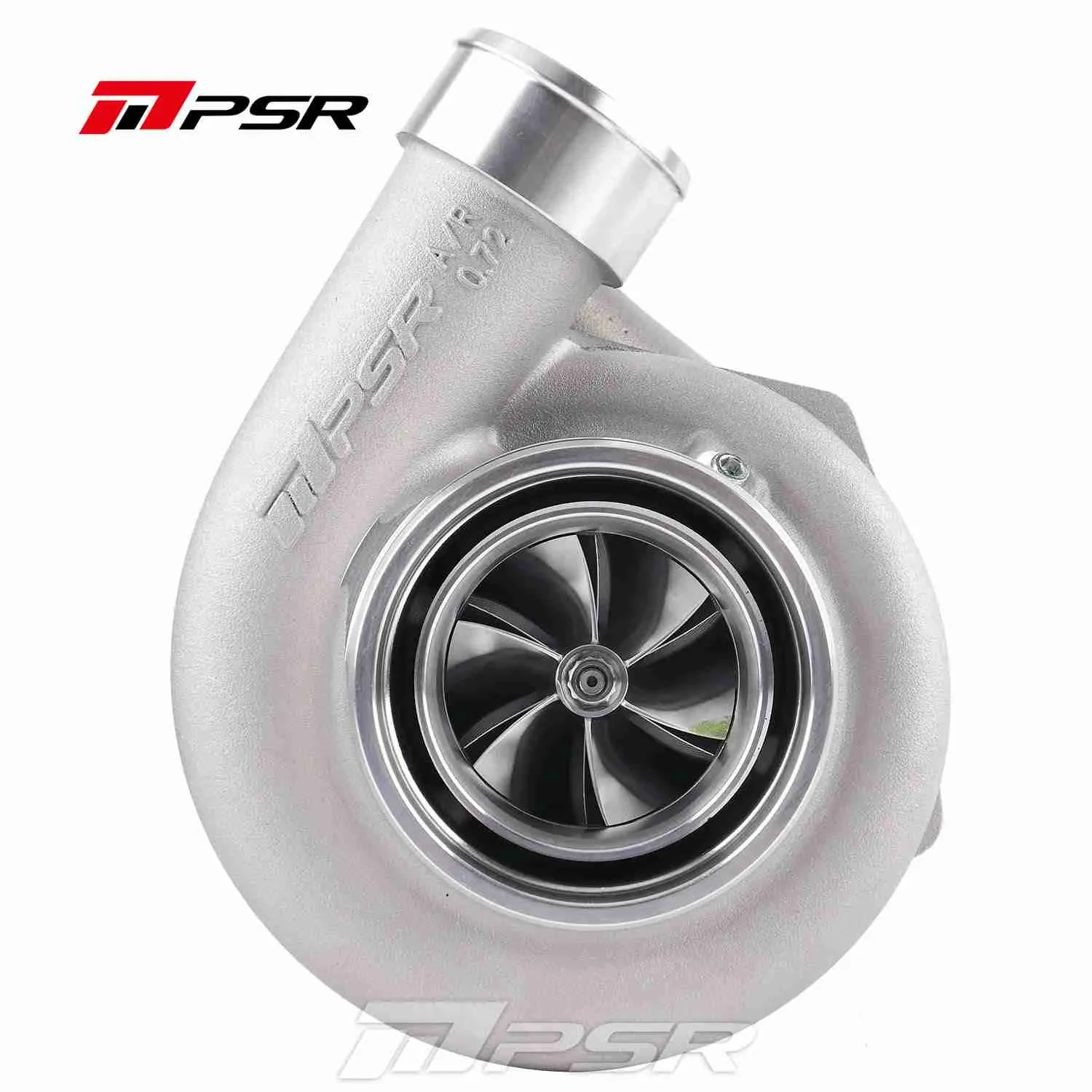

Billet compressor wheels with "Extended Tapered Tip Technology"
10 Blade turbine wheel in Inconel 713c
V-Band kit for the exhaust part included
Max power output of 935HP
Compressor wheel: 67mm
Turbine wheel: 66.1mm
Inlet compressor: 4"
Outlet compressor: 2.5"
Inlet Exhaust: T4
Outlet Exhaust: V-Band
Oil feed: 1/8-27 NPSF
Oil return: Standard T4 return
