Description
T4 configuration on the exhaust housing with V-band on the outlet.
Choose between Single entry or Twin entry in the list on the right
Specced for 500-1100 HP on engines between 2 and 4.5 Liters
Double ceramic ball bearings
Billet compressor wheels with "Extended Tapered Tip Technology"
Inconel 713c Turbine wheel
Gen2 compressor with ported inlet and integrated outlet for speed sensor
Get the oil restrictor here: Link
Compressor wheel: 63*87mm
Turbine wheel: 76*67.5mm
Inlet compressor: 4"
Outlet compressor: 2.5″

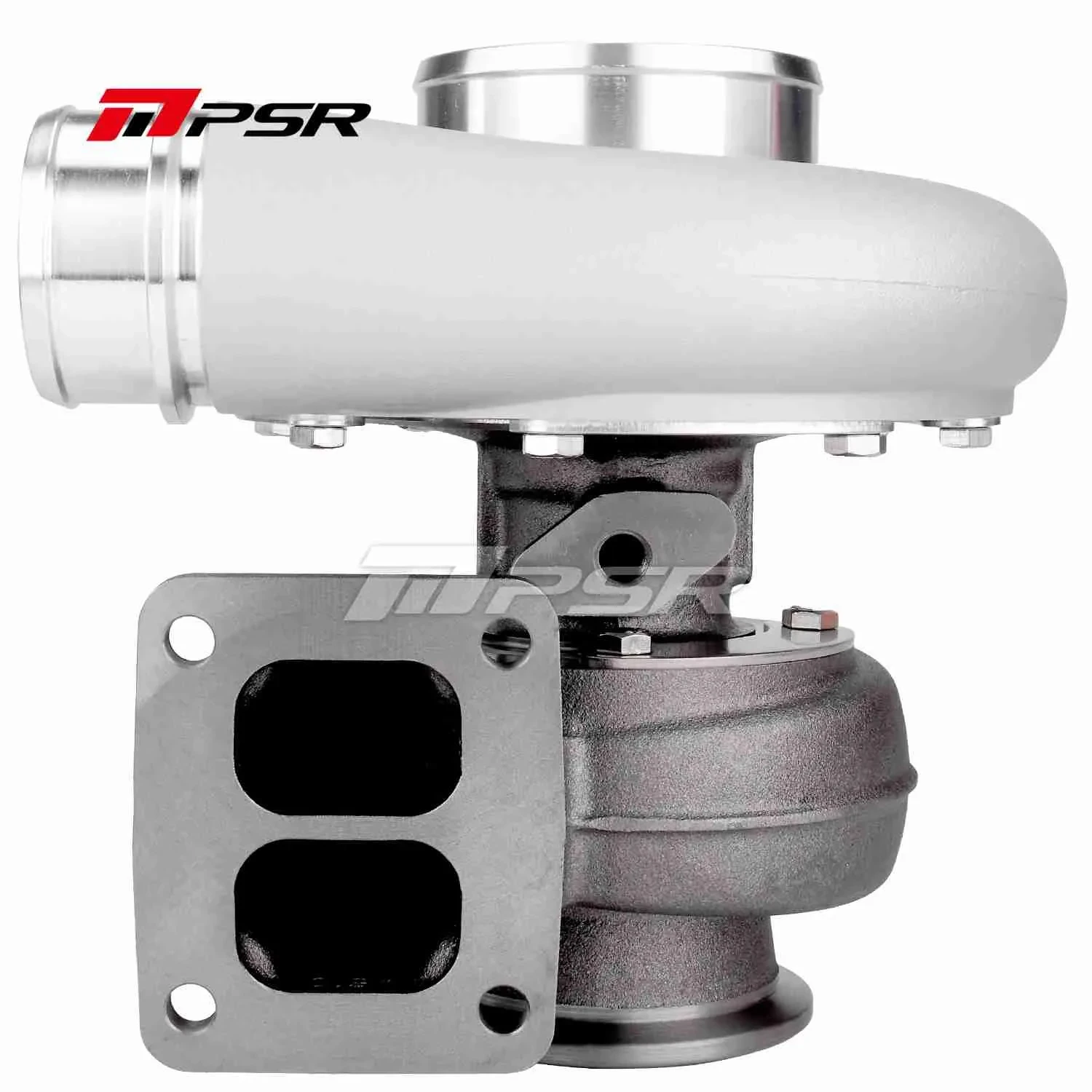

Exhaust manifold inlet: T4 Single/Twin
Outlet exhaust: 4.21" Marmon
Oil supply: 1/4" NPT
Oil return: Standard T4 Oil return flange
