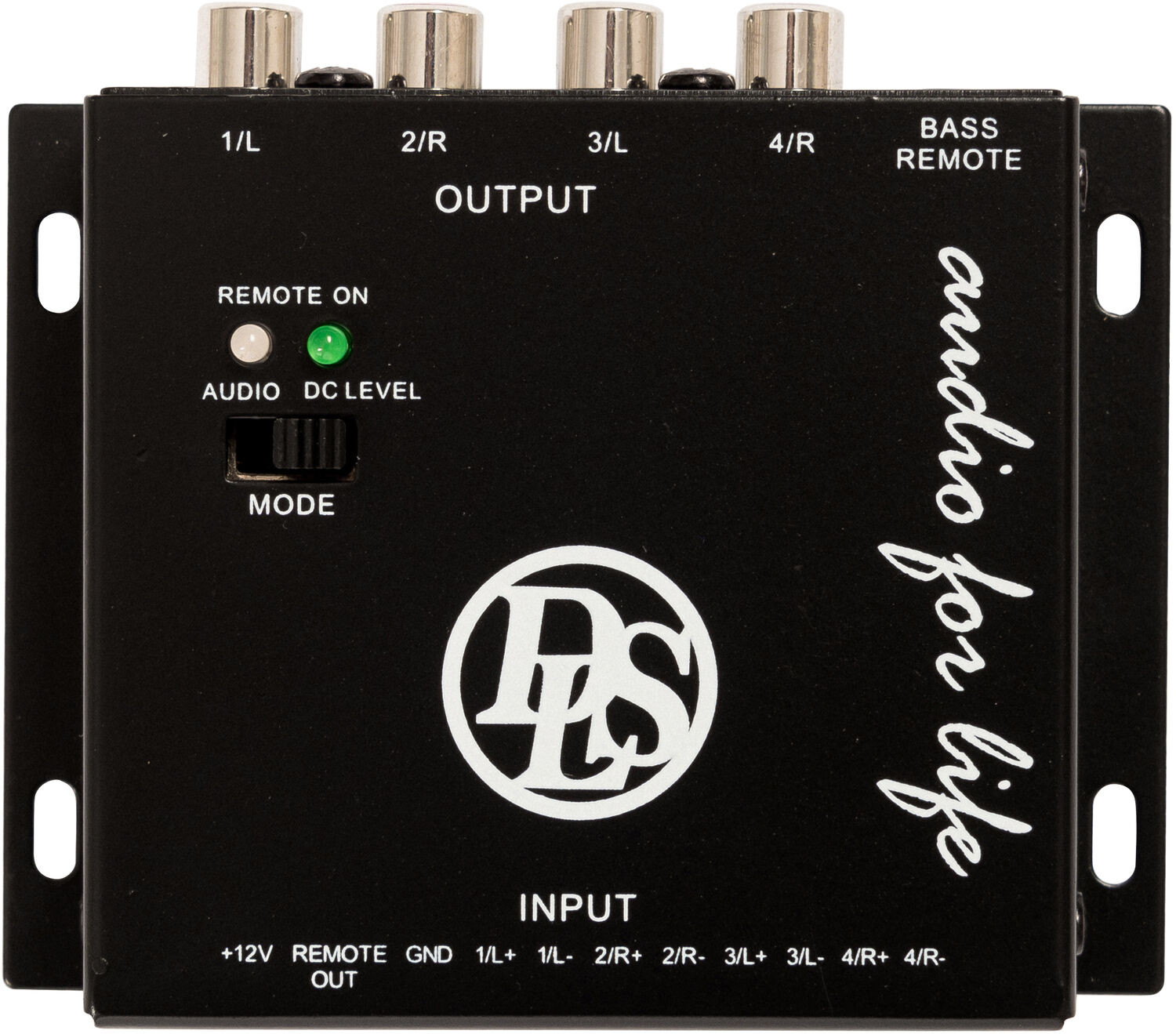

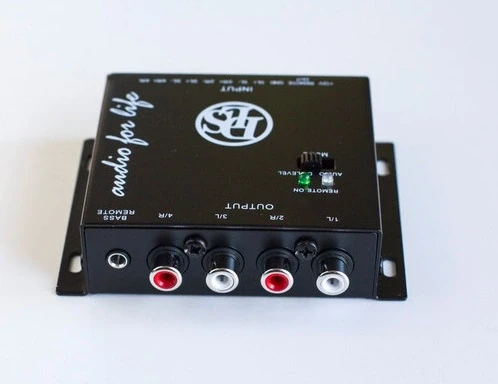

DLS HLC4.2 Hög/Lågnivåomvandlare fyrkanal

DLS HLC4.2 is the latest version of the unbeatable HLC4. The converter can be used with both 2- and 4-channel amplifiers. A perfect solution if you have a head unit that lacks the low-level outputs required to drive an additional amplifier.

Works with all head units

Balanced input circuits and interference filters

Many amplifiers already have high-level inputs that work perfectly with slightly older head units. However, many newer head units have digital amplifiers and then problems with the function can arise. This is nothing to worry about with the HLC4.2. Thanks to its balanced input circuits and interference filters, it works with all types of head units!

DLS has naturally put a lot of care into the sound quality, and has therefore prepared the HLC4.2 for Bassremote and Autostart with remote control of the power amplifiers. Comes with ISO connector.

NOTE! When used with 2-channel amplifiers, the inputs for channels 1 & 2 must be used for the automatic start function to work.

Specifications:

Number of channels: 4

Operating voltage: 12 V DC (min 10.8, max 15.6V)

Current consumption without signal: 4 mA

Current consumption during operation: Typical 25 mA

Output voltage: 3 V RMS

Distortion: 0.002% THD @ 3V out, 10 kohm load

Clip-point: 3.7 V RMS @ 14.4 V voltage

Output impedance: 200 ohms

Input impedance: Ch. 1: 44 ohms, Ch. 2-4: 100 ohms, All channels are fully balanced

Sensitivity modes: DC voltage or Audio signal, both are connected to channel 1..

Remote output: 12 Volt, max 100 ma max, Protected against short circuit.

Indicators: Green = Remote on, Blue = Audio signal

Protected against connection with wrong polarity.

In summary, output ch 3 + 4 for subwoofer amplifier when used with remote control.
