Coilover Kit Nissan 200SX 1989-1994 S13
Kommer in i januari 2026
Description
Take advantage now, these are shipped free of charge!
Perfect for those who don't want to spend over ten thousand on a coilover kit but at the same time don't want the cheapest lowering kits.

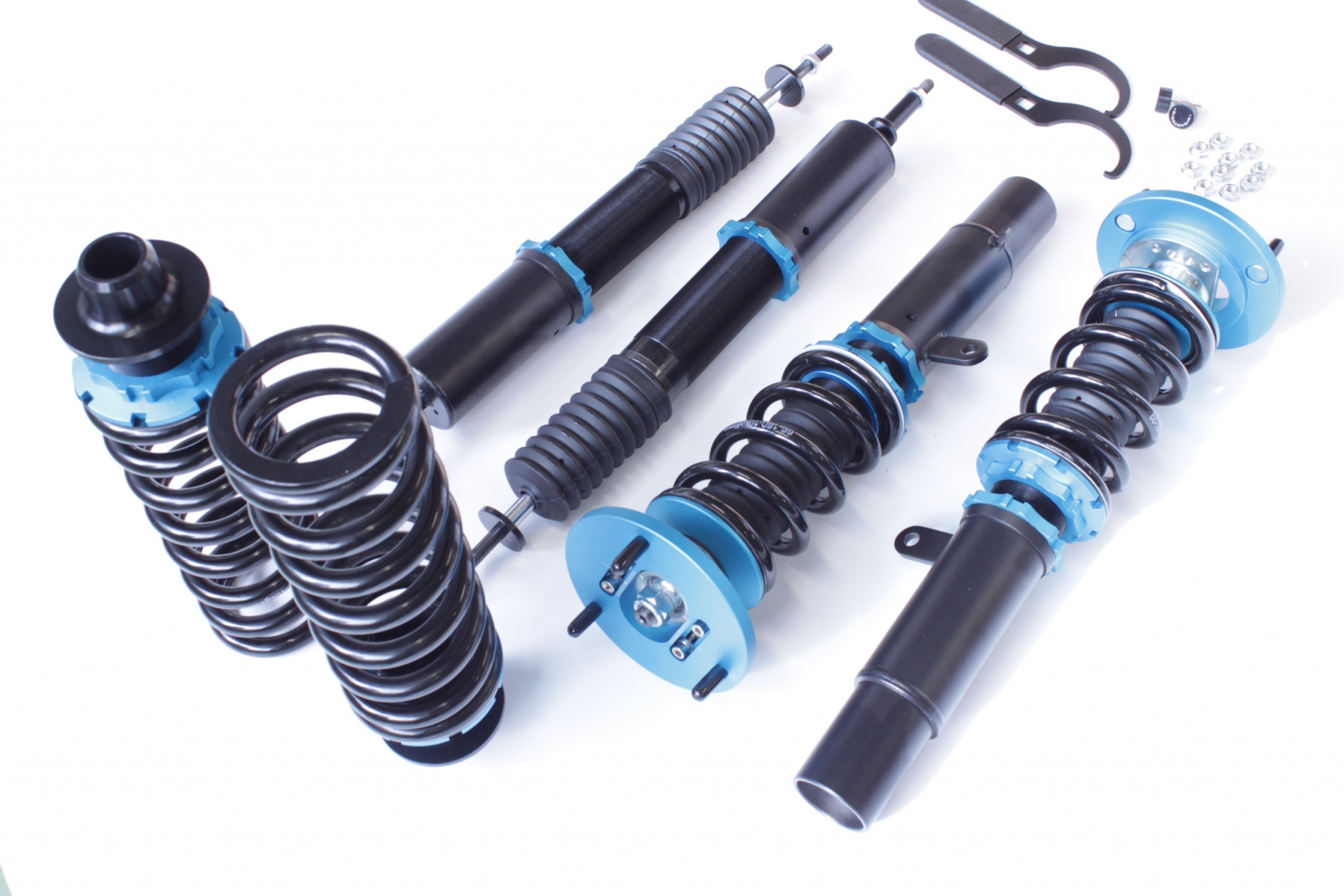

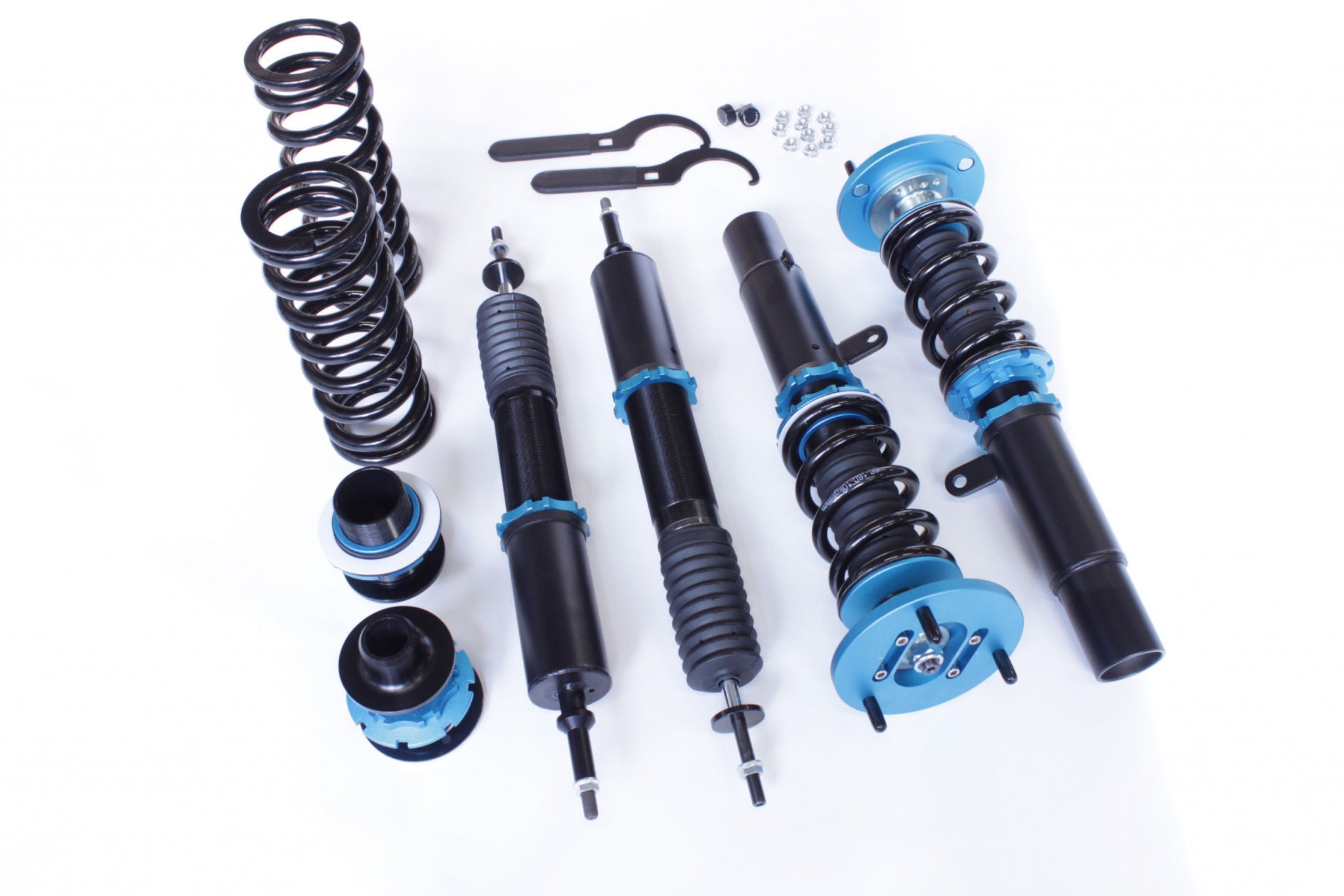

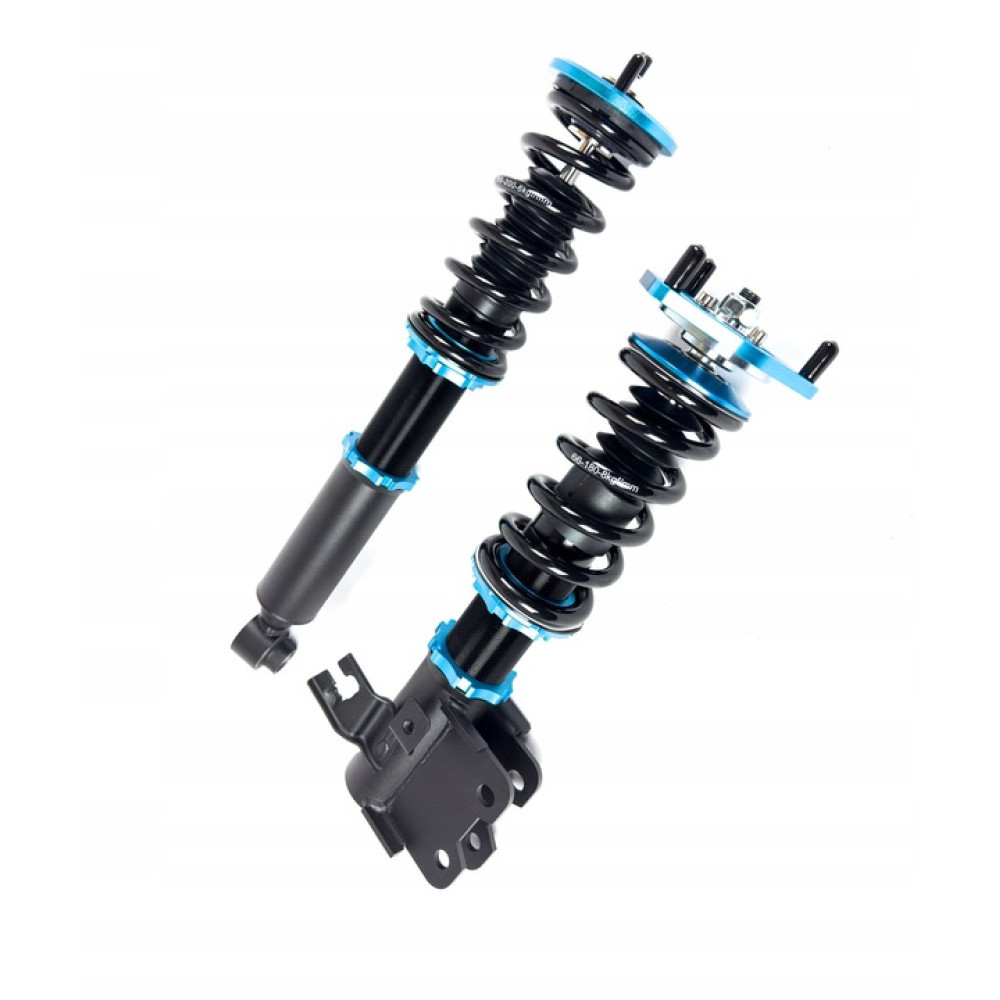

Coilover kit for Nissan 200SX 1989-1994 S13
Adjustable height and hardness.
- Springs with 8kg/mm (392 lbs/in) front and 8 kg/mm (448 lbs/in) on the rear springs.
- Springs made of SAE9254 Steel with 0.05% tolerance on the spring hardness
- The springs have a 63mm inner diameter which means you can easily find springs in other hardnesses.

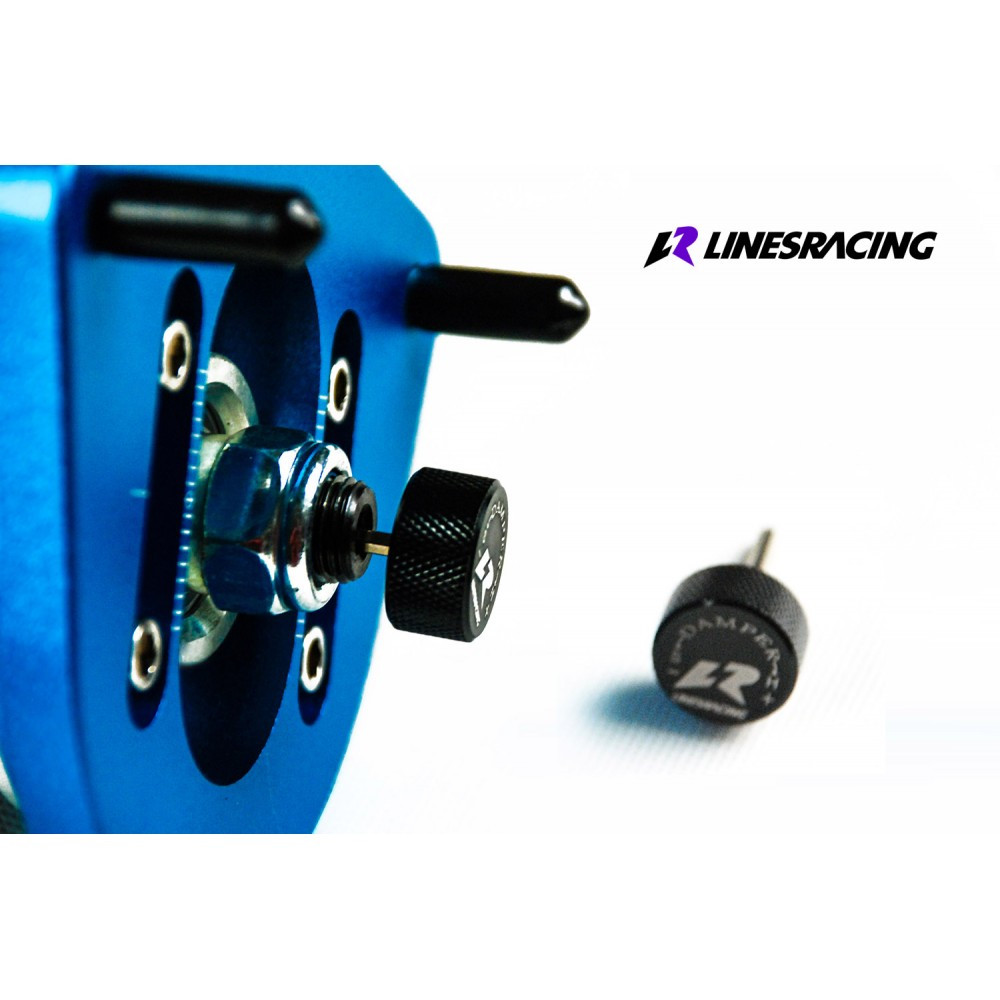

- The hardness of the shock absorbers can be adjusted in 36 positions.
- The shock absorbers are of mono-Tube design.
- Adjustable height, lowers down to 90mm, fully threaded legs (Front).
- Adjustable camber on top bearings in front and fixed aluminum/rubber top bearings in the rear.
- Comparable to BC, XYZ, Ksport, D2 etc.
Technical Data
| - 53mm OD threaded mono tube nitrogen / Oil damper. | |
|---|---|
| -Teflon floating guide piston ring for super low friction and max durability. | |
| - 45mm large port high flow piston, matched with unique shim load, stacks and jetting. | |
| for rapid opening and closing response. | |
| - Synthetic oil features powerful wear protection, cold weather startup, high temperature performance | |
| - Precise 36 damper settings. | |
| - Specially designed Microcellular Polyurethane elastomer, create a highly progressive; rising rate effect as springs approach. | |
| - Big size deep groove high load bearing for more load and easier steering handling. | |
| - High quality SAE 9254 powder coated motorsport coil. | |

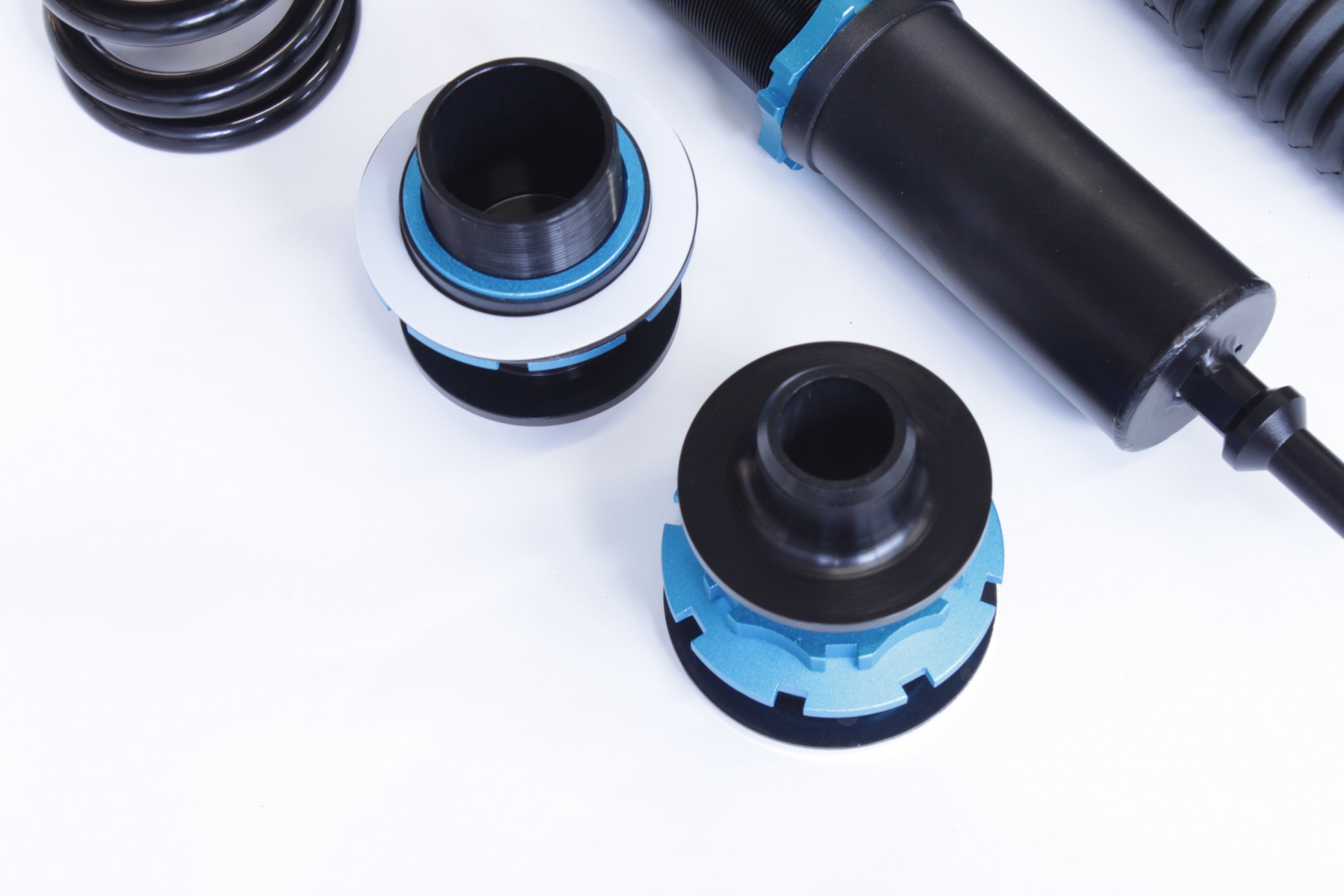

| - Forged and cnc machined aircraft aluminum locking rings\spring platforms\camber plates | |

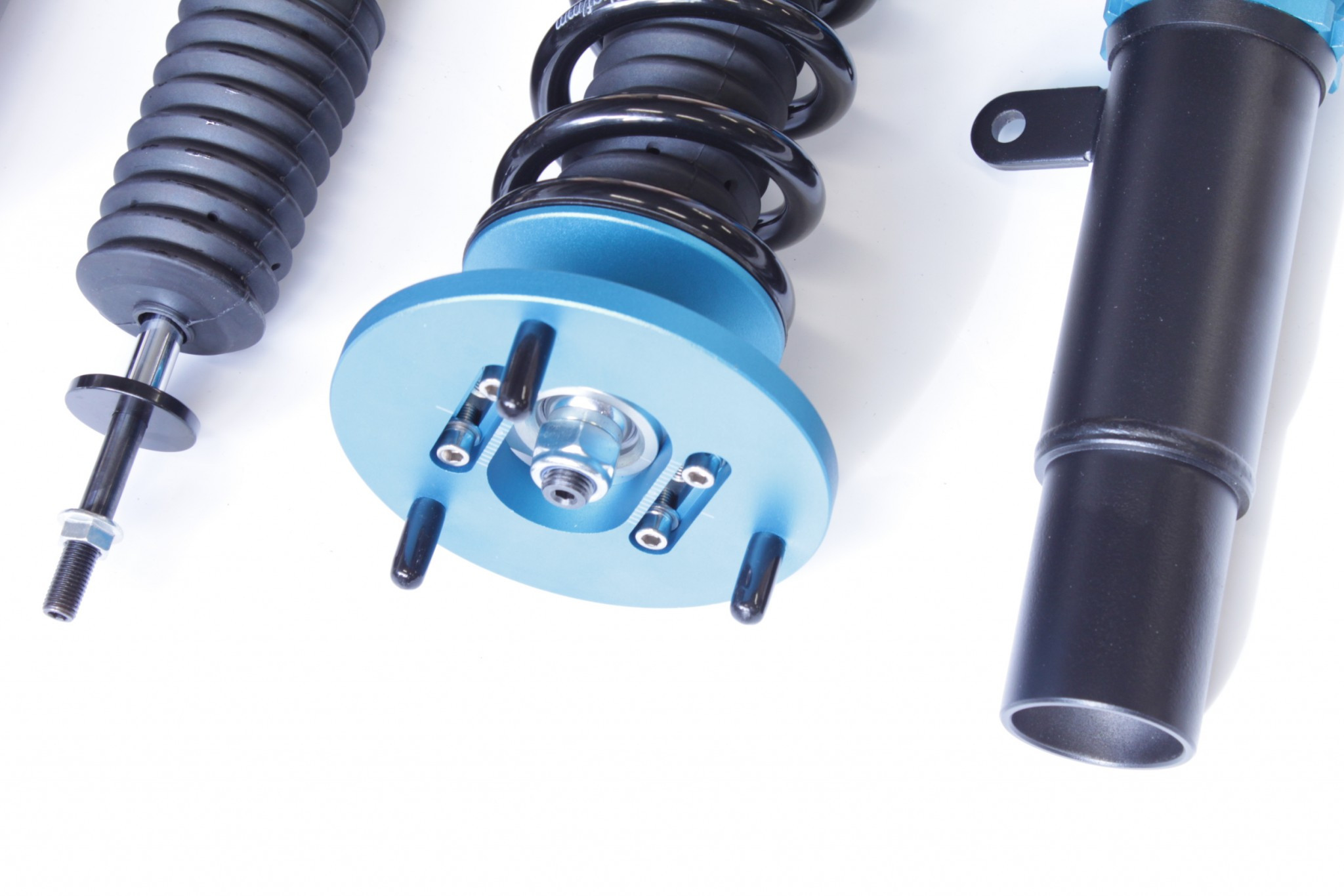

| - Adjustable Front Camber Plates | (if applicable). |
| - Rubber Camber Plates for low noise and driving comfort (if applicable). | |
| - Designed, tested and approved by a worldwide team Mems from JAPANA, USA, AUSTRALIA. | |
| Design | |
| Mono-tube | |
| Shock | |
| 53mm | |
| Damping level | |
| 36 | |
| FrontSpring Rate | |
| 8 kg/mm | |
| RearSpring Rate | |
| 8 kg/mm | |
| Camber plate | |
| Front- Adjustable, Rear unadjustable | |
| Setups | |
| Non-inverted | |
| Re-buildable | |
| Yes | |
| Features | |
| Bearing- Koyo Japan 6204z | |
| Polyurethane bushing (if applicable) | |
| Powder-coated shock body | |
| Lightweight aluminum shock body and brackets | |
| Independent ride height and spring preload adjustments | |
