Coiloverit BMW E46 98-02 (Separate springs at the rear)
Take advantage now, discounted price and free shipping!
Description
Perfect for those who do not want to spend thousands on coilovers but at the same time do not want the cheapest kit.
Rear coilover with separate spring and shock absorber for E46. (as an original) Coiloverkit BMW E46 BMW E46 320I 2001 2002 2003 2004 2005 BMW E46 323I / 323CI 1998 1999 2000 BMW E46 325i / 325CI 2001 2002 2002 2003 2004 2004 2005 BMW E46 328I 1998 2002 2003 2004 2005 2006 is not suitable for AWD OR M3 Model In order to adjust Camber, you have to grind out the plate or knock to the edge in order for the adjustments to fit.
Adjustable height and hardness.
- Springs with 8kg/mm (392 lbs/in) front and 8 kg/mm (448 lbs/in) on the rear springs.
- Springs made of SAE9254 steel with 0.05% tolerance on the spring hardness - the springs have 63mm inner diameter which allows you to easily find Springs in other hardnesses.

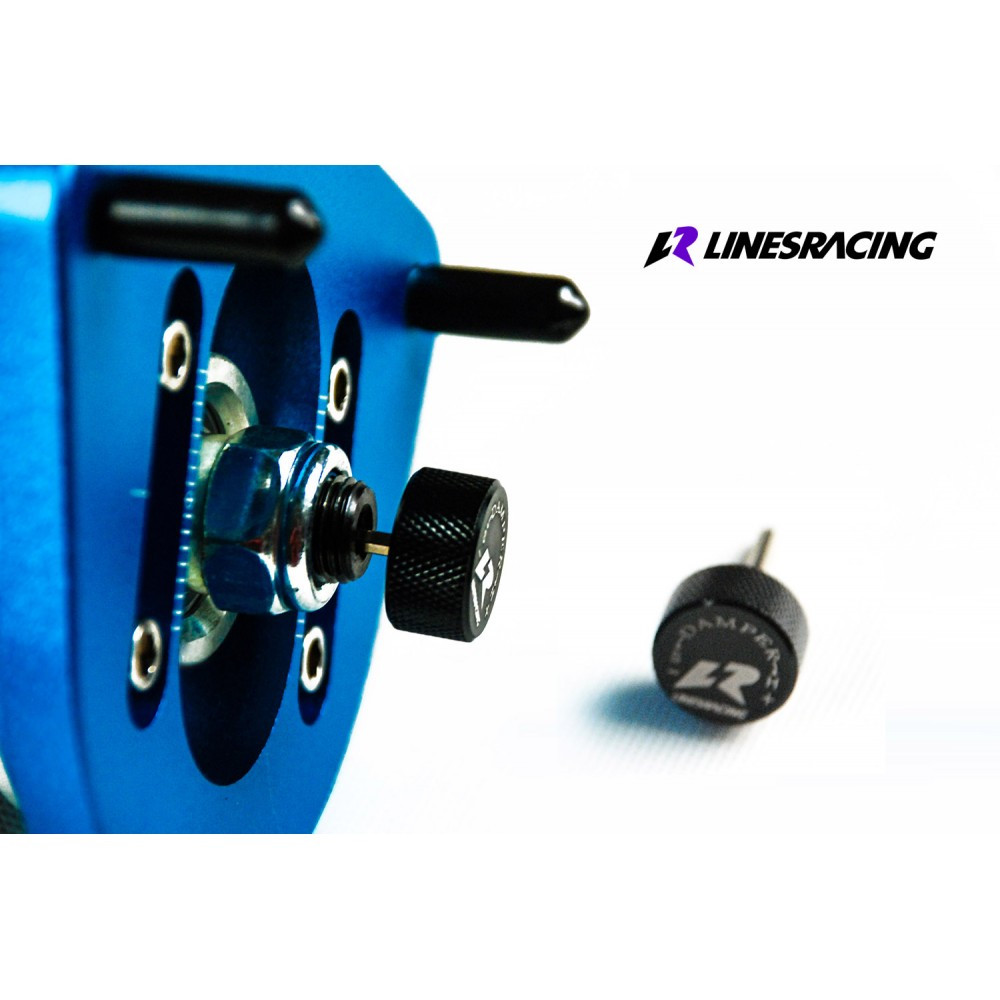

- The hardness of the shock absorbers can be adjusted in 36 positions.
- The shock absorbers are made of mono-tube design.
- Adjustable height, lowers down to 90mm, fully threaded legs (front).

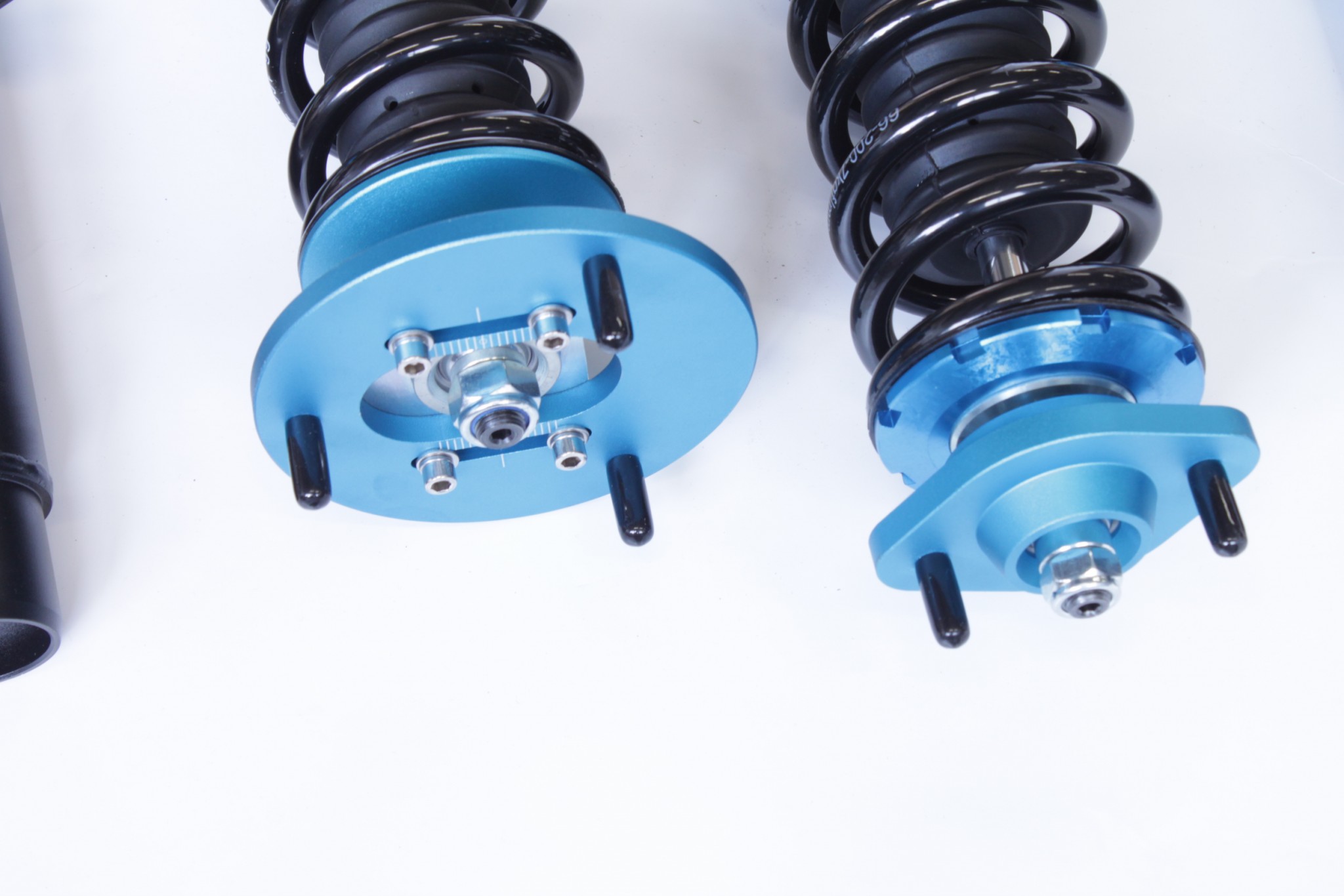

- Adjustable Camber on top layer front and solid aluminum/rubber top layer at the rear.
- comparable to bc, xyz, ksport, d2
Technical Data
| - 53mm OD threaded mono tube nitrogen / Oil damper. | |
|---|---|
| -Teflon floating guide piston ring for super low friction and max durability. | |
| - 45mm large port high flow piston, matched with unique shim load, stacks and jetting. | |
| for rapid opening and closing response. | |
| - Synthetic oil features powerful wear protection, cold weather startup, high temperature performance | |
| - Precise 36 damper settings. | |
| - Specially designed Microcellular Polyurethane elastomer, create a highly progressive; rising rate effect as springs approach. | |
| - Big size deep groove high load bearing for more load and easier steering handling. | |
| - High quality SAE 9254 powder coated motorsport coil. | |
| -Forged and cnc machined aircraft aluminum locking rings\spring platforms\camber plates | |
| - Adjustable Front Camber Plates | (if applicable). |
| - Rubber Camber Plates for low noise and driving comfort (if applicable). | |
| - Designed, tested and approved by a worldwide team Mems from JAPANA, USA, AUSTRALIA. | |
| Design | |
| Mono-tube | |
| Shock | |
| 53mm | |
| Damping level | |
| 36 | |
| FrontSpring Rate | |
| 8 kg/mm | |
| RearSpring Rate | |
| 8 kg/mm | |
| Camber plate | |
| Front- Adjustable, Rear unadjustable | |
| Setups | |
| Non-inverted | |
| Re-buildable | |
| Yes | |
| Features | |
| Bearing- Koyo Japan 6204z | |
| Polyurethane bushing (if applicable) | |
| Powder-coated shock body | |
| Lightweight aluminum shock body and brackets | |
| Independent ride height and spring preload adjustments | |
