Full suspension bush kit SPORT E46

KIT ID: 036145A

Name: Full suspension bush kit SPORT

Fit:

BMW E46 98-

Include:

2x 031248A Front Anti Roll Bar Bush 21.5-30.8mm SPORT

2x 031516A Front wishbone rear bush 60mm SPORT

or

2x 031517A Front wishbone rear bush 66mm SPORT

or

2x 031520A Front wishbone rear bush SPORT (only xi 4x4 models)

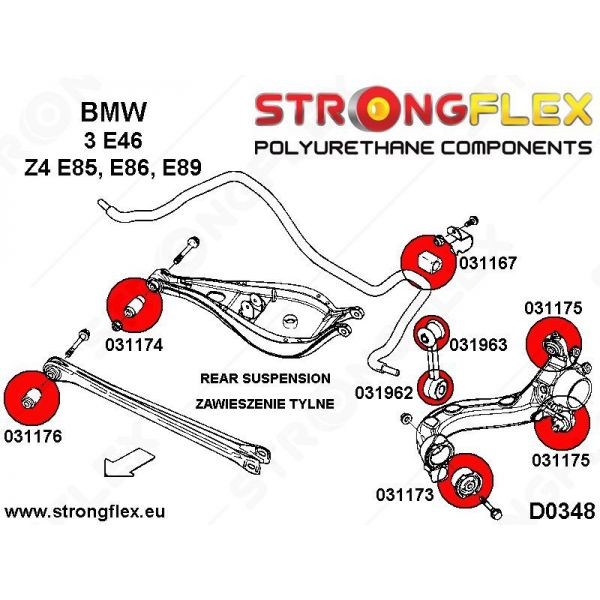

2x 031173A Rear Trailing Arm Lower Front Cotton Reel Bush SPORT

2x 031174A Rear Control Arm Upper Inner SPORT

4x 031175A Rear arm - outer bush SPORT

2x 031176A Rear Control Arm Lower Inner SPORT

2x 031167A Rear Anti Roll Bar Bush 12-25mm SPORT

2x 031413A Rear Subframe Front Bush SPORT

or

2x 031413B Rear Subframe Front Bush

2x 031414A Rear Subframe Rear Bush SPORT

or

2x 031413B Rear Subframe Front Bush

2x 031751A Rear differential front mount bush SPORTS

1x 031752A Rear differential rear mount bush SPORT

2x 031962A Rear anti roll bar link to anti roll bar bush SPORT

2x 031963A Rear anti roll bar link to arm bush SPORT

Pcs / KIT: 27

NOTE!

Please choose correct front wishbone rear bush: 031516 or 031517 or 031520

Bushings rear subframe 031413 and 031414 are included by default with a hardness 80ShA (red).

Bushes 90ShA (yellow) dedicated to the cars being prepared for the rally, drift, etc.

Before installing the bushes 90ShA (yellow) we recommend strengthening beam welding or additional struts.

The original subframe without reinforcement may be damaged.

If you are preparing a car for motorsport, etc., choose bushes 90ShA (yellow).

Diagrams:

D0319

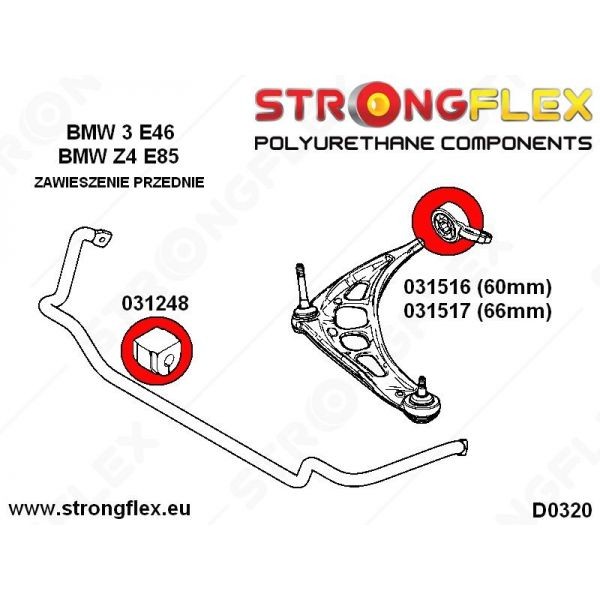

D0320

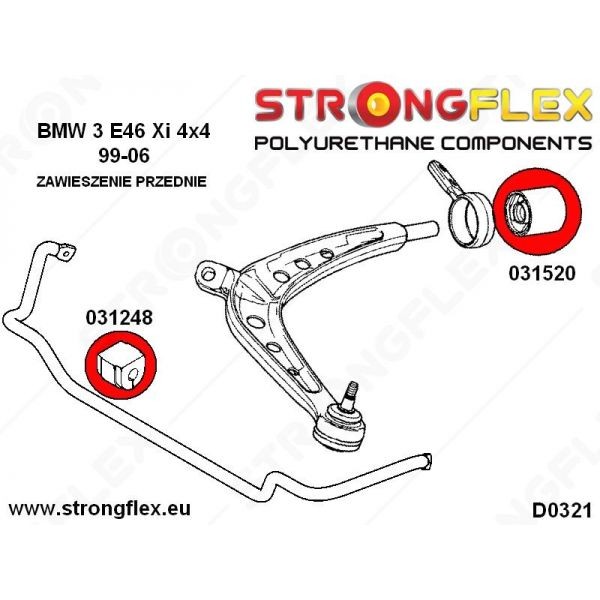

D0321

D0322

Hardness: 90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
