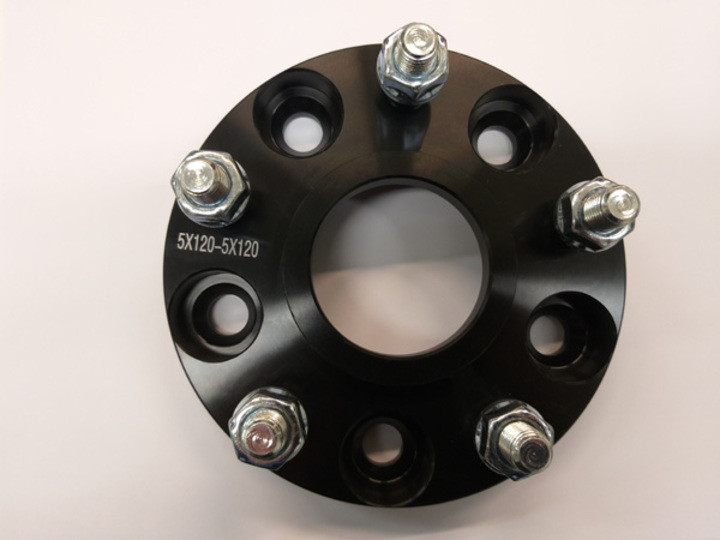

Wheel spacer BMW 5x120mm 25mm / plate

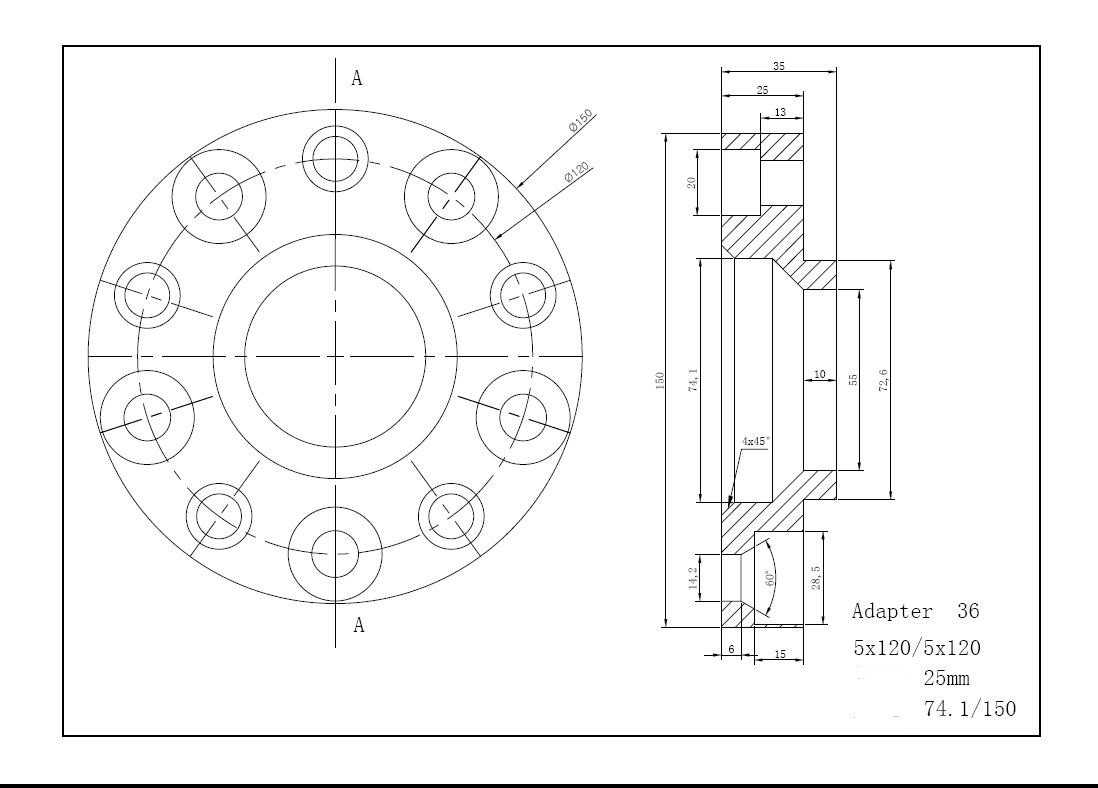

Track width increase 50mm/axle. Bolt pattern: 5x120mm. Thickness: 25.4mm/plate = 50.8mm/axle.Outer diameter 150mm Hub hole:74.1 mm. (BMW E39)Outer Hub size 72.6mm (All other BMWs)For centering the adapter on a 72.6 mm hub, use a 74.1/72.6 hub centric …
Artnr: ADAPTER36-Black
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
Track width increase 50mm/axle.
Bolt pattern:
5x120mm.
Thickness:
25.4mm/plate = 50.8mm/axle.
Outer diameter 150mm
Hub hole:
74.1 mm. (BMW E39)
Outer hub size 72.6mm (All other BMWs)
For centering the adapter on a 72.6 mm hub, use a 74.1/72.6 hub centric ring.
Type of plate:
With stud bolt and nut against the rim.
Other:
Delivered in pairs.
Bolt pattern:
5x120mm.
Thickness:
25.4mm/plate = 50.8mm/axle.
Outer diameter 150mm
Hub hole:
74.1 mm. (BMW E39)
Outer hub size 72.6mm (All other BMWs)
For centering the adapter on a 72.6 mm hub, use a 74.1/72.6 hub centric ring.
Type of plate:
With stud bolt and nut against the rim.
Other:
Delivered in pairs.
Use a hub centric ring to ensure that the adapter is properly centered on the car. Choose a hub centric ring that has the same outer diameter as the inner diameter of the adapter (74.1mm) and the same inner diameter as the diameter of your car's axle.
