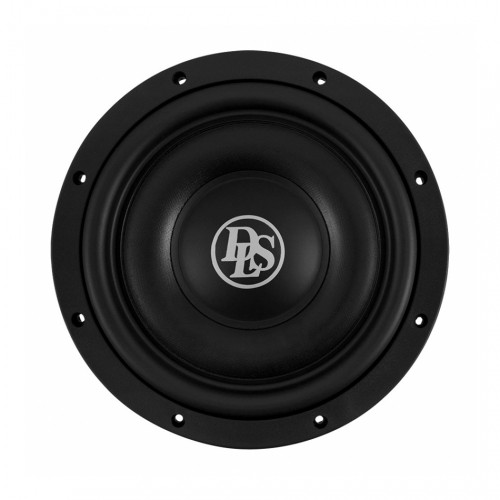

DLS Reference RCS10.D2, slimmad 10 tums bas

The DLS Reference RCS10.D2 is a well-playing slim bass with incredible control and high performance. A shallow mounting depth and optimal parameters make it possible to mount the bass element in an extremely compact box. This allows for a wide range of discreet placements, such as behind side panels, in the spare wheel well or why not in the truck?

10" bass from DLS

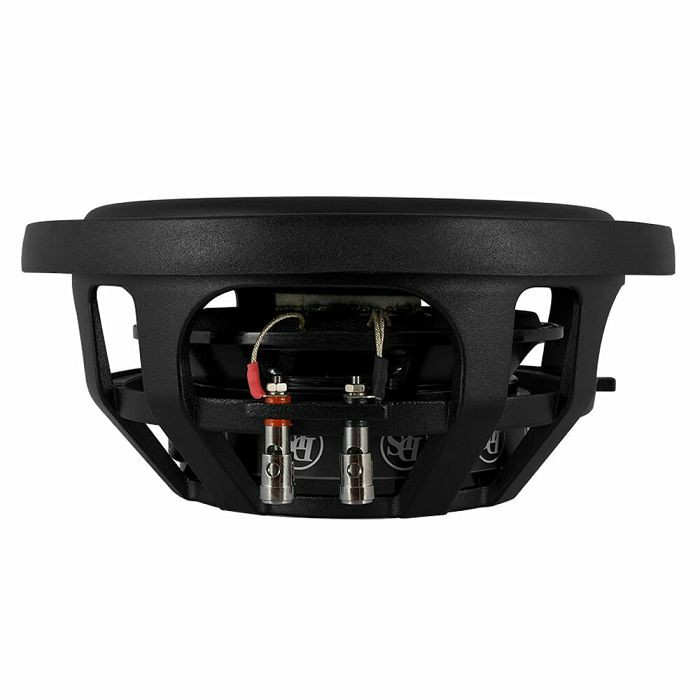

97 mm mounting depth - super slim!

Hi-fi performance

2x2 Ohm

600W RMS / 1200W MAX

Sandwich composite cone

Fantastically smooth playing

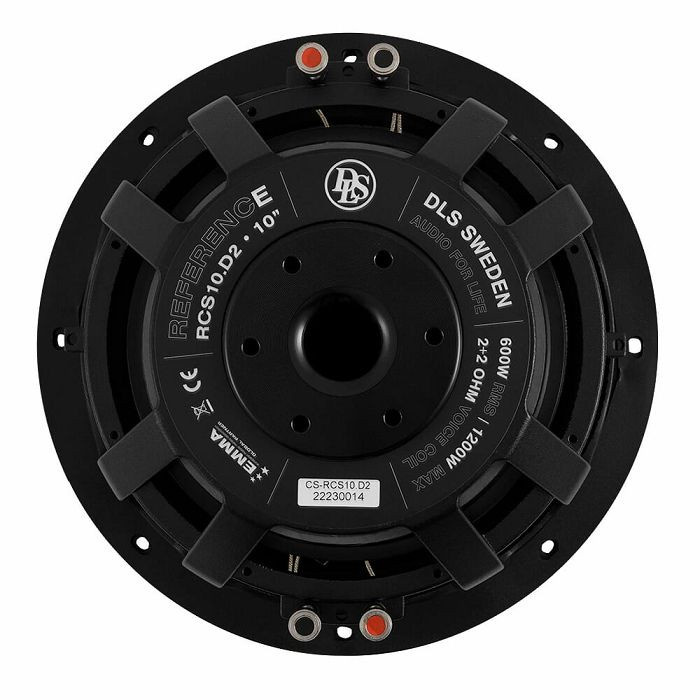

With the RCS10.D2, DLS has chosen to take an interesting direction! Focus has been placed on processing the structure of the element, which has resulted in a bass with a slim design. The magnet system has been optimized and integrated into the basket. A raised centering suspension (Spider) helps ensure that the voice coil always ends up optimally in the magnet gap - regardless of where in the movement the cone is. This provides incredible control, while maximizing performance.

Many connection options

The RCS10.D2 has dual 2 Ohm voice coils, which makes it possible to connect in several different ways. One element can be connected in 1 or 4 Ohm, two can be connected in 2 or 8 Ohm. It is entirely up to you and what your sound design looks like; if you want more control or simply want to pour on. For an RCS10.D2 a closed box of 12-15 liters, depending on how deep you want the bass to play.

Small box, big bass

DLS can highly recommend a 15 liter closed box that is airily well-filled with damping wool. This gives a fantastically musical and flexible bass that is guaranteed to give the most die-hard Hi-Fi lover their fill! If size is not something you need to think about, a bass reflex box of around 35 liters with a 4” port (with a length of 420 mm) is recommended. This gives you a tuning of 42 Hz and F3 of 34 Hz.

Can be mounted in many different places

A compact box can easily disappear behind side panels, under the cargo floor, in the spare wheel well, under the glove compartment as a front sub or why not in a truck cab? These are just a few examples of placement options for this bass.

Specifications

Fs: 33 Hz

Re: 3.8 (1.9+1.9) Ohm

Qms: 6.37

Ques: 0.51

Qts: 0.47

Cms: 0.15 mm/N

Mms: 149.9g

Bl: 15.4

Vase: 26.2L

SD: 346.4 cm²

Xmax: ±11mm

CEO: 1.7 L
