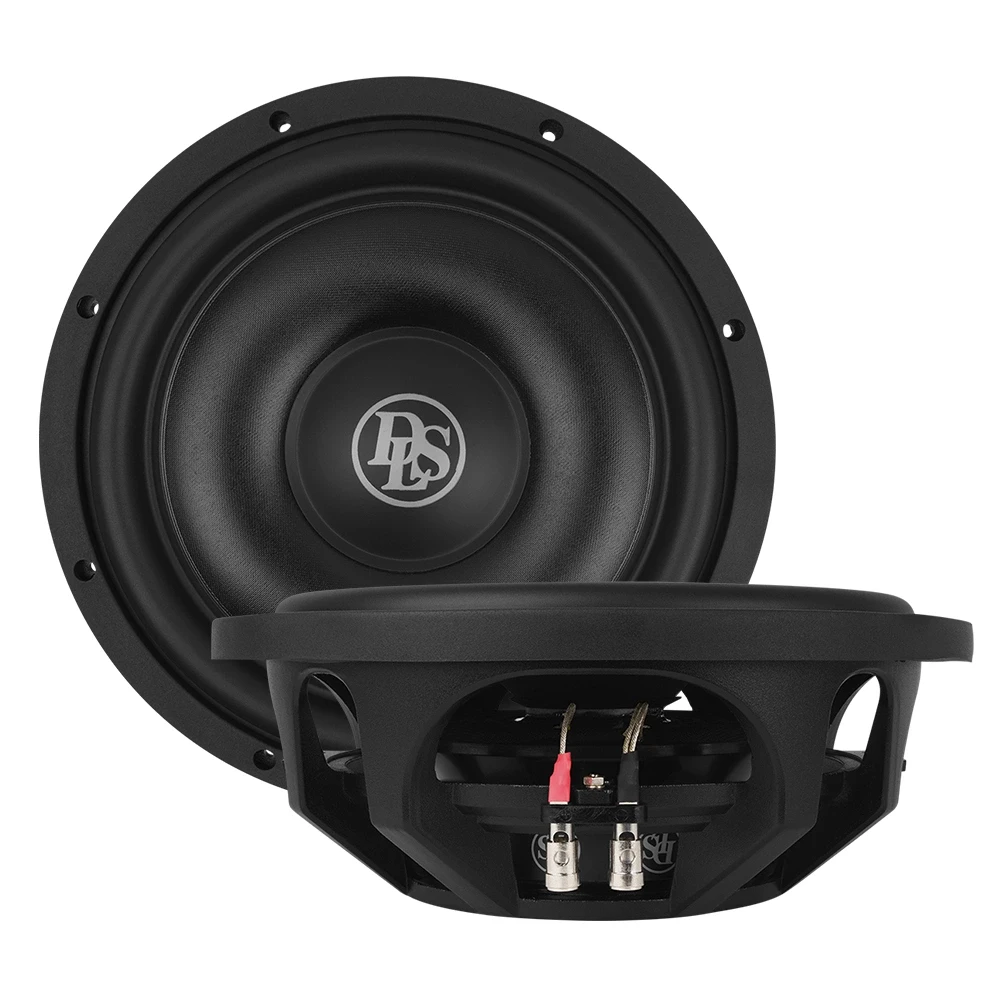

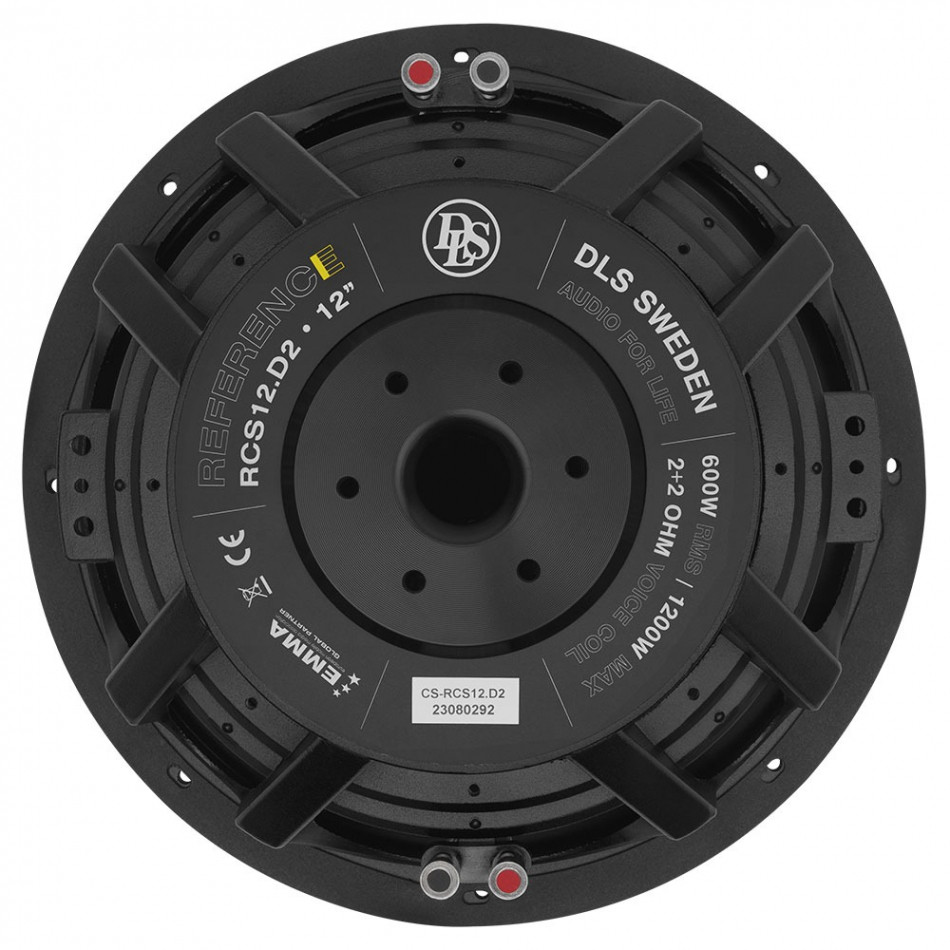

DLS Reference RCS12.D2, slimmad 12 tums bas

The DLS Reference RCS12.D2 is a slim, powerful and compact bass with incredible control and high performance. A bass driver that excels in both a closed and ported box - highly recommended for those who want to get a better bass register in their car. The shallow mounting depth and optimal parameters make it possible to mount the bass driver in an extremely compact box that allows for a wide range of discreet placements, such as behind side panels, in the spare wheel well or why not in the truck?

12" woofer from DLS

107 mm mounting depth - super slim!

Hi-fi performance

2x2 Ohm

600W RMS / 1200W MAX

Sandwich composite cone

Fantastically smooth playing

With the Reference RCS woofer, DLS has chosen to take an interesting direction! Focus has been placed on processing the structure of the element, which has resulted in a woofer with a slim design. The magnet system has been optimized and integrated into the basket. A raised centering suspension (Spider) helps ensure that the voice coil always ends up optimally in the magnet gap - regardless of where the cone is in the movement. This provides incredible control, while at the same time the performance maximized.

Many connection options

The RCS12.D2 has dual 2 Ohm voice coils, which makes it possible to connect in several different ways. One element can be connected in 1 or 4 Ohm, two can be connected in 2 or 8 Ohm. It's entirely up to you and what your sound design looks like; whether you want more control or simply want to pour more. For an RCS8.D2, a closed box of 20-33 liters or a ported box of 42 liters is recommended if you want to dig really deep.

Small box, big bass

In the right box, this bass element will offer a fantastically musical and responsive bass - guaranteed to satisfy the most die-hard Hi-Fi lover! A compact box can easily disappear behind side panels, under the cargo floor, in the spare wheel well, under the glove compartment as a front sub or why not in a truck cab? These are just a few examples of placement options for this base.

Specifications

Fs: 29 Hz

Re: 3.8 (1.9+1.9) Ohm

Qms: 5,601

Qes: 0.452

Qts: 0.418

Cms: 0.165 mm/N

Mms: 178.5g

Bl: 21.7

Vase: 67.2L

SD: 530.9 cm²

Xmax: ±11mm

CEO: 2.9L
