Audi S2/RS2/S4/S6 Turbo Manifold KKK Flange
Artnr: h2m-s2s4kkk
Stock Status: 4-5 Day delivery time
4-5 Day delivery time
Description

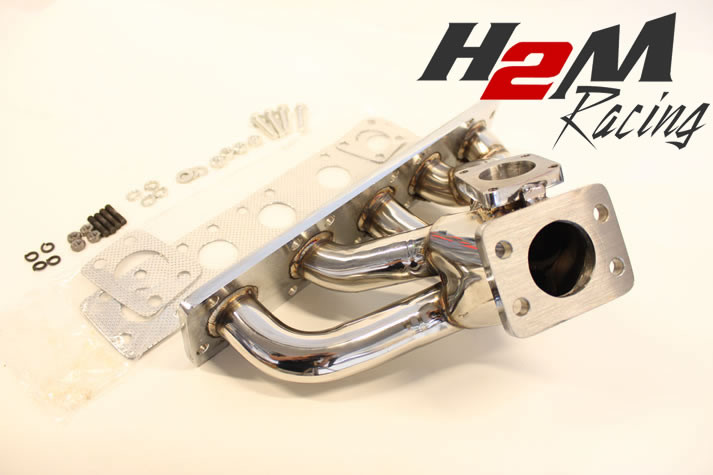

Stainless manifold for Audi S2 RS2 S4 S6
KKK Flange for the turbo
12mm material thickness in flanges, flanges are made of black steel.
Very high quality. But there are fine adjustments to be made, with match porting. A bolt hole must be welded again and re-drilled, when using the original WG.
The flange towards the top should preferably be slotted between the ports. Make 10mm notches with an angle grinder, for example.
Always use flex pipes on the downpipe and also flex pipes towards the WG as it is original. As well as brace the turbo towards the top.
Gaskets must be purchased for 275kr
