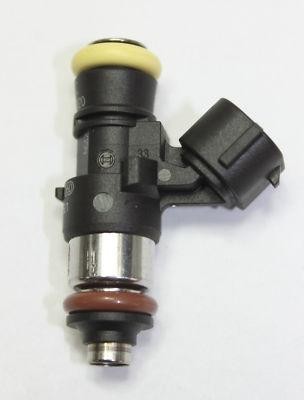

Bosch 2200cc injector (Short model)
Artnr: 280158821
Stock Status: 4-5 Day delivery time
4-5 Day delivery time
Description
Short Pico model of Bosch 2200cc
Injector Bosch EV14 for Gasoline, E85, Methanol, CNG Etc
Size: 2200cc at 3.0Bar
High ohmic (9 ohm)
Flow:
2200cc/min at 3.0Bar
2550cc/min at 4.0Bar
2865cc/Min at 5.0Bar
3155cc/min at 6.0Bar
3350cc/Min at 7.0Bar
Original no.: 0280158821
Other Data:
O-rings: Viton 14.5mm
cc-measurement between the o-rings: 37mm
Contact: Denso/Sumitomo
NOTE: Must not be run on VP C16 or Q16 (or other fuel with MBTE)
Pre-filter of <40micron is recommended, as these do not have a built-in filter
Must be stored free from Oxygen
Dead times at 3 bar:
8v: 1.550ms
10v: 0.985ms
12v: 0.735ms
14v: 0.525ms
16v: 0.400ms
