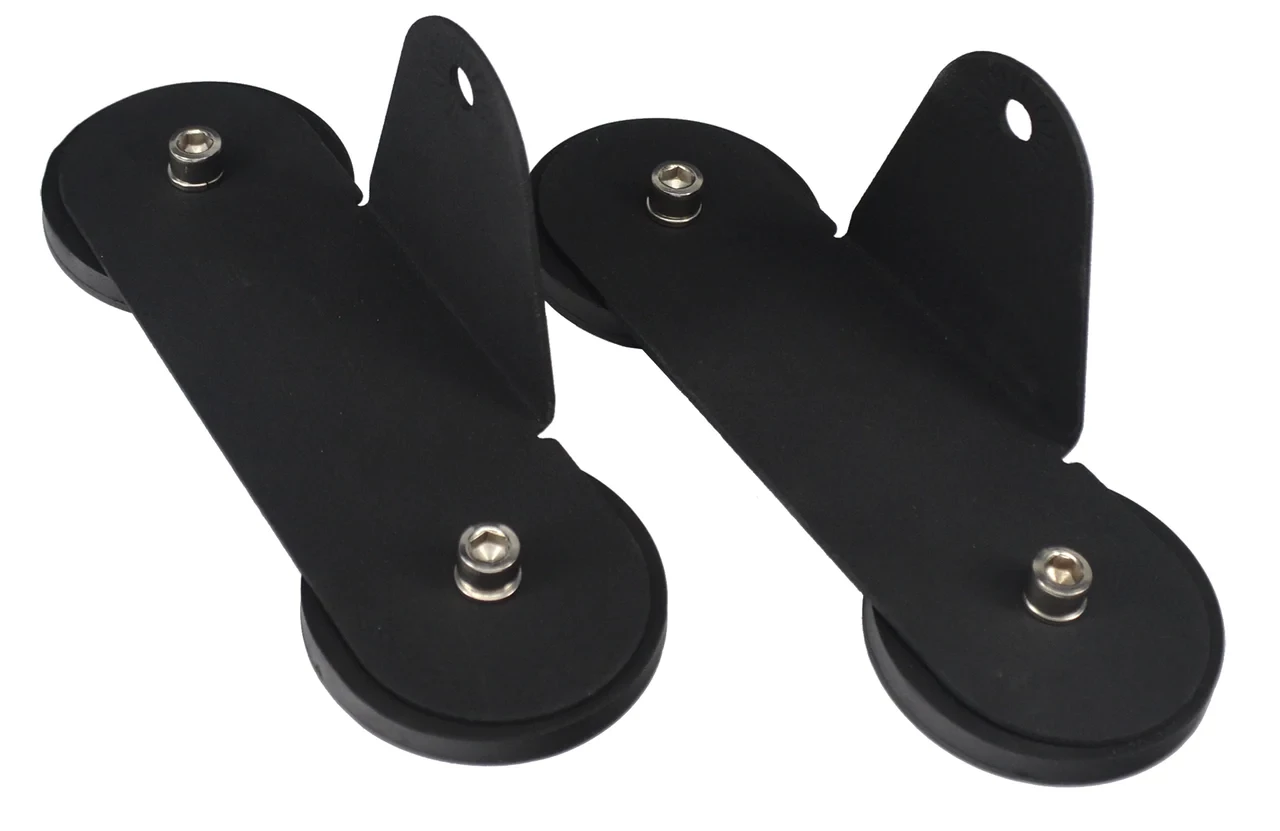

Magnetic holders for e.g. LED ramp (small, magnetic mount one pair)

Description :

These magnetic holders are delivered in pairs and are perfect if you want to mount an LED ramp, work lights, extra lights, etc. without damaging the vehicle with screws and drilling. The feet on the holders are made of rubber.

Whether you should have the smaller or larger holders depends on how big and heavy your lighting is and where it will be placed (air resistance). Generally, a ramp that is up to 30" (80 cm long and 4 kg heavy) will work with the smaller model holder while a larger ramp of 41" (around a meter long and 6 kg heavy) will need the larger model holder. If you are unsure, always choose the larger model.

NOTE: Since the condition of the car (such as thickness of sheet metal, paint, etc.) and the size and weight of the lighting differ from case to case, common sense applies when mounting. Therefore, always ensure that the mounting is suitable for the intended use! In some exceptional cases, the magnetic holders may be inadequate for the task and another type of mounting may be safer and more advantageous.

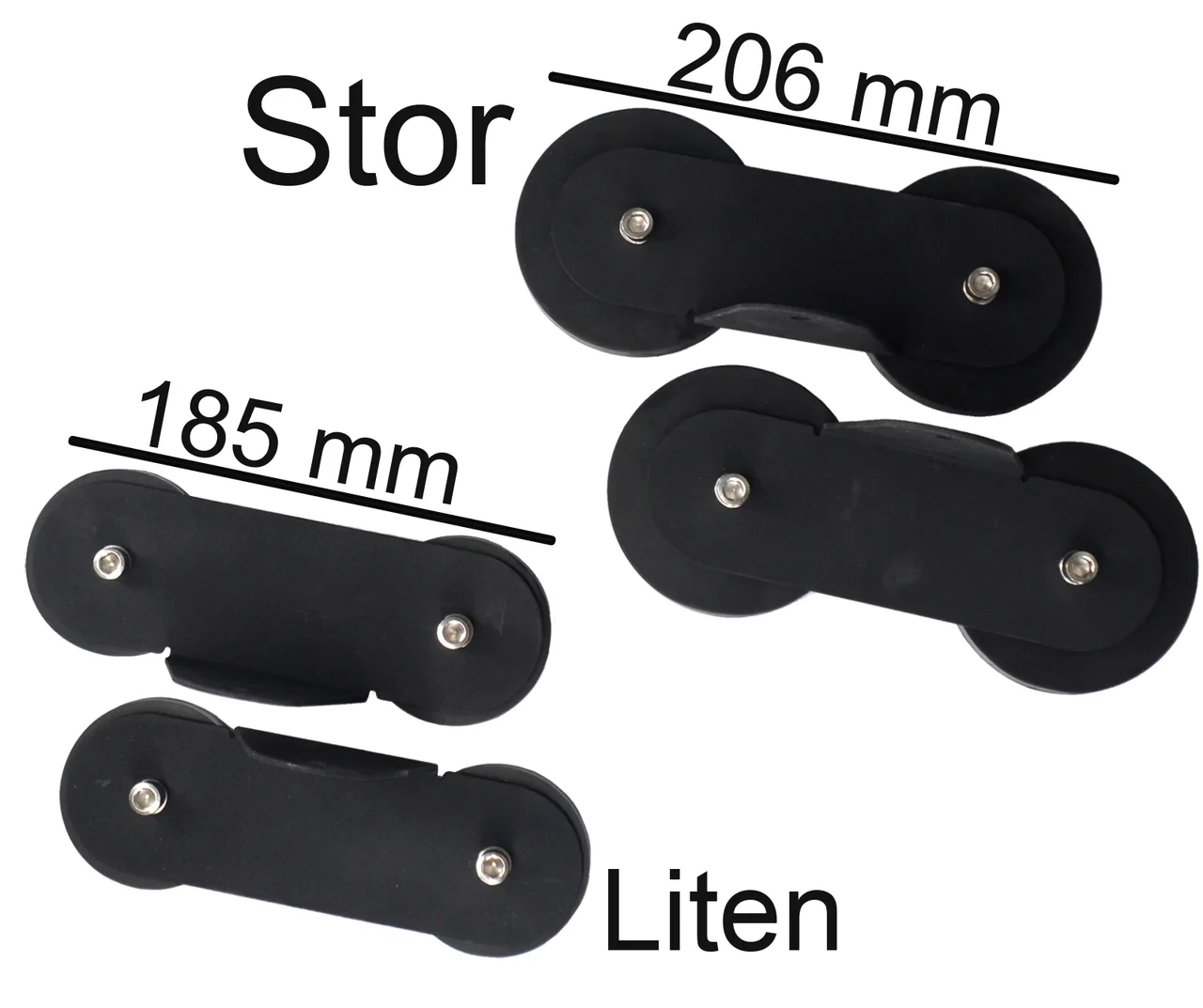

What distinguishes the models is the double number of magnets in each foot (higher magnetic strength) and the size of the foot - 8.7 cm (large) and 6.5 cm (small).

Small model (3346013):

Number of magnets: 12 pcs (6 pcs in each foot)

Foot diameter: 65 mm

Length: 185 mm

Width: 65 mm

Depth/height: 80 mm (from the feet up to the upper edge of the holder)

Distance to attachment point: 57 mm (from the plate that sits on the feet to the center point of the hole)

Hole on the holder is intended for M8 bolts
