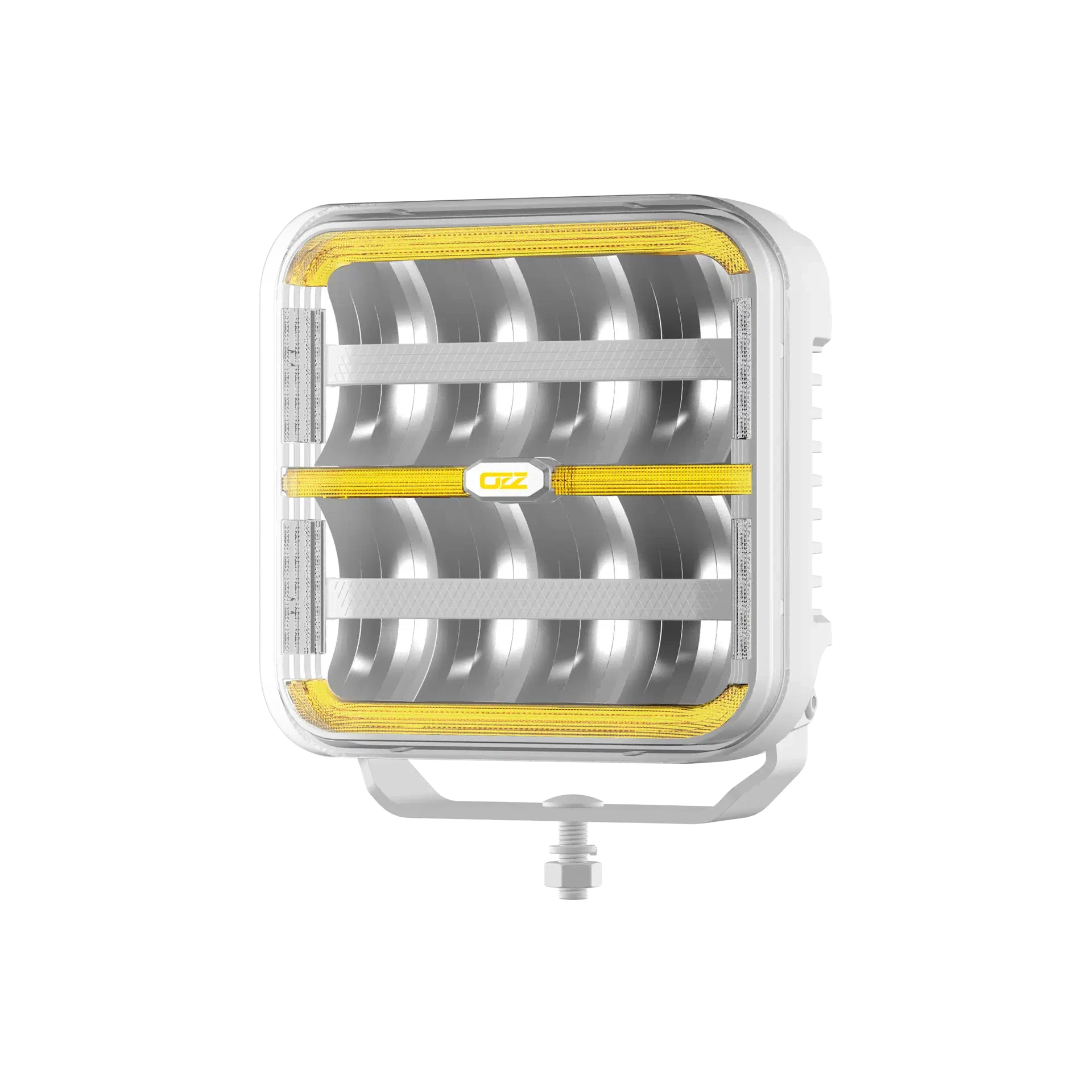

BriodLights Olympus 9" (copy) (copy) (copy) (copy)
OPTIBEAM OPERATOR 9”
Artnr: 88115
Stock Status:
In Stock
Delivery Status: 1 day delivery time
Arrives the next business day
Description
OPTIBEAM OPERATOR 9”
X-parking light, orange/white
(both with their own wire)
Input voltage 9-36 V
Power consumption 7.70 A @ 13,7 V
LED 8 x Cree
Light output (theor. / tested) 10200 lm / 7900 lm
Color temperature 5700 K
Distance 1 lux @ 430 m
Cable / connection 220 cm
Size Ø 218 x 84 mm
Approvals R112, ref. 50, R7, R10
Product number 1605-NS8LEDA
Technical Data
| Ljuskälla | LED |
| Spänning | 9-32V DC |
| Teoretisk effekt | 160W |
| Faktisk förbrukning | 110W (boost) 60W (E-märkt) |
| Teoretisk lumen | 14 000 |
| Faktisk lumen | 8000 (boost), 5000 (E-godkänd) |
| Kelvin | 5000 K |
| Ljusbild | Combo (driving) |
| 1 lux på | 650 m (boost), 480 m (E-godkänd) |
| Positionsljus | Vitt och orange (dynamiskt) |
| Varningsljus | Ja, orange |
| IP-klass | IP68/IP69K |
| Anslutning | DT6 + 1 kabel |
| Kabellängd | 950 mm |
| Material hus | Aluminium |
| Material lins | Polykarbonat |
| Arbetstemperatur | -40°C - +60°C |
| Mått | L178xD85xH178/198 mm |
| E-godkännande | ECE R148, R149, R65 |
| Referenstal | 50 |
| EMC | ECE R10 |
