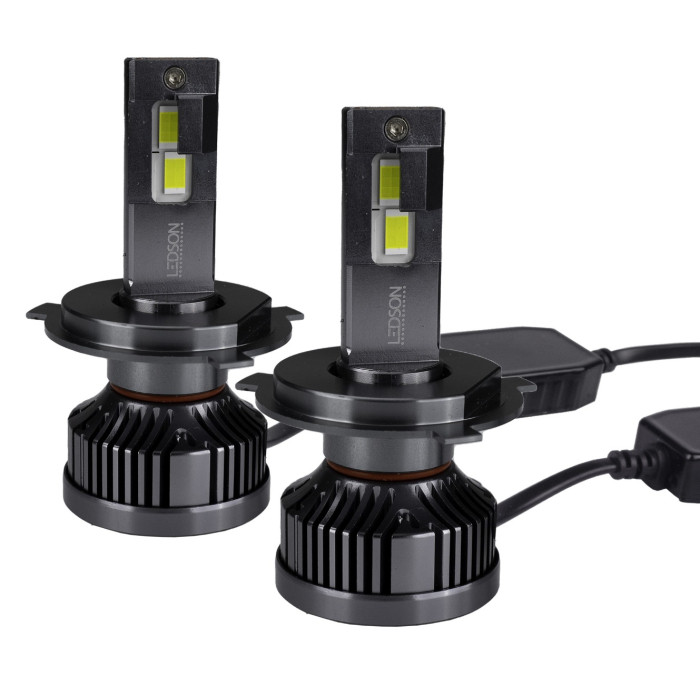

LEDSON Xtreme DX LED för halogen-strålkastare (H4)

Description

Ledson Xtreme DX are unique on the market in converting original xenon to LED! But even if you have halogen on your low beam or high beam, we have DX lamps so that you can upgrade to LED with all its advantages.

With Xtreme DX you get a better light image than you have with original xenon & halogen lamps, with a wider light field which means you can see even better even on the side of the road. The lamps give you up to 220% brighter light and have a longer lifespan of approximately 30,000 hours as well as instant ignition.

Installation is incredibly easy as Xtreme DX is connected directly to your current original ballast (if you have xenon) or connected to the vehicle's original connector (if you have halogen). The lamps are Plug & Play which makes it as easy as changing a xenon lamp or incandescent lamp. See more of the road and make your driving safer with a much brighter light where you avoid time-consuming lamp changes!

Xtreme DX is a complete kit for LED conversion of your original xenon lamps and halogen lamps on your half beam and full beam. Works for passenger cars (12V) and trucks (24V) if you have xenon and for passenger cars (12V) if you have halogen.

Xtreme DX detailed information

Easily convert original xenon & halogen to LED

Plug and Play - connects directly to your original ballast (if you have xenon)

Plug and Play - connects directly to your original connector (if you have halogen)

Includes two Xtreme DX lamps for a complete conversion

Up to 220% brighter light

A light image that is at least as sharp and beautiful as original xenon/halogen

Longer lifespan (30,000 hours)

6000-6500K color temperature

Up to 6000 lumens per lamp

Works with 12V and 24V (for xenon) and 12V (for halogen)

Canbus-safe (does not give error messages on most vehicles)

EMC-safe ECE R10 (does not cause interference in radio)

Effective cooling with fan + heat sink

36 month warranty

Installation in the vehicle (xenon):

If necessary, detach the headlight

Check how the electrical connector is mounted on the existing bulb and detach it

Release any spring that holds the xenon bulb, then remove the xenon bulb

Only for D2S/R or D4S/R: Install the removable mounting sleeve in the headlight

Install the Xtreme DX bulb in the headlight, connect the power unit to the original ballast

Place the power unit and ballast in the headlight

Done!

Installation in the vehicle (halogen):

Loosen any screws holding the lamp holder (some lamp types do not have screws) and then mount the lamp holder in the lamp housing

Insert the Xtreme DX lamp in the headlight and rotate to the correct position

Finally connect the lamp to the driver and the vehicle's original connector

Done!

Not sure which lamp type/socket you have?

Check your car's manual or contact us at 042 453 33 30 or info@diodhuset.se and we will help you!

Xtreme DX is available for xenon sockets (12V and 24V):

D1S / D1R (artnr 312129)

D2S / D2R (artnr 312229)

D3S / D3R (artnr 312329)

D4S / D4R (artnr 312429)

D5S (artnr 312529)

D8S (artnr 312829)

Xtreme DX is available for halogen sockets (12V):

H1 (artnr 313129)

H3 (artnr 313329)

H4 (artnr 313429)

H7 (art no. 313729)

H7 for VW Golf 6 & 7, VW Caddy and Mercedes Sprinter (art no. 313727)

H8,H9,H11 (art no. 313229)

H13 (art no. 314329)

H15 (art no. 314729)

HiR2/9012 (art no. 314669)

HB1/9004 (art no. 314429)

HB3/9005 (art no. 313529)

HB4/9006 (art no. 313629)

HB5/9007 (art no. 314529)

The lamps are not E-marked and therefore there is no approval for use of the product in traffic.
