B20 2x Weber Intake
Artnr: 5040
Stock Status: 1-3 Days delivery time
The product is ordered per order.
Description

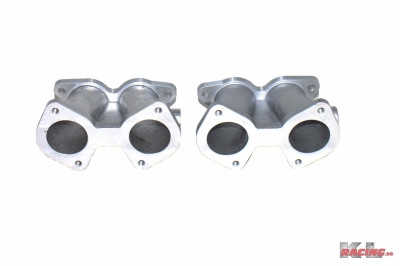

Carburetor intake 2x weber / Dellorto etc
Engine: Volvo B20
Carburetor size: Intended for 45mm carburetors
But you can grind them up to 50mm
One intake is threaded for Vacuum to servo
Thread: 1/4NPT
Length: approx 97mm
Inclination: approx 5 degrees
M4900B
Price per Pair
If you want a whole base plate for the air blanket, the CC-Dimension between cylinder 2 and 3 = 123mm
We link to a few different base plates we have
we also link to stud bolts for the top and carburetors
Thickness on the flange towards the top: 11mm
Diameter towards the cylinder head: 40mm (fits outside the rings that are in the intake duct)
