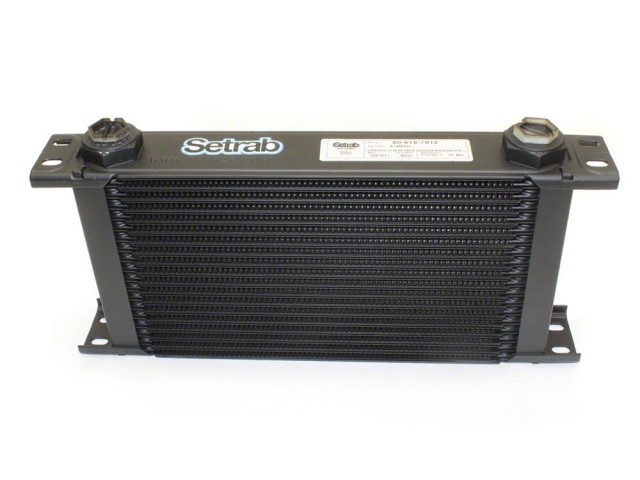

Setrab Oil Cooler 19 Rows 283MM
Swedish-made oil cooler from Setrab made of aluminum painted in black epoxy paint. The cooler has high cooling effect and can withstand a working pressure of up to 10 bar. Oil cooler developed to cool oil from both engines and automatic transmissions. …
Artnr: 6-619
Stock Status: 1-3 Days delivery time
The product is ordered per order.
Description
Swedish-made oil cooler from Setrab made of aluminum painted in black epoxy paint. The cooler has high cooling effect and can withstand a working pressure of up to 10 bar. Oil cooler developed to cool oil from both engines and automatic transmissions.
Number of rows: 19
Connections: M22 internal, if you want a different thread, see the category Mounting
Width (A): 283mm
Height (B): 145.6mm
Center-Center between connections (C): 242mm
Center-Center screw holes (D): 310mm
Total width (E): 330mm

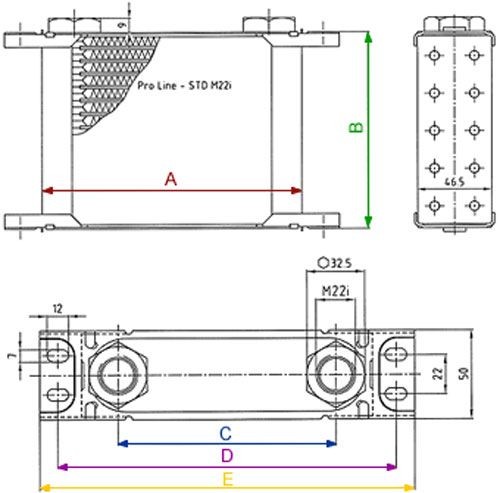

* Dimensions A to E are marked on the picture drawing.
