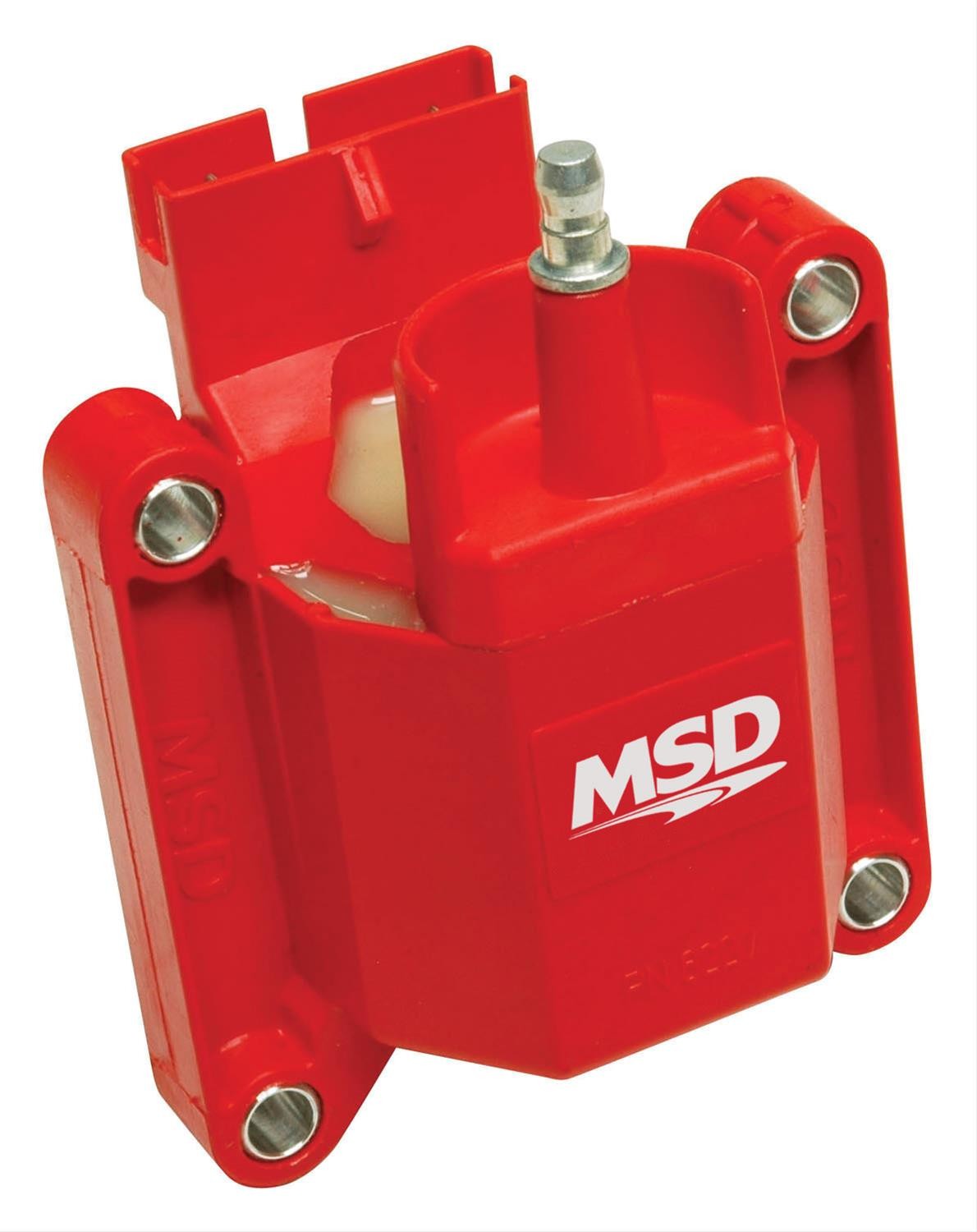

MSD Blaster OEM Replacement Coils (Ford)

Primary Resistance: 0.680 ohms

Coil Internal Construction: Epoxy

Coil Wire Attachment: Male/HEI

Coil Color: Red

Maximum Voltage: 44,000 V

Turns Ratio: 100:1

Secondary Resistance: 4.80K ohms

Inductance: 5.60 mH

Peak Current: 220 mA

Spark Duration: 300 uS

Mounting Bracket Included: No

Coil Wire Included: No

Ballast Resistor Included: No

Coil Shape: Square

Quantity: Sold individually.

Notes: When using an MSD ignition system, a wiring harness must be purchased.

CARB EO Number: D-40-37 (pdf)

To see a list of qualifying vehicles, enter CARB EO Number D-40-37

Emissions: California EO Approved

In-Store Pickup: Choose In-store pickup (OH, NV, GA, TX) on our web site.

MSD Blaster TFI coils powers up your Ford ignition system. With windings and construction similar to MSD's Blaster 2 coils, these coils have an increased turns ratio, plus lower primary resistance than your stock coil. MSD Blaster TFI coils will work with stock TFI ignition systems as well as MSD-equipped cars and trucks. Looking to get a little more output voltage from your Ford ignition system? Just bolt in one of these MSD Blaster TFI coils.
