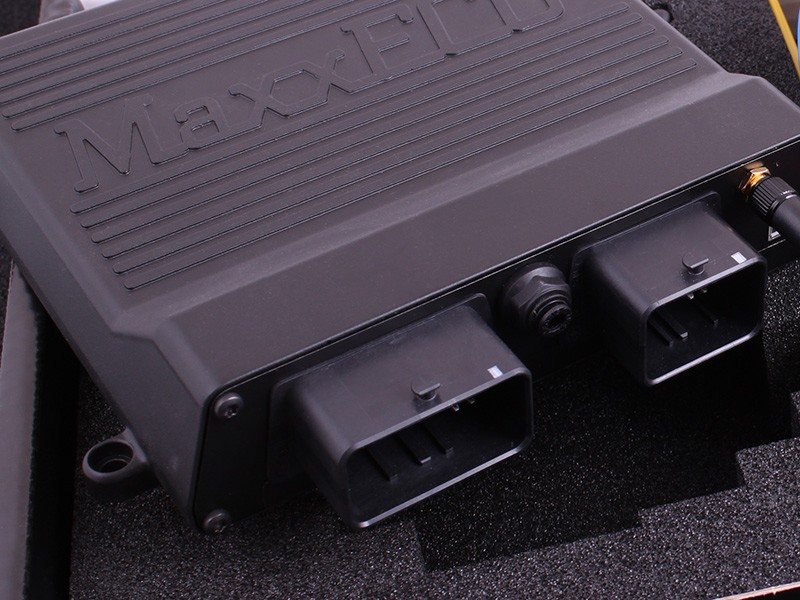

MaxxECU RACE loose unit in box
Description
MaxxECU RACE, based on MaxxECU PRO and uses the same easy-to-use and powerful software to give you as the user total engine control!
Quick facts:
-Controls up to 8 cylinders sequentially (12 in wasted)
-Built-in MAP sensor for boost pressure up to 3bar (400Kpa).
-Built-in driver for broadband lambda (the probe directly into the wiring harness without external electronics).
-Super fast and secure USB communication between ECU and PC.
Technical spec:
-Controls up to 8 cylinders sequentially (12 in wasted spark)
-8 injector outputs (low and high ohm injectors)
-8 ignition outputs
-8 inputs for exhaust gas temperature sensor (EGT).
-Built-in MAP sensor for boost pressure up to 3bar (400Kpa).
-Built-in drivers for broadband lambda probe (LSU 4.2 and 4.9)
-E-Throttle support
-6 extra 0-5v inputs
-2 extra temperature inputs
-4 extra digital/VR inputs
-9 extra outputs. GPO 1-8,10 (2A), GPO 9 (5A)
-4 extra motor outputs. GPO 11-14 (2A)
-Knock sensor support
-2 extra high-power outputs (+12V), 2A
-CAN bus
-Aluminum case
-Connectors, software and settings fully backwards compatible with MaxxECU STREET/V1/PRO. Easy upgrade.
