TPS for individual dampers
Artnr: ATP200
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description

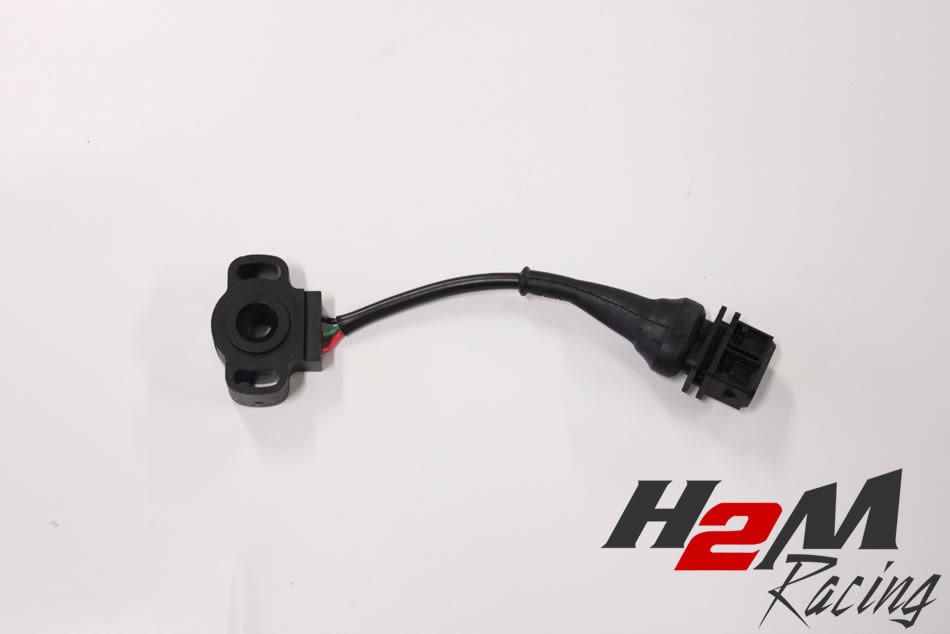

TPS that fits directly on the individual throttle bodies from FAJS and Jenvey.
Has a spring-back function, so it is mounted slightly twisted on the shaft so that it is slightly in tension for the best accuracy of the signal.
Of the highest quality from WEBER / Wabash
Dimensions: CC 33mm
The width of the grooves for chamfering 4.5mm
Has a spring-back function, so it is mounted slightly twisted on the shaft so that it is slightly in tension for the best accuracy of the signal.
Of the highest quality from WEBER / Wabash
Dimensions: CC 33mm
The width of the grooves for chamfering 4.5mm
Shaft dimensions 8mm
Thickness when chamfering 6mm
Black - Ground
Green - Signal
Red -5V
Max resistance 5K Ohm
Outer dimensions 43x34x14mm
Technical Data
| Svart - Jord | |
|---|---|
| Grön - Signal | |
| Röd -5V | |
| Max resistans 5K Ohm | |
| Yttermått 43x34x14mm |
