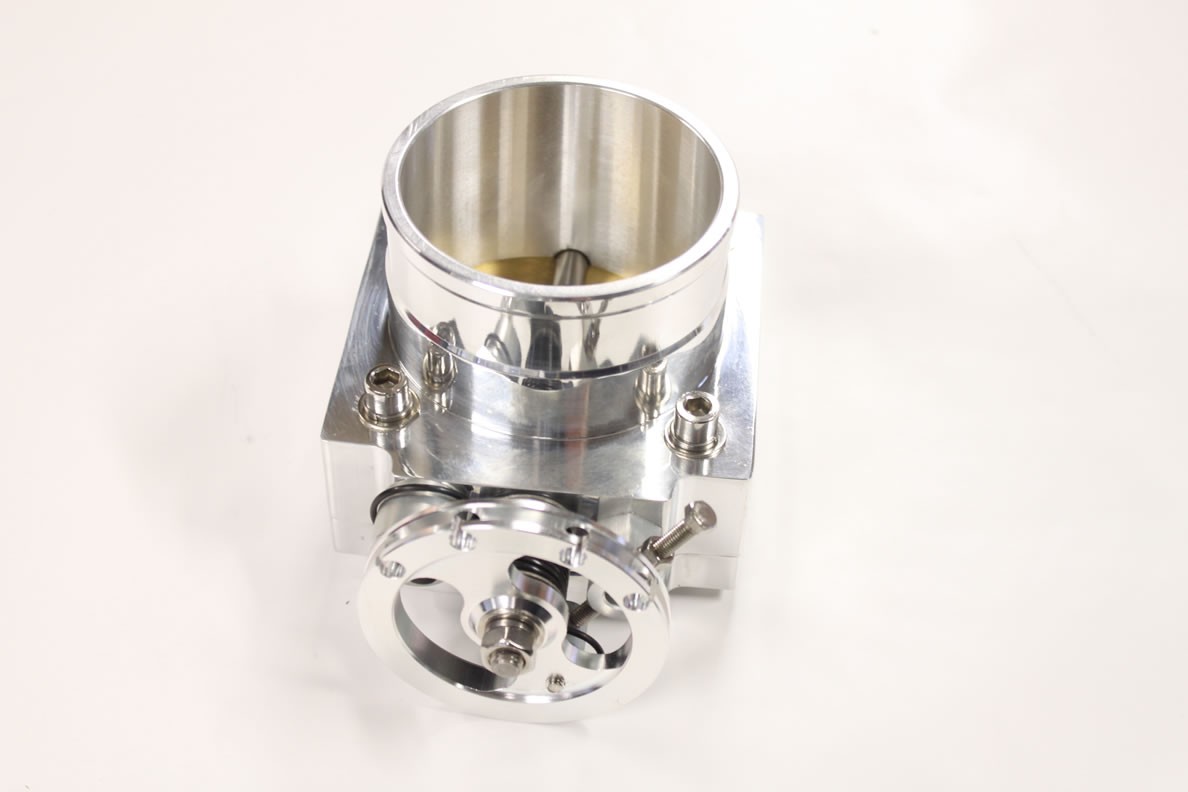

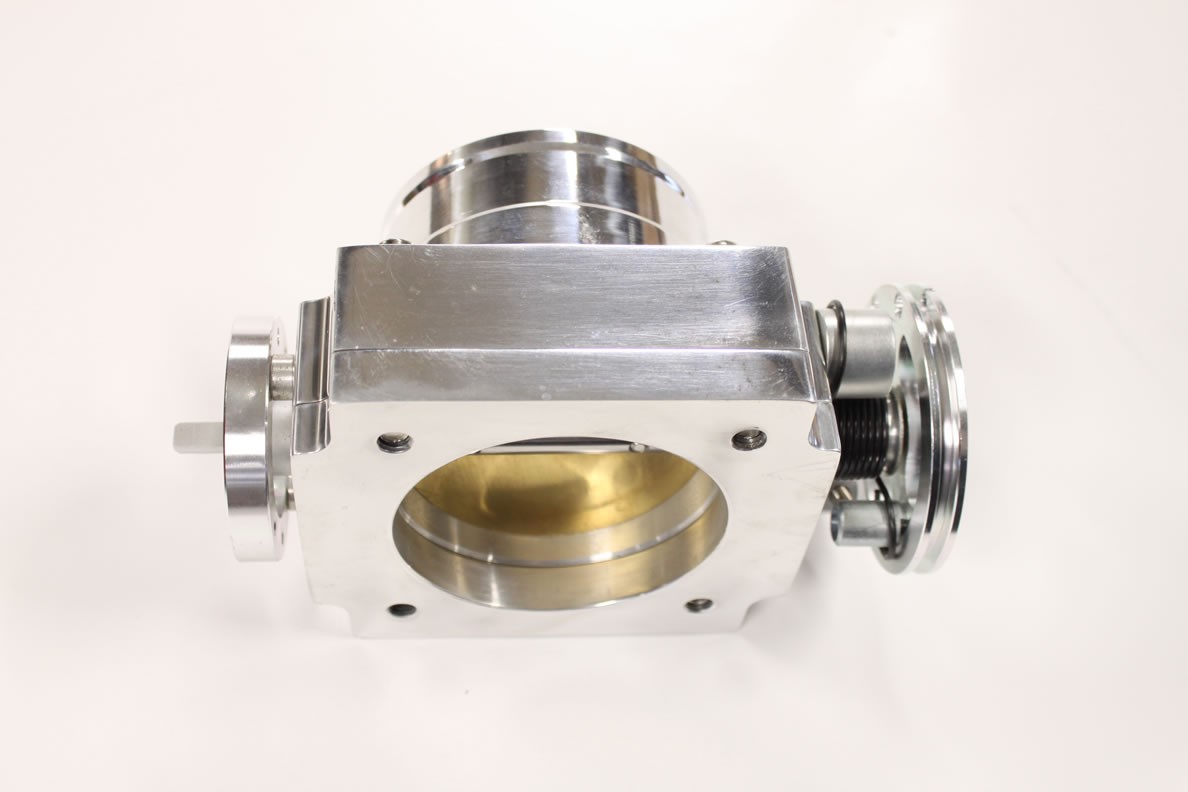

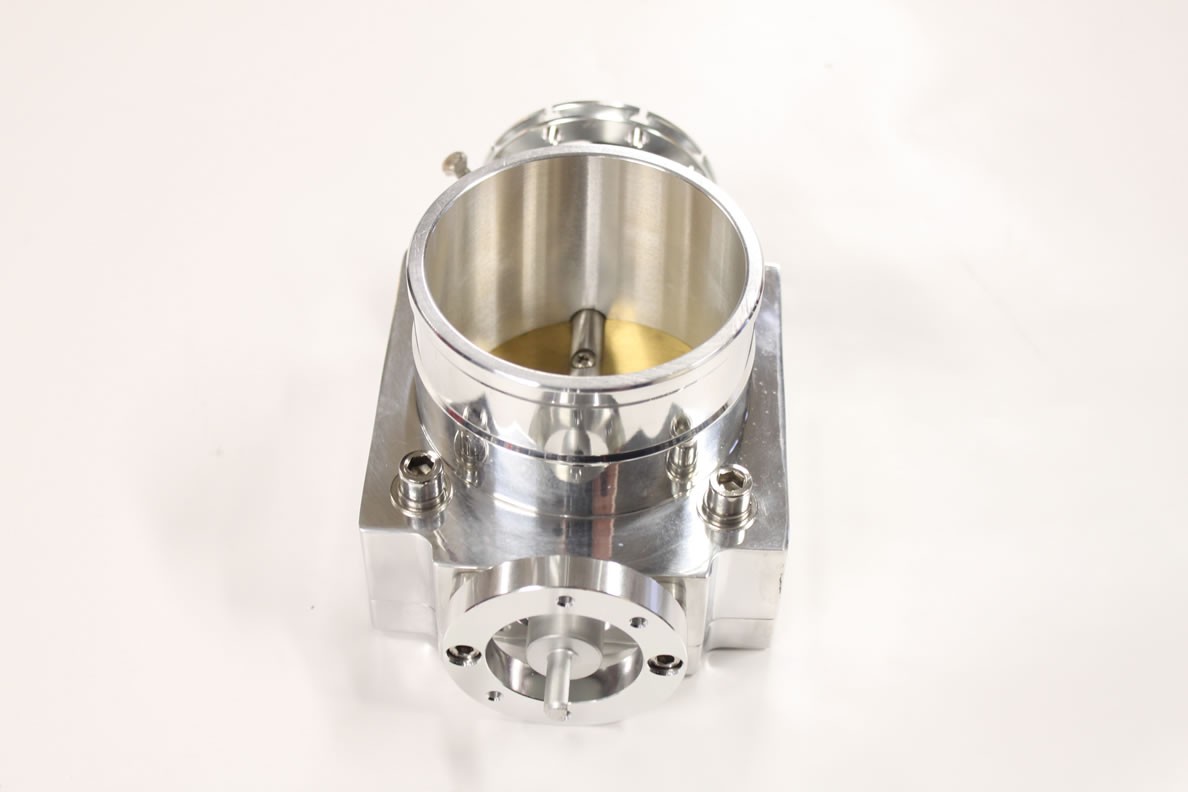

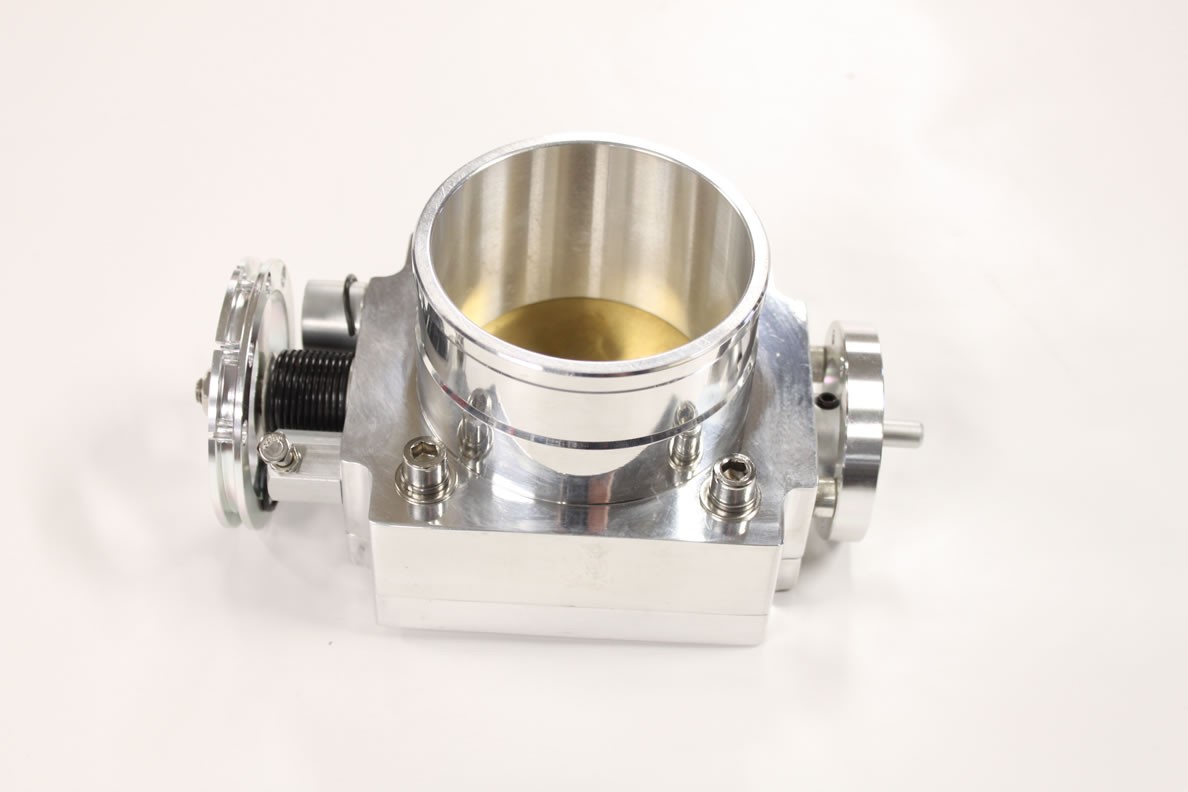

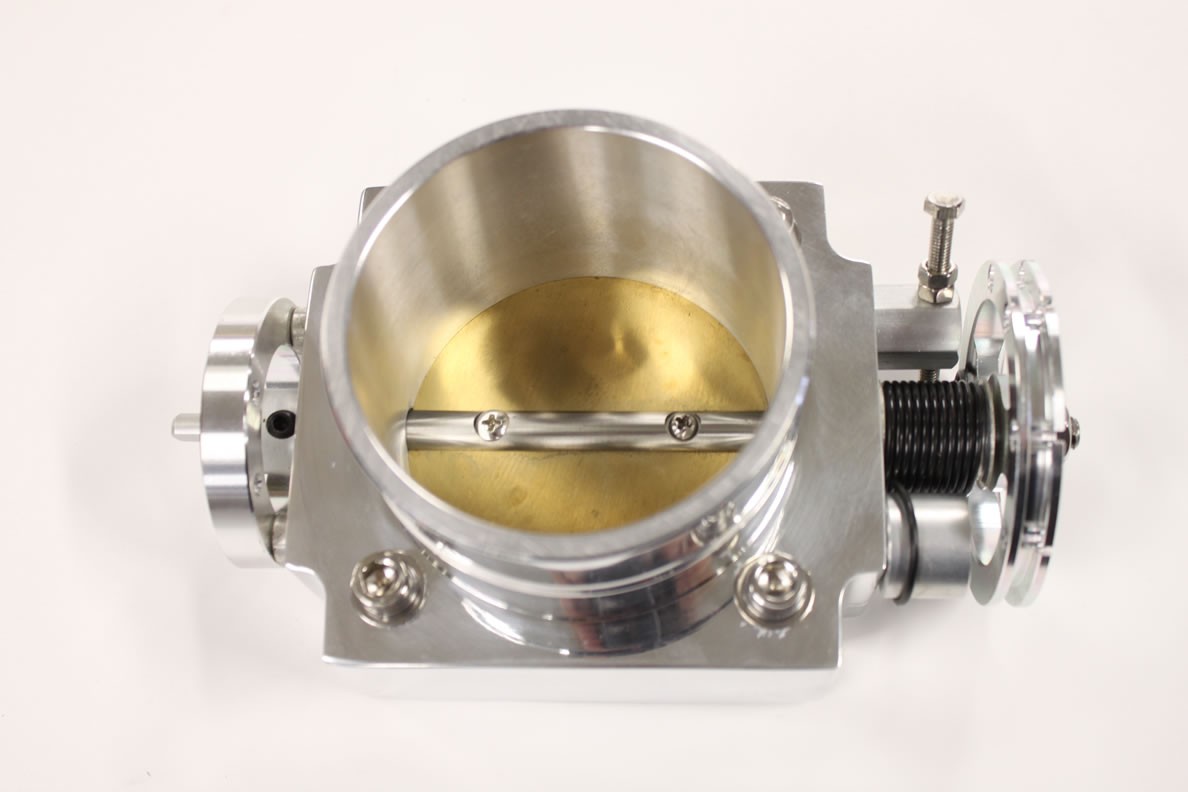

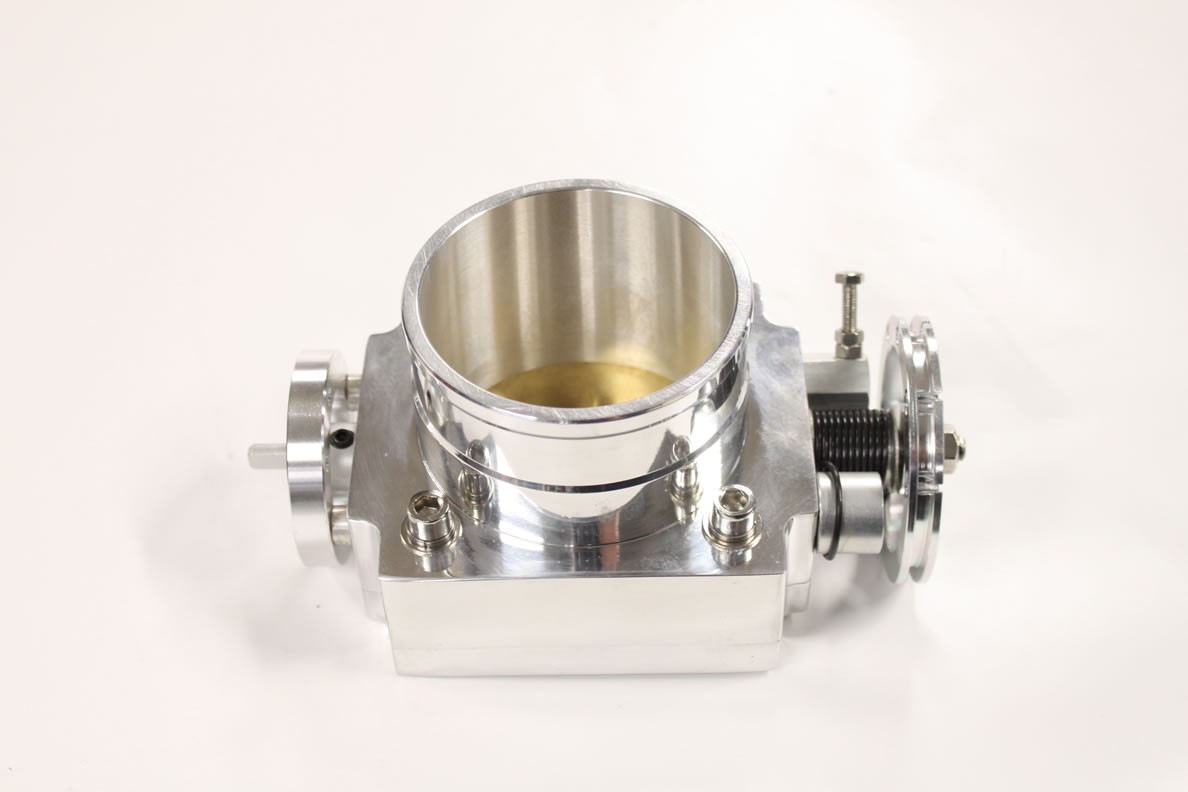

80MM Throttle Body Billet UNIVERSAL
80MM Throttle body, flange for welding included. To be used universally in home construction.
Artnr: TB-013(80MM)
Stock Status: 4-5 Day delivery time
4-5 Day delivery time
Description
80MM Throttle body, flange for welding included. To be used universally when building at home.
Throttle: brass
Throttle size: 80mm
Hose connection: 88mm
Length: 79mm +14 mm welding plate (Total 93mm)
CC_dimensions between bolt holes: 78x79mm
CC dimension diagonal 111mm
(Dimension tolerances +- 1mm)
Aluminum welding plate for welding in the intake included
Turned from a piece of ´billet´
The throttle shaft fits the Bosch std sensor, however the bolt holes do not fit, it is possible to turn a bracket for the sensor itself as this is screwed into the throttle body
or buy this: https://www.h2mracing.se/motordelar-c-3119/spjallhus-c-3699/spjallage-tps-adapter-for-70-80-90mm-spjallhus-p-8551
These have a small leak in the bearings on the damper shaft.
When the damper is fully open, you can see about 11.5mm of this 'outside the welding plate'
