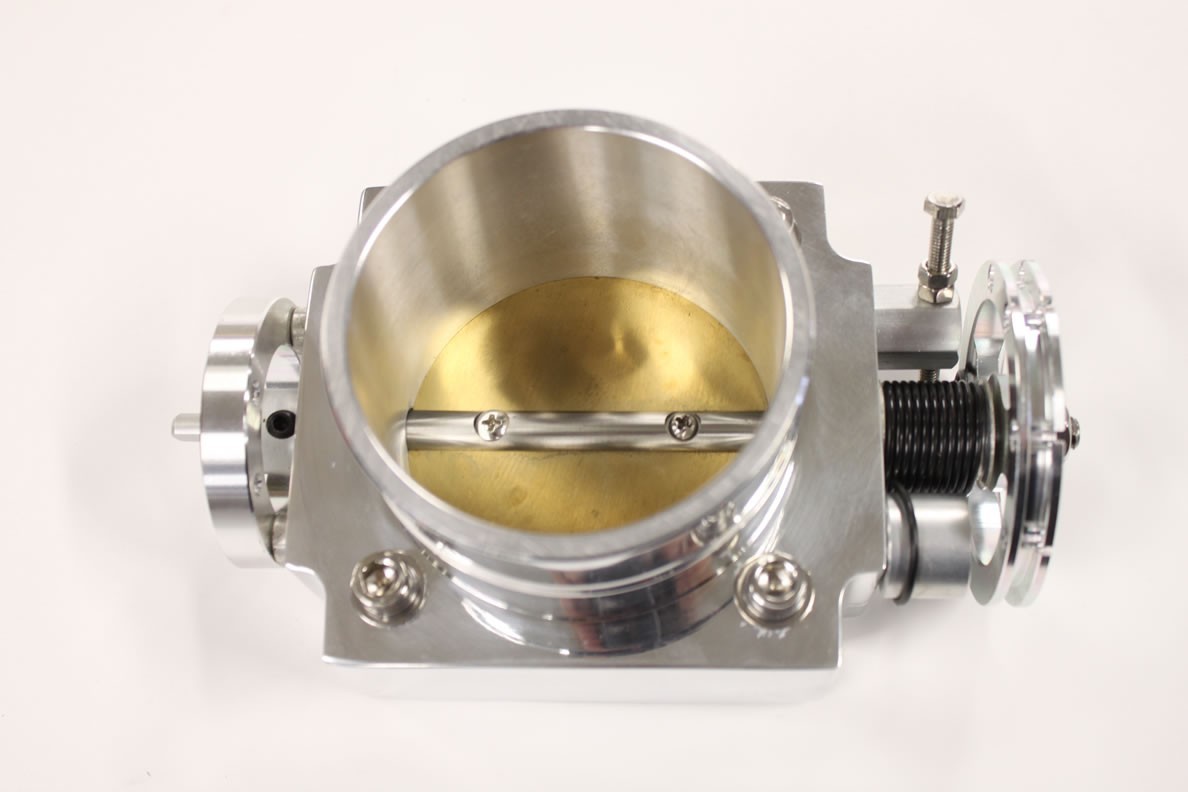

90MM Throttle Body for UNIVERSAL
Artnr: TB-018(90MM)
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
90MM Throttle body, flange for welding included.
Can be used universally for home construction.
damper: brass
damper size: 90mm
Hose connection: 100mm
(4´ hose)
Length: 80mm + 18mm welding plate 98mm total
CC-dimensions between bolt holes: 86x90mm
CC-dimensions diagonally 124.5mm
(Dimension tolerances +- 1mm)
aluminum welding plate for welding in the intake included
Turned from a piece of ´billet´
damper: brass
damper size: 90mm
Hose connection: 100mm
(4´ hose)
Length: 80mm + 18mm welding plate 98mm total
CC-dimensions between bolt holes: 86x90mm
CC-dimensions diagonally 124.5mm
(Dimension tolerances +- 1mm)
aluminum welding plate for welding in the intake included
Turned from a piece of ´billet´
The throttle shaft fits the Bosch std sensor, however the bolt holes do not fit, it is possible to turn a bracket for the sensor itself as this is screwed into the throttle body
or buy for this: https://www.h2mracing.se/motordelar-c-3119/spjallhus-c-3699/spjallage-tps-adapter-for-70-80-90mm-spjallhus-p-8551
These have a small leak in the bearings on the throttle shaft.
