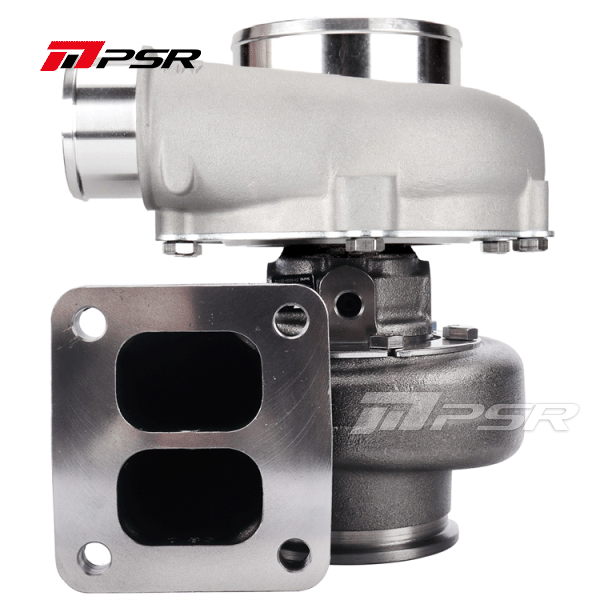

PSR 5455G, T4 Twin Entry, Dual Ball Bearing, 660HP

Equivalent to Garrett G30 in size.

Double ceramic ball bearings that provide optimal response and better durability by reducing lateral movement of the impeller shaft.

9 blade "G-Aero" Billet compressor wheel with "Extended Tapered Tip Technology"

9 blade "G-Aero" Inconel 713c turbine wheel

Anti-Surge inlet on the compressor part with integrated socket for speed sensor.

V-Band Flanges for the compressor and exhaust is included.

External wastegate must be fitted

Compressor wheel: 54*67mm

Turbine wheel: 60*55mm

Inlet compressor: 3"

Outlet compressor: 2″

Exhaust housing inlet: T4 Twin Entry

Exhaust housing outlet: 3″ V-Band

Water connections: 2xM14x1.5

Oil supply: AN4 with restrictor

Oil return: Standard T3 Oil return flange

Available in a multitude of different configurations. V-Band in, out, T25/T3 flanges, internal/external wastegate, various ARs, lots of exhausts etc!

Contact us for this and we can produce aggregates with the right config for you!
