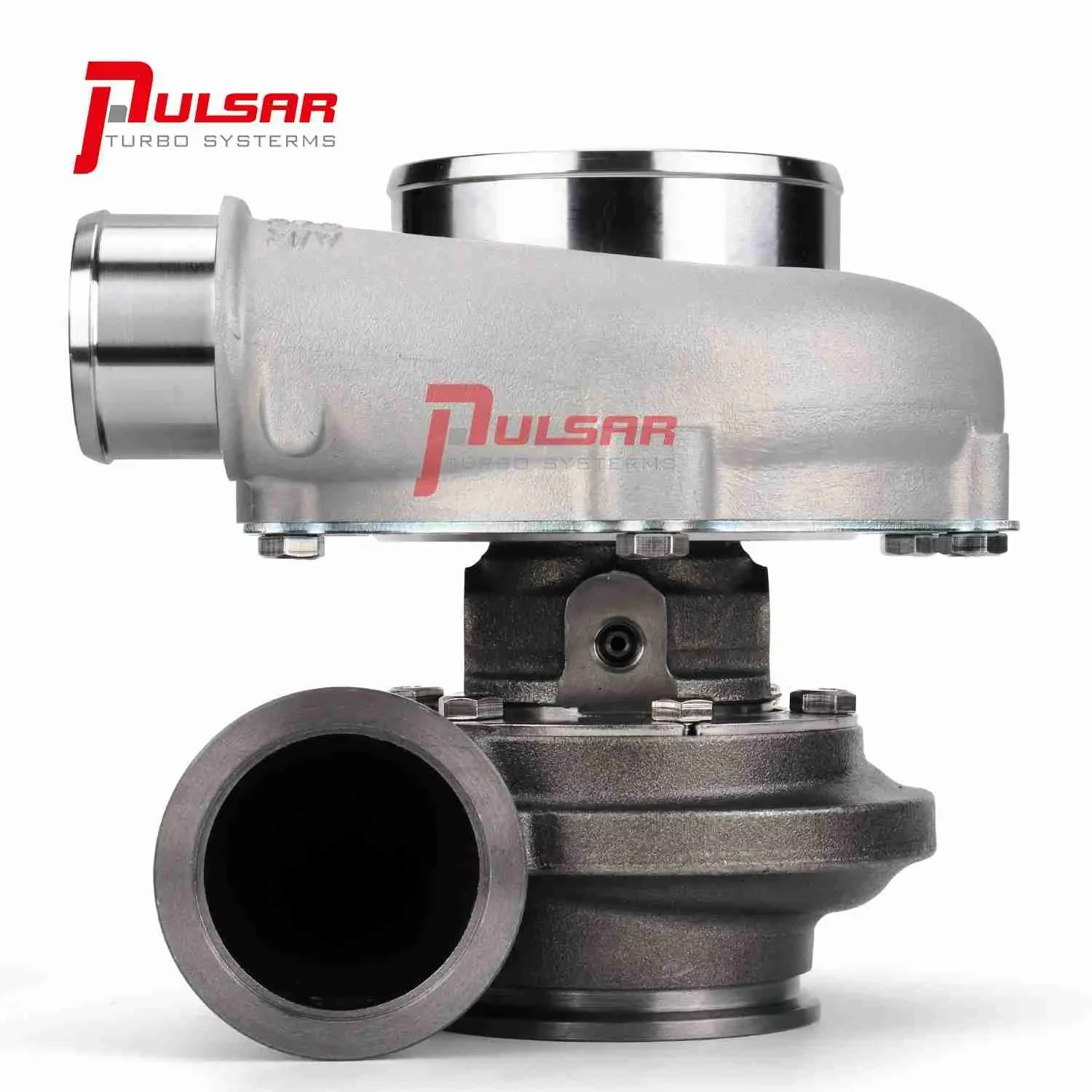

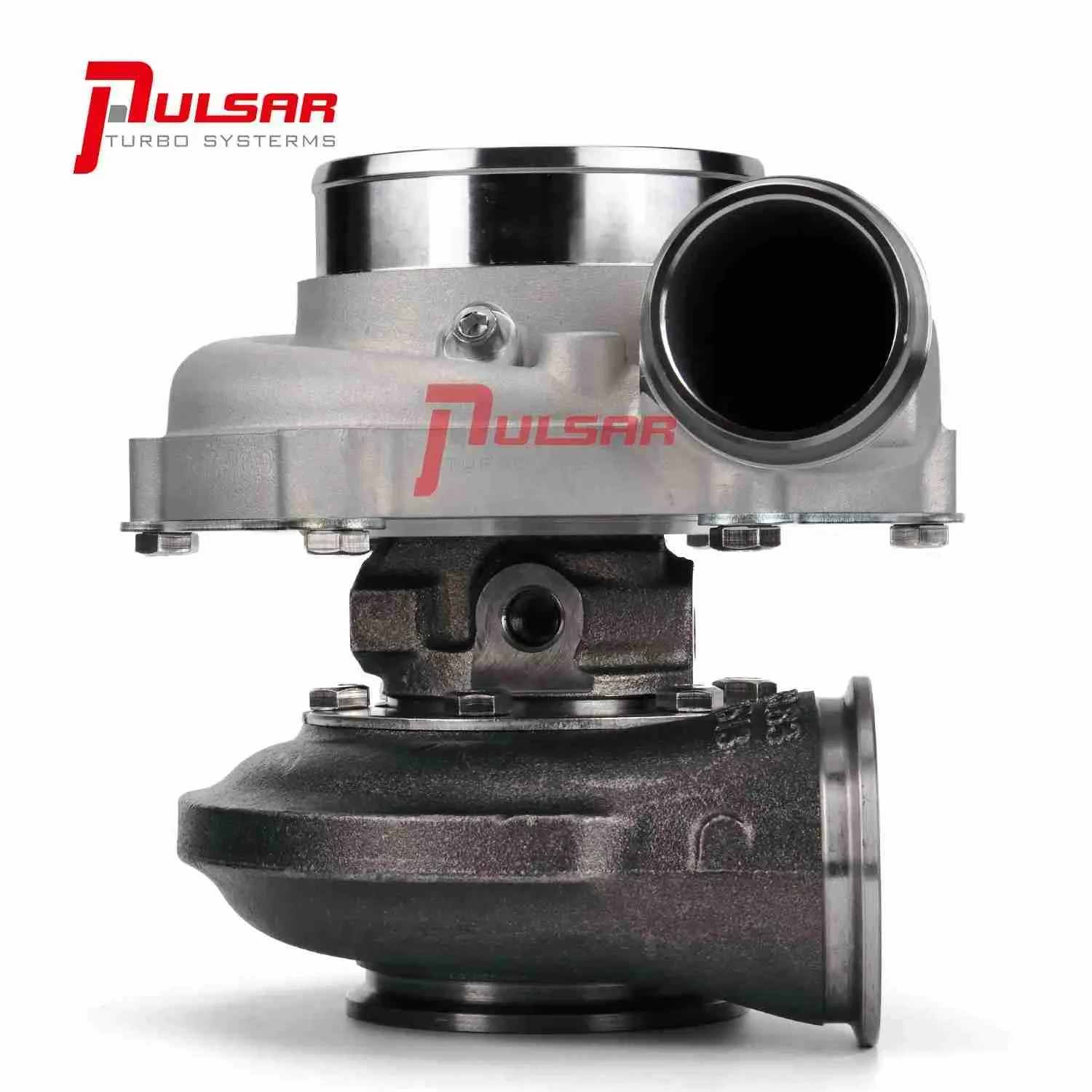

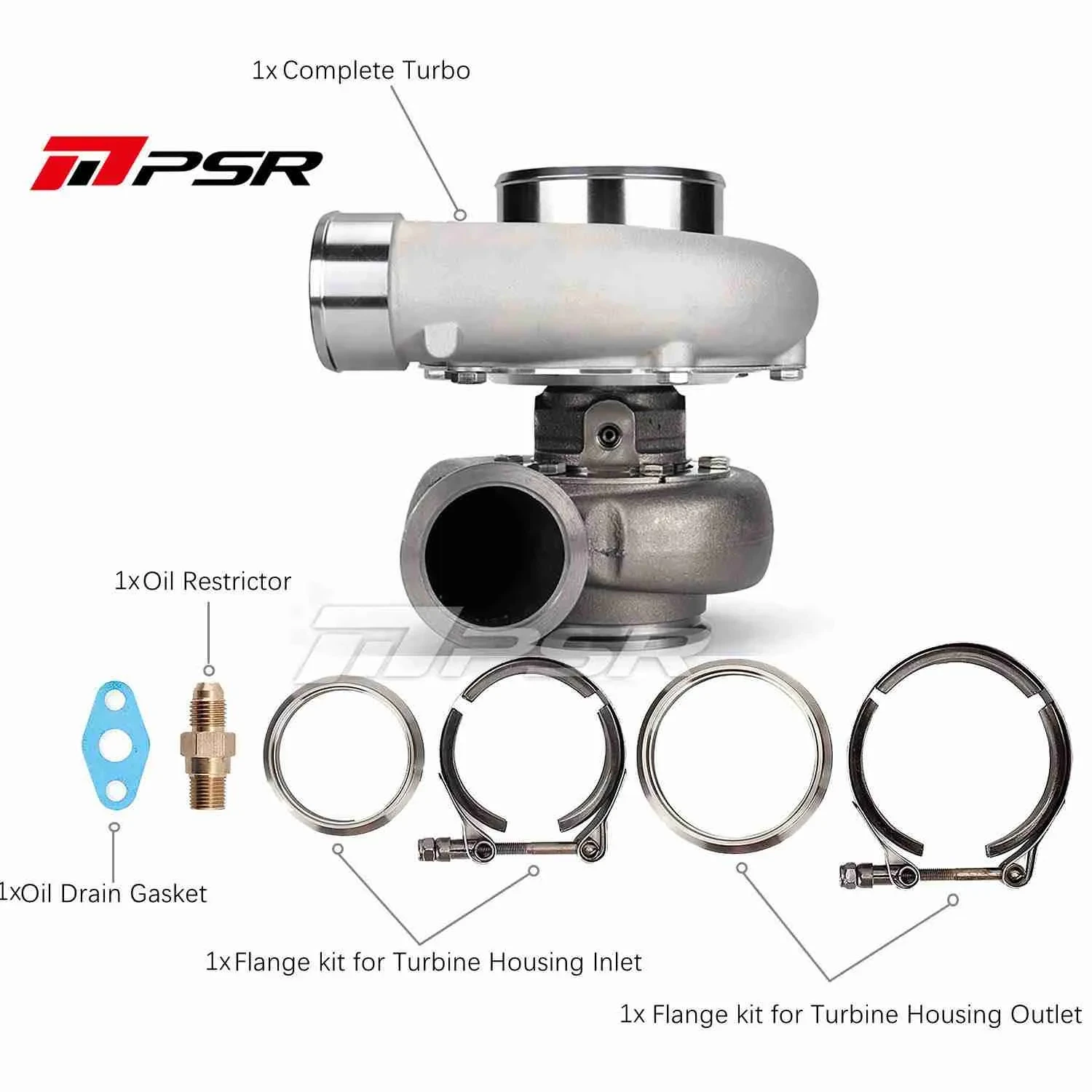

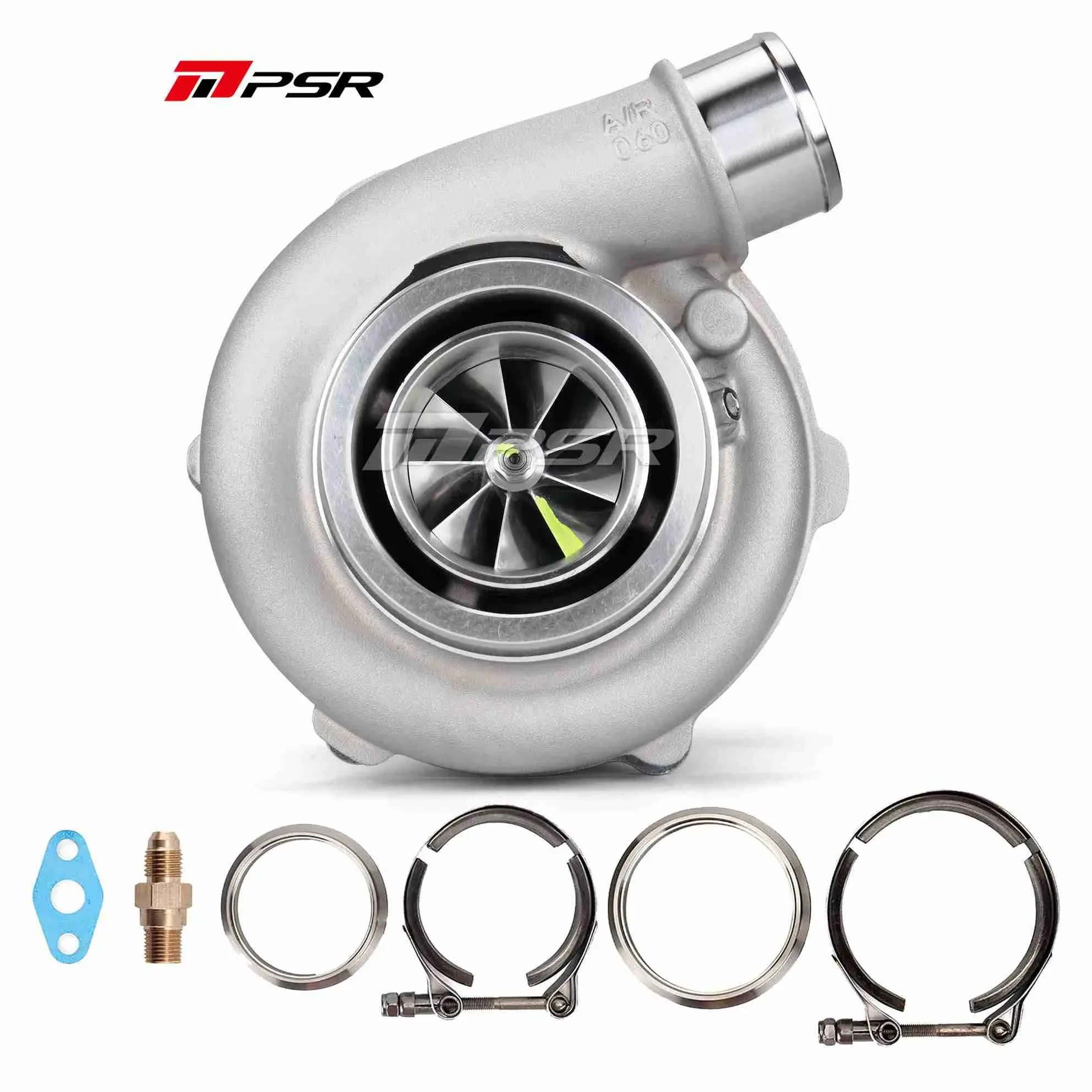

PSR3576 Gen2, AR 1.01, Ball Bearing, 750HP (copy)
Artnr: 102135779
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
Description
Exhaust housing with V-Band flanges and AR 1.01.
GT35 Sized Turbo
Dual ball bearing
9 Blade Gen2 billet compressor wheel with "Extended Tip Technology"
9 Blade turbine wheel in Inconel 713c with "RS" design profile
Socket for speed sensor
Rated for up to 750Hp
Compressor wheel: 58*76mm
Turbine wheel: 68*62mm
Inlet compressor: 4"
Outlet compressor: 2"
Exhaust manifold inlet: 2.5" V-band
Outlet Exhaust: 3" V-Band
Oil supply: AN4 with restrictor
Oil return: Standard T3 Return Flange
Water In/Out: M14x1.5
