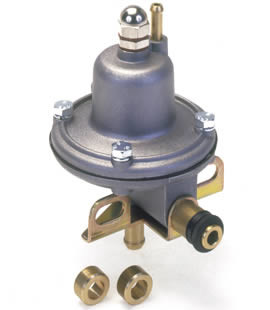

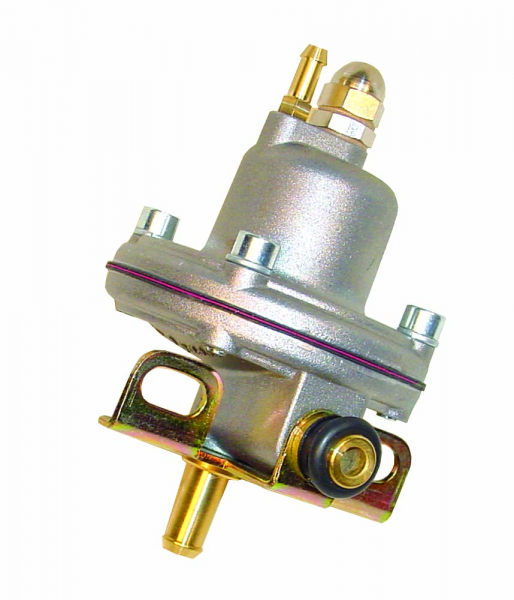

1:1 injection regulator 0-5bar O-ring connection
1:1 Linear.E85 Compatible! Pressure range 1-5 Bar. For injection cars. For universal mounting on Fuelrail. Connection to inlet O-ring connection, called 388 connection. Dimensions bolt pitch 47-55mm. O-ring placement 6mm (25mm without …
Artnr: AIR003
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
1:1 Linear.
E85 Compatible!
Pressure range 1-5 Bar. For injection cars.
For universal mounting on Fuelrail.
Connection to inlet O-ring connection,
called 388 connection.
Bolt pitch dimensions 47-55mm.
O-ring location 6mm (25mm without spacers) from the mounting flange.
O-ring diameter 15mm.
O-ring connection length 11mm.
Connection to outlet 8mm hose.
Popular for ethanol conversion.
Easy installation on the return line from the existing regulator.
You connect the regulator in series with the original regulator.
For those who want to remove the original regulator, for a slightly more professional installation and
the opportunity to return the car to original, there are conversion kits for all cars.
E85 Compatible!
Pressure range 1-5 Bar. For injection cars.
For universal mounting on Fuelrail.
Connection to inlet O-ring connection,
called 388 connection.
Bolt pitch dimensions 47-55mm.
O-ring location 6mm (25mm without spacers) from the mounting flange.
O-ring diameter 15mm.
O-ring connection length 11mm.
Connection to outlet 8mm hose.
Popular for ethanol conversion.
Easy installation on the return line from the existing regulator.
You connect the regulator in series with the original regulator.
For those who want to remove the original regulator, for a slightly more professional installation and
the opportunity to return the car to original, there are conversion kits for all cars.
