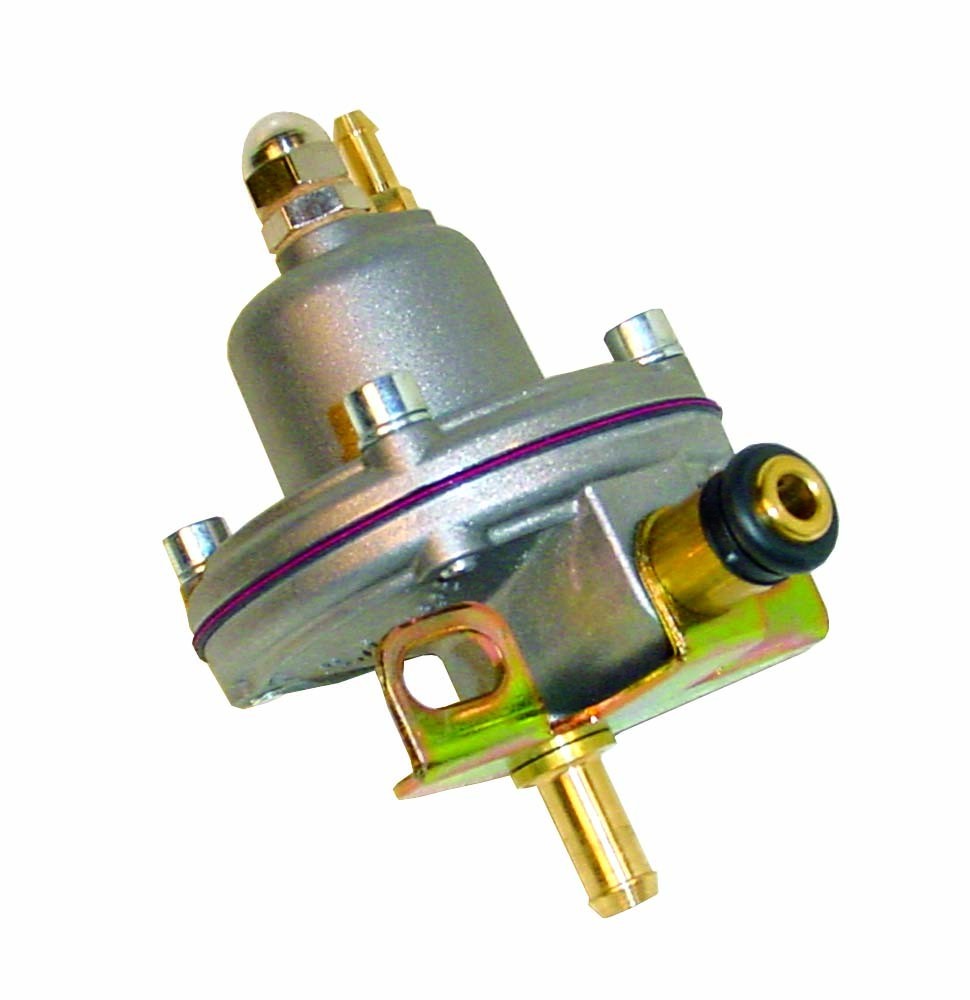

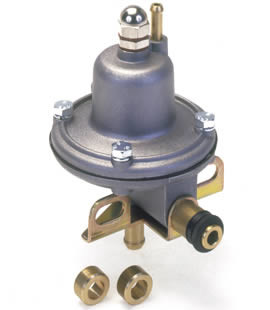

1:1 injection regulator 0-5bar O-ring connection Volvo etc
1:1 Linear.E85 Compatible! Pressure range 1-5 Bar. For injection cars. For universal mounting on Fuelrail. Fits directly on fuelrail on Volvo Saab etc. Connection on inlet O-ring connection, called 389 connection. Bolt pitch dimensions …
Artnr: AIR005
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
1:1 Linear.
E85 Compatible!
Pressure range 1-5 Bar. For injection cars.
For universal mounting on Fuelrail.
Fits directly on fuelrail on Volvo Saab etc.
Connection on inlet O-ring connection,
called 389 connection.
Bolt pitch dimensions 47-55mm.
O-ring location 24mm (31mm without spacers) from the mounting flange.
O-ring diameter 15mm.
Length of O-ring connection 11mm
Connection on outlet 8mm hose.
Popular for ethanol conversion.
Easy installation on the return line from the existing regulator.
You connect the regulator in series with the original regulator.
For those who want to remove the original regulator, for a slightly more professional installation and
the opportunity to return the car to original, there are conversion kits for all cars.
