Description

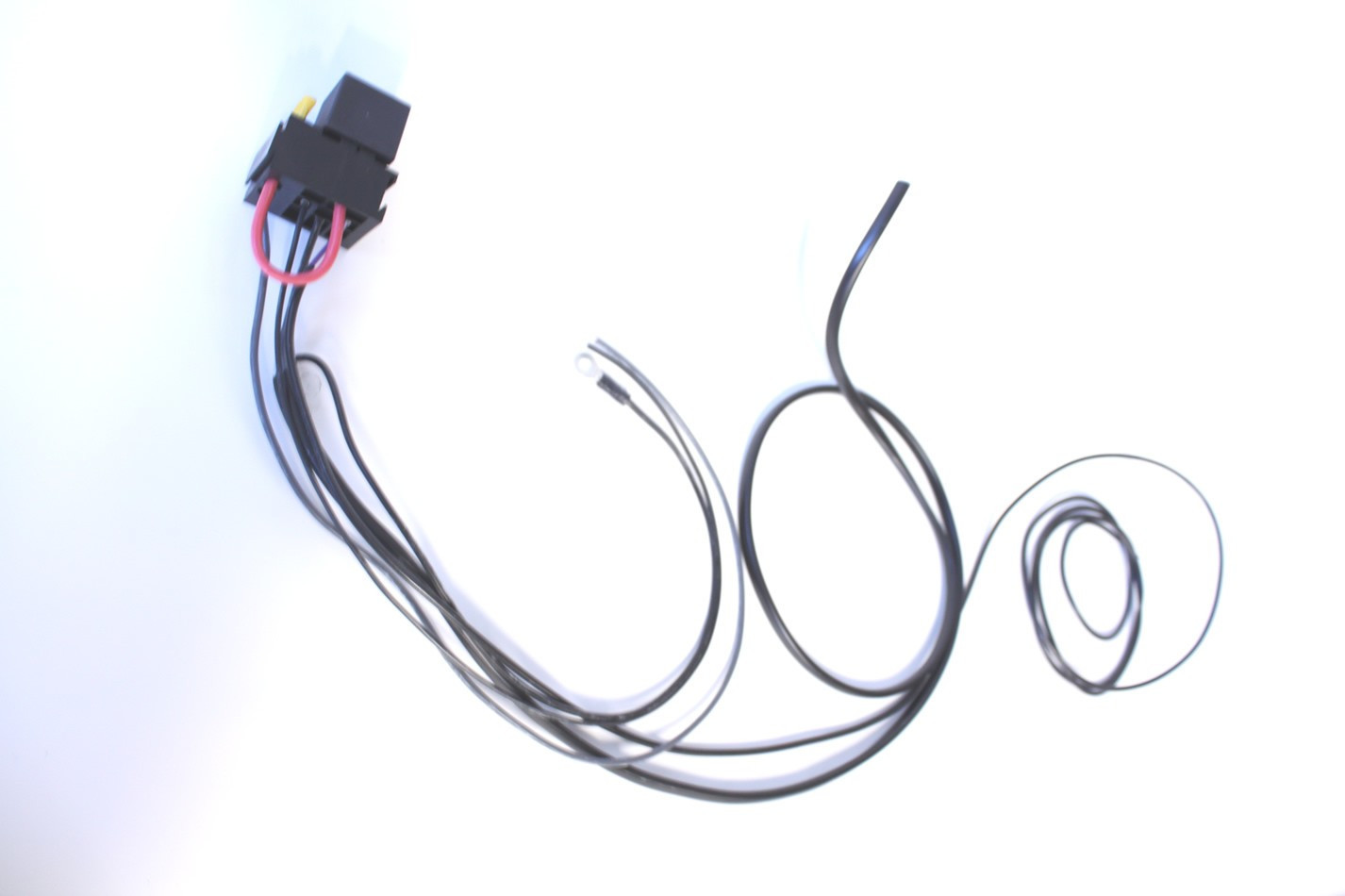

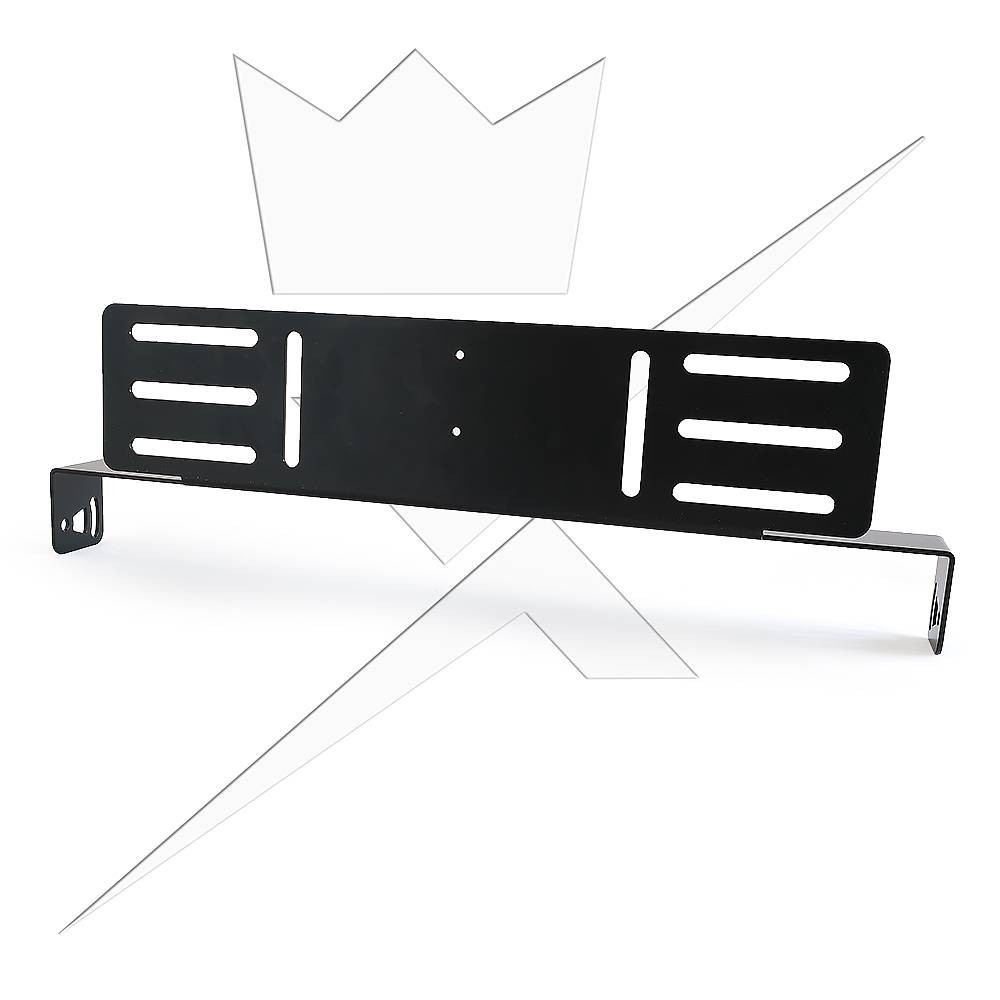

Complete package with recessed mounting of luxar x20 or x24 including relevant parts such as relay, brackets etc.

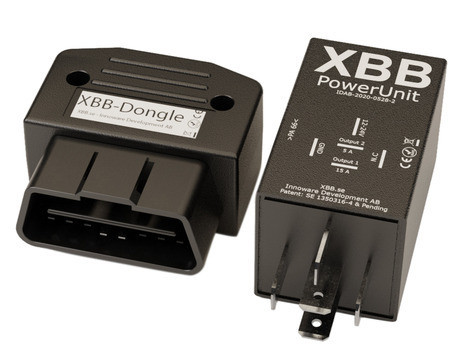

The price includes control with XBB Lightswitch Dongle which works on the most modern cars.
Select XBB module in the list to the right if you have a car with halogen or bi-xenon on high beam and control signal at the lamp.
Select the X20 or X24 ramp in the list to the right.
Read more about the ramp here: link
For booking with us, contact us via email, telephone, or via the contact form here on the website.
Please note that all our mounting packages can be combined with different types of controls, and may also need to change
A little in component version depending on how the car in question is designed.
This can then mean some price differences between different car models.
Technical Data

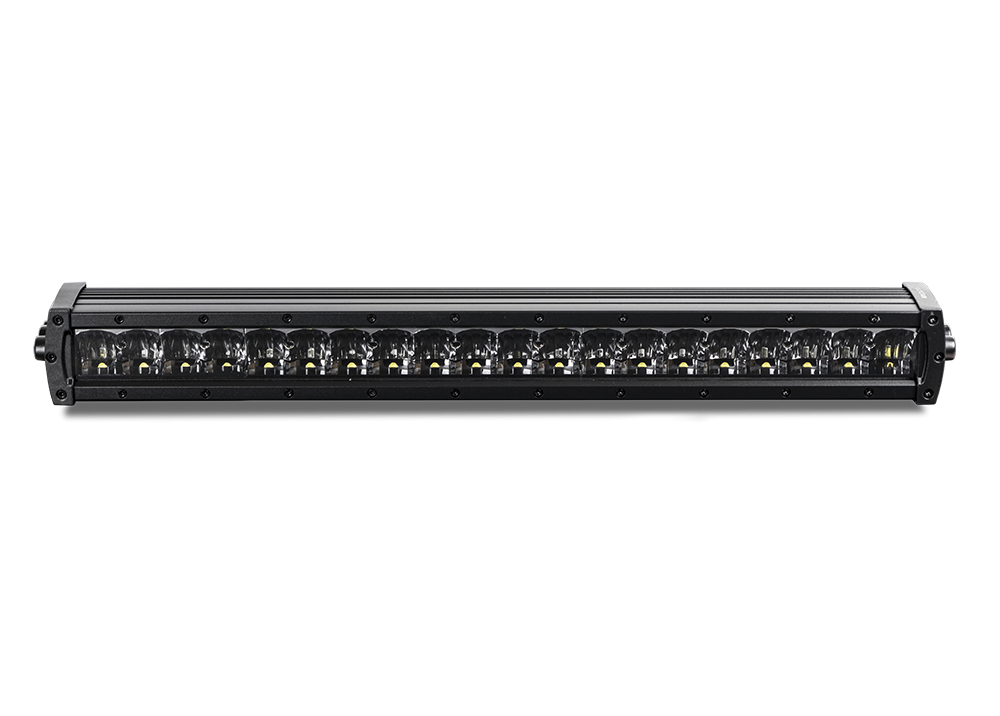

| X20 | |
|---|---|
| Specifikationer | |
| Ljusbild | Driving | Fjärr, Spot |
| Mått | 22" / 570x63x85 mm |
| LED | 20x 10W Cree XML2 |
| Teoretiska lumen | 12 450 |
| Faktiska lumen | 10 021 |
| Volt | 10-32V, multivolt |
| Strömförbrukning | 12V/12.1A | 24V/6.2A |
| Effekt | 151.2W |
| Kabel | 80 cm, 9006 kontakt (Hane ingår för skarvning) |
| Fäste | Bultfäste x3 (sidofästen finns som tillval utan extra kostnad) |
| Vikt | 3.2 kg |
| Fuktskydd | IP68 |
| E-märkt | Driving = Ja, Spot = Nej |
| X24 | |
| Mått | 27" / 674x63x85 mm |
| LED | 24x 10W Cree XML2 |
| Teoretiska lumen | 14 784 |
| Faktiska lumen | 12 306 |
| Volt | 10-32V, multivolt |
| Strömförbrukning | 12V/14.8A, 24V/7.5A |
| Effekt | 177.6W |
| Kabel | 80cm, 9006 kontakt (hane ingår för skarvning) |
| Fäste | Bultfäste x4 |
| Vikt | 3.9 kg |
| Fuktskydd | IP68 |
| E-märkt | Nej |
