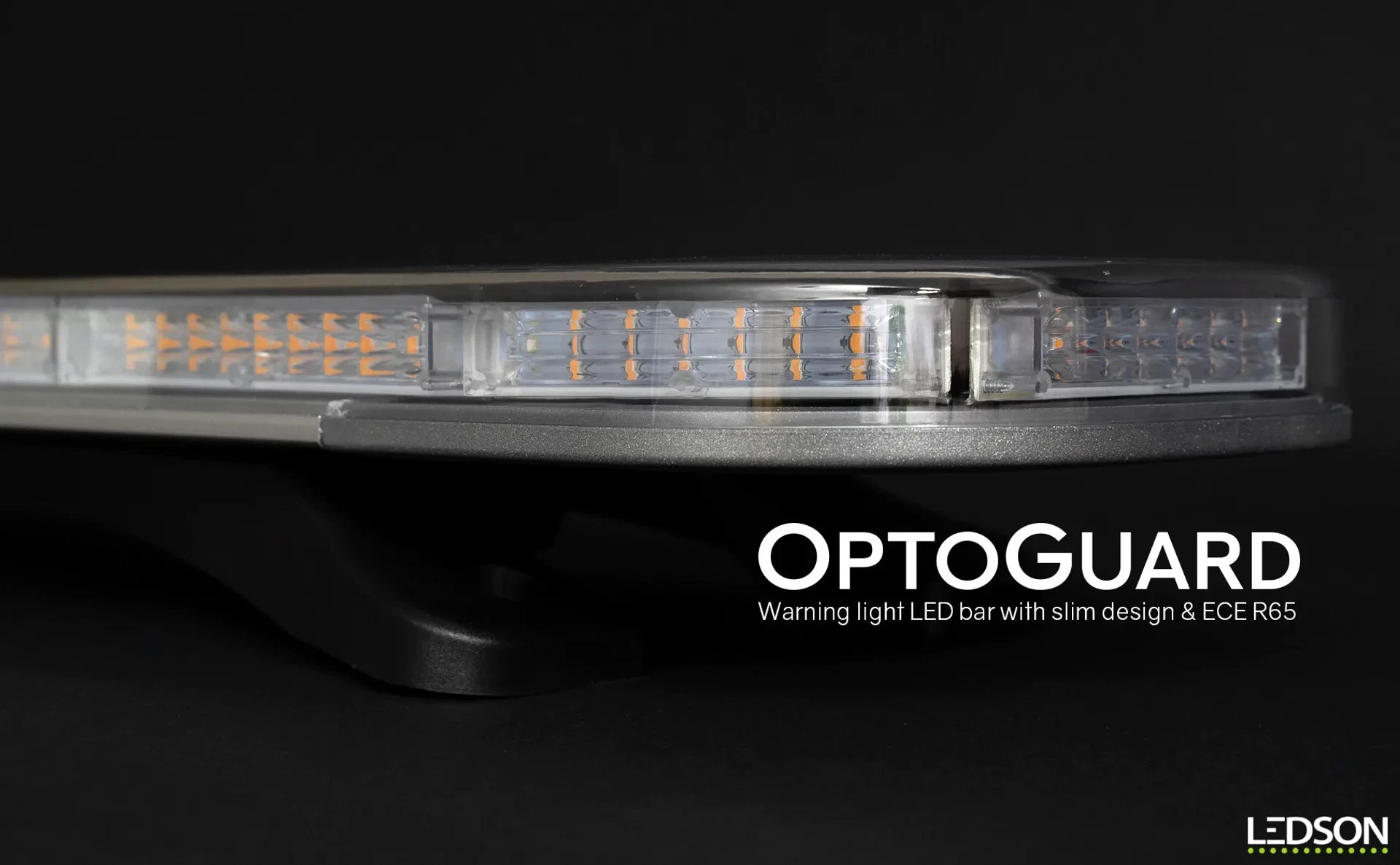

Flashing light bar LEDSON OptoGuard (ECE R65/R10) 843mm

Ledson OptoGuard Defender Strobe Light Bar (4-lead cable) ECE R65 class 2 - Modern, slim with a low profile (only 40 mm high + 210 mm wide), with strong 3W LEDs that make your warning light visible even during the day! Equipped with only one strobe light pattern, which is R65-approved class 2. Class 2 means that the strobe light bar has the option of two different brightness levels, one for daylight and one for evening/night. This is controlled via two separate cables.

The ramp is also EMC-protected according to ECE R10 and comes with a 36-month warranty!

Connection: This series is connected with a 4-wire cable and is controlled without a control box. This provides a very simple connection if you are only looking for a flashing light pattern and simple functionality.

Specifications:

E-marked: ECE R65 class 2 - Read more about E-marks here

EMC-secured: ECE R10

Stable aluminum chassis

Lens in clear, unbreakable polycarbonate plastic

Strong aluminum frame for good heat dissipation and stability

Well-thought-out design

Service-friendly with easily replaceable modules

Temperature range -30 to +60

Flash pattern: One (R65-approved class 2)

Number of LEDs: 108 to 216 pcs x 3W (depending on length)

Power: 324 W to 648 W (depending on length)

Glass color: Clear glass

LED color: Orange

Voltage: 9-33 V

IP rating IP67 (waterproof) - Read more about IP rating here

36 month warranty

Dimensions:

Length: 834 mm to 2022 mm (select length from the list)

Width: 210 mm

Height: 40 mm

Height (incl. feet): 90 mm

Cable length: 3 meters

Model-specific ceiling mounts are available for your strobe light bar, specially developed by us at Diodhuset with four mounting points on each side to fit Ledson Optoguard in an optimal way. This makes the mounting extra stable compared to universal mounts.

Model-specific brackets are available for the following car and truck models:

Ford Ranger 2011 and newer

Ford Transit 2014 and newer

Ford Transit Connect 2014 and newer

Ford Transit Custom 2013 and newer

MB Sprinter, Vito, V250

Scania 2017 and newer

Volvo FH4 ver. 4

VW Amarok from 2011 and newer

VW Caddy from 2004 and newer

VW Crafter / Nissan Navara

VW Transporter T5 / T6 2003 and newer

Universal for rails

Available as:

834 mm (art no. 5120083)

1132 mm (art no. 5120113)

1429 mm (art no. 5120143)

1726 mm (art no. 5120172)

2022 mm (art no. 5120202)
