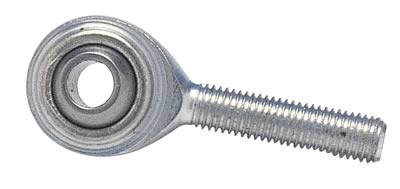

Ball joint 1/2 Right-hand thread Male
Artnr: SUM-MSM8
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
Ball Joint Thread: 1/2-20 Right Hand Thread UNF.
Ball Joint Mount: Male Thread
Ball Joint Construction: Two Piece
Ball Joint Style: Metal/Metal
Nut Included: Yes
Thread Length (Inches): 1.500 Inches.
Ball Joint Mounting Hole on Ball: 0.500 Inches.
Ball Joint Ball Diameter (Inches): 1.312 Inches.
Ball Joint Ball Width (Inches): 0.453 Inches.
Grease Nipple Mount: No
Ball Joint Centerline Length (Inches): 2.438 Inches.
Heat Hardened: No
Ball Joint Ball Width (Inches): 0.625 Inches.
Ball Joint Max Angle (Degrees): 17 Degrees
Ball Joint Static Max Load (lbs): 8,075 lbs.
Ball Joint Material: Steel
Ball Joint Mount: Male Thread
Ball Joint Construction: Two Piece
Ball Joint Style: Metal/Metal
Nut Included: Yes
Thread Length (Inches): 1.500 Inches.
Ball Joint Mounting Hole on Ball: 0.500 Inches.
Ball Joint Ball Diameter (Inches): 1.312 Inches.
Ball Joint Ball Width (Inches): 0.453 Inches.
Grease Nipple Mount: No
Ball Joint Centerline Length (Inches): 2.438 Inches.
Heat Hardened: No
Ball Joint Ball Width (Inches): 0.625 Inches.
Ball Joint Max Angle (Degrees): 17 Degrees
Ball Joint Static Max Load (lbs): 8,075 lbs.
Ball Joint Material: Steel
