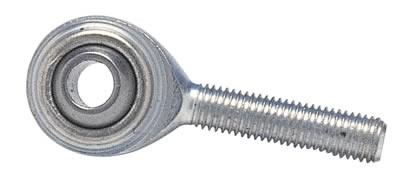

Ball joint 3/8 Left-hand thread Male
Artnr: SUM-MSML6
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
Ball Joint Thread: 3/8-24 Left Hand UNF.
Ball Joint Mount: Male Thread
Ball Joint Construction: Two Piece
Ball Joint Style: Metal/Metal
Nut Included: Yes
Thread Length (Inches): 1.250 Inches.
Ball Joint Mounting Hole on Ball: 0.375 Inches.
Ball Joint Ball Diameter (Inches): 1.0 Inches.
Ball Joint Ball Width (Inches): 0.359 Inches.
Grease Nipple Mount: No
Ball Joint Centerline Length (Inches): 1.938 Inches.
Heat Treated: No
Ball Joint Ball Width (Inches): 0.5 Inches.
Ball Joint Max Angle (Degrees): 19 Degrees
Ball Joint Static Max Load (lbs): 4,916 lbs.
Ball Joint Material: Steel
Ball Joint Mount: Male Thread
Ball Joint Construction: Two Piece
Ball Joint Style: Metal/Metal
Nut Included: Yes
Thread Length (Inches): 1.250 Inches.
Ball Joint Mounting Hole on Ball: 0.375 Inches.
Ball Joint Ball Diameter (Inches): 1.0 Inches.
Ball Joint Ball Width (Inches): 0.359 Inches.
Grease Nipple Mount: No
Ball Joint Centerline Length (Inches): 1.938 Inches.
Heat Treated: No
Ball Joint Ball Width (Inches): 0.5 Inches.
Ball Joint Max Angle (Degrees): 19 Degrees
Ball Joint Static Max Load (lbs): 4,916 lbs.
Ball Joint Material: Steel
