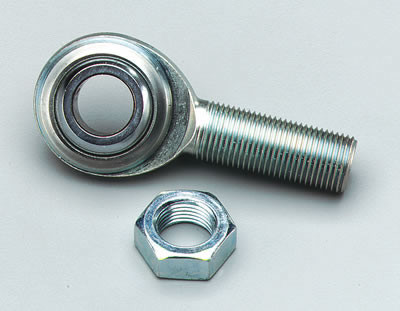

Ball joint 5/8 Right thread Male
Artnr: SUM-MSM10
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
Ball Joint Thread: 5/8-18 Right Hand Thread UNF.
Ball Joint Mount: Male Thread
Ball Joint Construction: Two Piece
Ball Joint: Metal / Metal
Nut Included: Yes
Thread Length (Inches): 1.625 Inches.
Ball Joint Mounting Hole on Ball: 0.625 Inches.
Ball Joint Ball Diameter (Inches): 1.500 Inches.
Ball Joint Ball Width (Inches): 0.484 Inches.
Grease Nipple Mount: No
Ball Joint Centerline Length (Inches): 2.625 Inches.
Heat Hardened: No
Ball Joint Ball Width (Inches): 0.750 Inches.
Ball Joint Max Angle (Degrees): 22 Degrees
Ball Joint Static Max Load (lbs): 9,509 lbs.
Ball Joint Material: Steel
Ball Joint Mount: Male Thread
Ball Joint Construction: Two Piece
Ball Joint: Metal / Metal
Nut Included: Yes
Thread Length (Inches): 1.625 Inches.
Ball Joint Mounting Hole on Ball: 0.625 Inches.
Ball Joint Ball Diameter (Inches): 1.500 Inches.
Ball Joint Ball Width (Inches): 0.484 Inches.
Grease Nipple Mount: No
Ball Joint Centerline Length (Inches): 2.625 Inches.
Heat Hardened: No
Ball Joint Ball Width (Inches): 0.750 Inches.
Ball Joint Max Angle (Degrees): 22 Degrees
Ball Joint Static Max Load (lbs): 9,509 lbs.
Ball Joint Material: Steel
Uniball Ball Joints
