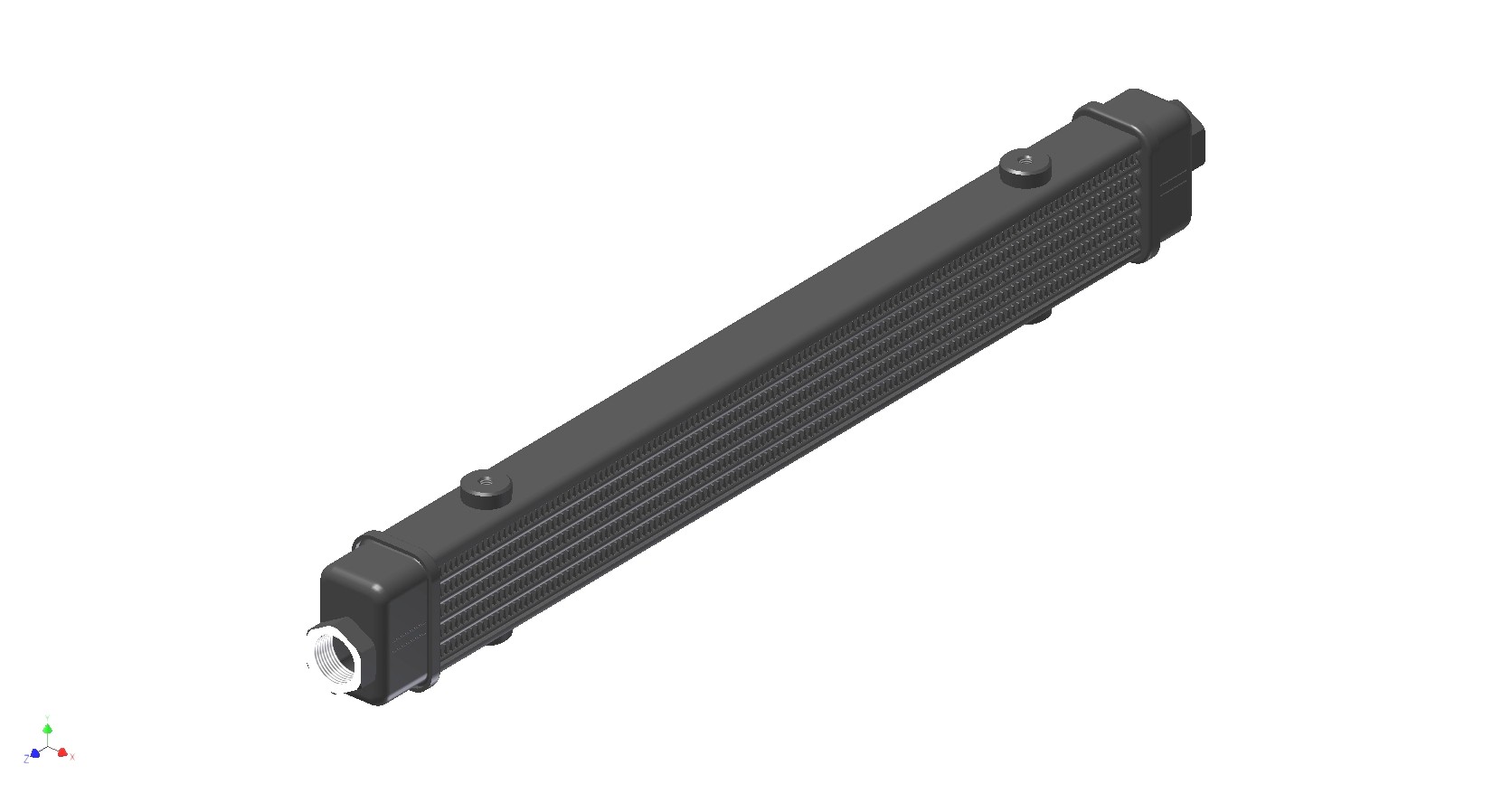

Setrab Oil Cooler 6 Rows 420MM
Swedish-made oil cooler from Setrab made of aluminum painted in black epoxy paint. The cooler has high cooling effect and can withstand a working pressure of up to 8 bar. SlimLine is a new series of coolers from Setrab with only 31mm thick cell pack! …
Artnr: 6-53-10746
Stock Status: 1-3 Days delivery time
The product is ordered per order.
Description
Swedish-made oil cooler from Setrab made of aluminum painted in black epoxy paint. The cooler has high cooling effect and can withstand a working pressure of up to 8 bar. SlimLine is a new series of coolers from Setrab with only 31mm thick cell pack! Oil cooler developed to cool oil from both engines and automatic transmissions.
Number of rows: 6
Connections: M22 internal, if you want a different thread, see the category Mounting
Width (A): 420mm
Total width (B): 483mm
Height (C): 53mm
Total height (D): 67mm

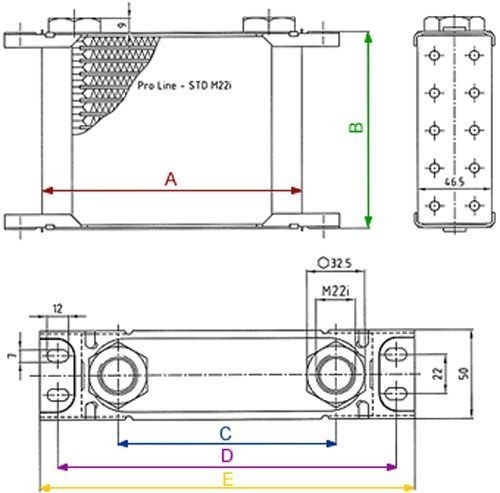

* Dimensions A to D are marked on the picture drawing.
** Max 4Nm Tightening torque for the connections, use assembly grease
