Description
Ignition amplifier
triple channel For control of up to 3 ignition coils 5/6cyl Wasted Spark/ Direct control of 3 coils
Ignition module for ignition coils that lack built-in ignition stages where the engine control does not have built-in ignition stages (MaxxECU, Nira etc.)

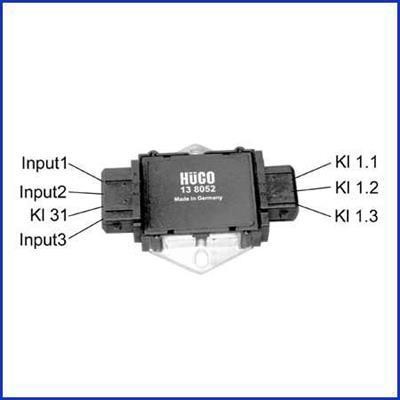

4-pin connector:
1: IGN3 in
2: GND
3: IGN2
4: IGN1 in
3-pin connector:
1: IGN1 out
2: IGN2 out
3: IGN3 out
