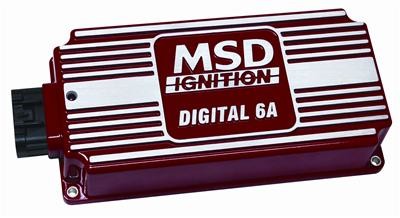

MSD 6A Digital Ignition System
Artnr: MSD-6201
Stock Status: 1-1.5 Weeks Delivery Time
1-1.5 Weeks Delivery Time
Description
MSD 6A,
Digital, Capacitive Discharge,
Universal, for switch or switchless ignition modules.
Provides multi-spark up to 3000rpm
115 millijoule spark energy.
Combine with original ignition coil or blaster 2 coil from MSD.
Increases power significantly if you run with high compression or Turbo as it is more difficult for the spark plugs to ignite under high pressure.
Rev Limiter: No
Timing Retard: None
CD Voltage Output to Coil: 520-540 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 135-145 Millijoules
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 15 V
Length (in): 8.000 in.
Height (in): 2.250 in.
Width (in): 4.000 in.
Ignition Box Color: Red
Notes: Even-fire only on V6.
Digital, Capacitive Discharge,
Universal, for switch or switchless ignition modules.
Provides multi-spark up to 3000rpm
115 millijoule spark energy.
Combine with original ignition coil or blaster 2 coil from MSD.
Increases power significantly if you run with high compression or Turbo as it is more difficult for the spark plugs to ignite under high pressure.
Rev Limiter: No
Timing Retard: None
CD Voltage Output to Coil: 520-540 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 135-145 Millijoules
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 15 V
Length (in): 8.000 in.
Height (in): 2.250 in.
Width (in): 4.000 in.
Ignition Box Color: Red
Notes: Even-fire only on V6.
