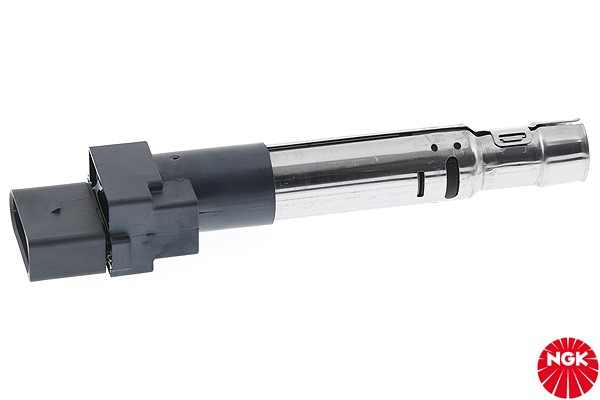

Ignition coil, Straight, Short model NGK
Straight V.A.G coil on plug coil from NGK. Same type as the 115E coils but with the connector straight up. Same connector though. There are two coils of this type. This is the slightly shorter model. Will handle up to 300hp per cylinder. Fits original …
Artnr: U5020
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description

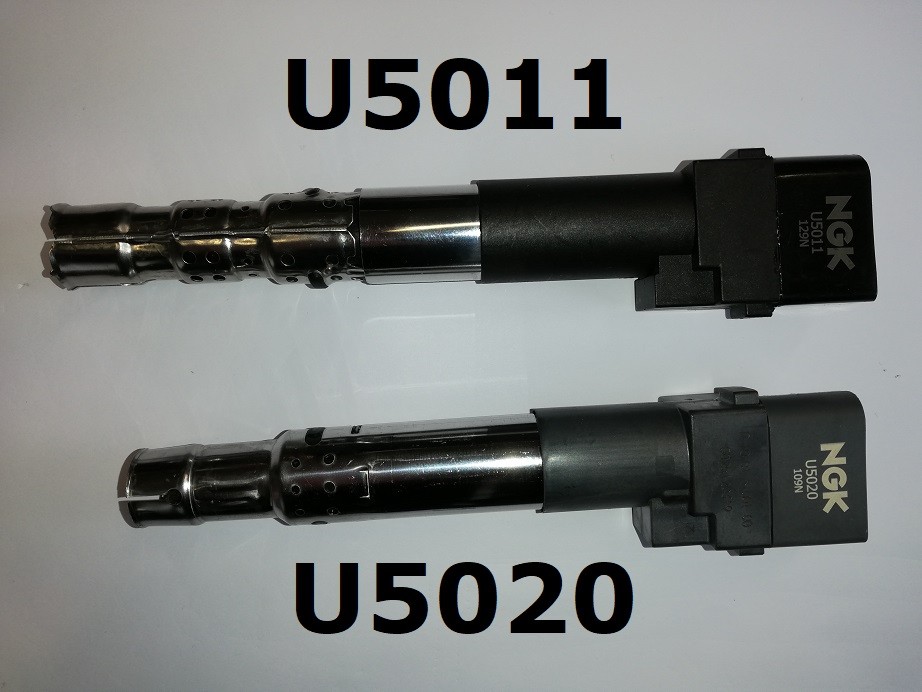

Straight V.A.G coil on plug coil from NGK. Same type as the 115E coils but with the connector straight up. Same connector piece though. There are two coils of this type. This is the slightly shorter model
Should handle up to 300hp per cylinder
Sits originally mounted on Golf MK5 R32, among others.
Distance from the end at the pin up to where the coil becomes square: 116mm
Total length of coil: 165mm
NOTE! Pinout is different from the regular vag coils!
Pin 1: Ground on engine
Pin 2: Common ground near control box
Pin 3: 12v
Pin 4: ECU Signal
The pins are numbered down in the connector on the coil
Cranking dwell: 4-6ms
Running dwell: 2-3ms
