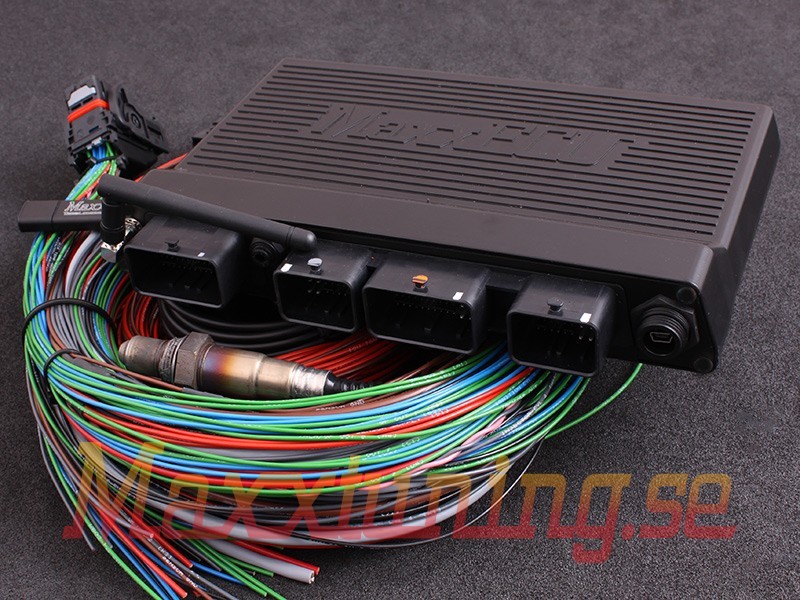

MaxxECU PRO Standard

FREE SHIPPING ON THIS ITEM!

MaxxECU PRO is a completely unique product, developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives you as a user total engine control!

Quick facts:

-Controls up to 12 cylinders sequentially.

-16 injector outputs (low and high ohm injectors)

-12 ignition outputs

-12 exhaust gas temperature (EGT) sensor inputs.

-Built-in MAP sensor for boost pressure up to 3bar (400Kpa).

-Built-in drivers for dual broadband lambda sensors (LSU 4.2 and 4.9)

-Dual E-Throttle support

-2 knock sensor inputs

-16 extra 0-5v inputs

-6 extra temperature inputs

-10 extra digital inputs (of which 4 can handle VR sensors)

-30 extra outputs (GPO), of which 8 are high-drive

-2 0-5v outputs

-1 5-10v output (for driving sensors)

-Dual CAN bus

-Waterproof aluminum case

-Connectors, software and settings fully backwards compatible with regular MaxxECU. Easy upgrade.

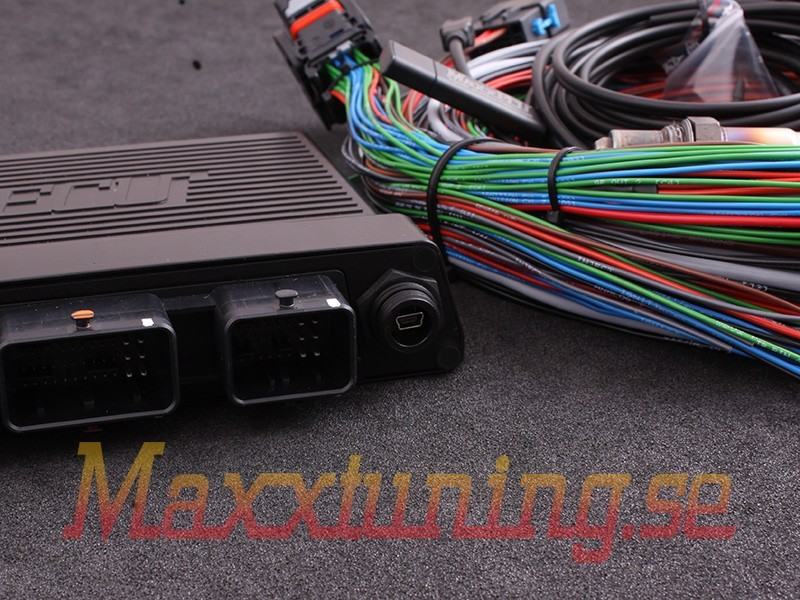

MaxxECU PRO Standard only includes cable harness 1 and has the following inputs/outputs:

-INJ 1-8

-IGN 1-8

-GPO 1-8

-WBO 1

-DIN 1-2

-AIN 1-4

-CLT, TPS, IAT

-Trigger + home

-CAN 1

No lambda sensors are included in this package!

For extended functions, this MaxxECU PRO must be supplemented with more cable harnesses.
