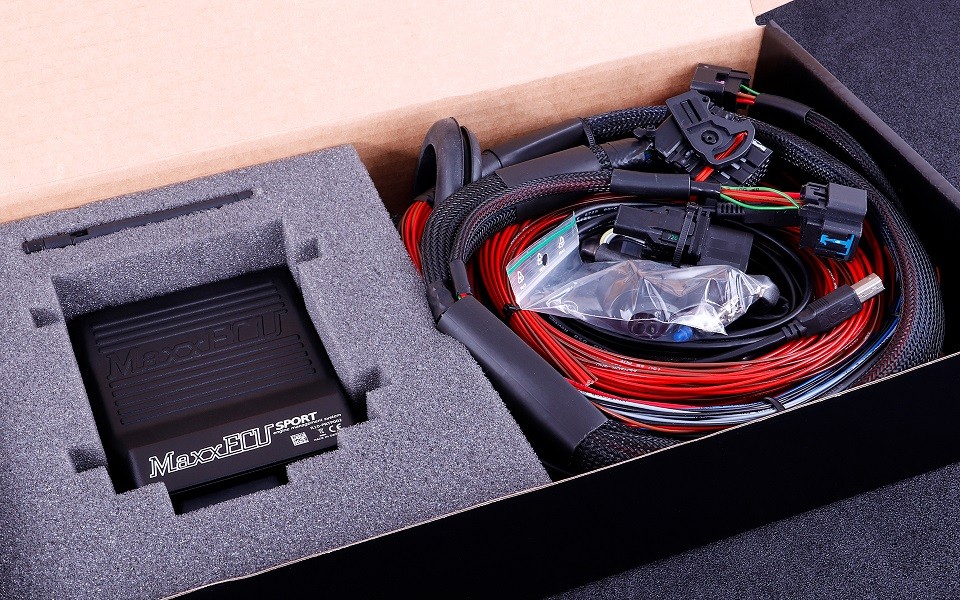

MaxxECU Sport Standard
Description
MaxxECU SPORT, based on the market-leading MaxxECU V1 and uses the same easy-to-use and powerful software to give you as a user total engine control!
Quick facts:
-Controls up to 6 cylinders sequentially (12 in wasted)
-Built-in MAP sensor for boost pressure up to 3bar (400Kpa).
-Built-in driver for broadband lambda (the probe directly into the wiring harness without external electronics).
-Super fast and secure USB communication between ECU and PC.
Technical spec:
-Bluetooth
-2 trigger inputs.
-IAT, TPS, CLT analog inputs.
-Built-in driver for broadband lambda (LSU 4.2 or 4.9).
-Built-in 400kPa MAP sensor.
-E-Throttle support
-2 extra analog temperature inputs.
-6 extra analog 0-5v inputs.
-2 extra digital inputs.
-6 injector outputs (high/low-ohm injectors).
-6 ignition outputs (without ignition stage).
-7 extra flexible outputs. GPO (2A).
-2 extra engine outputs. GPO 10-11 (2A)
-CAN bus
-Aluminum case
-MTune PC program with USB connection.
-Superfast Cortex M3 120Mhz main processor.
NOTE! The connector is NOT compatible with other MaxxECU units.
The standard package does not include a broadband lambda sensor!
